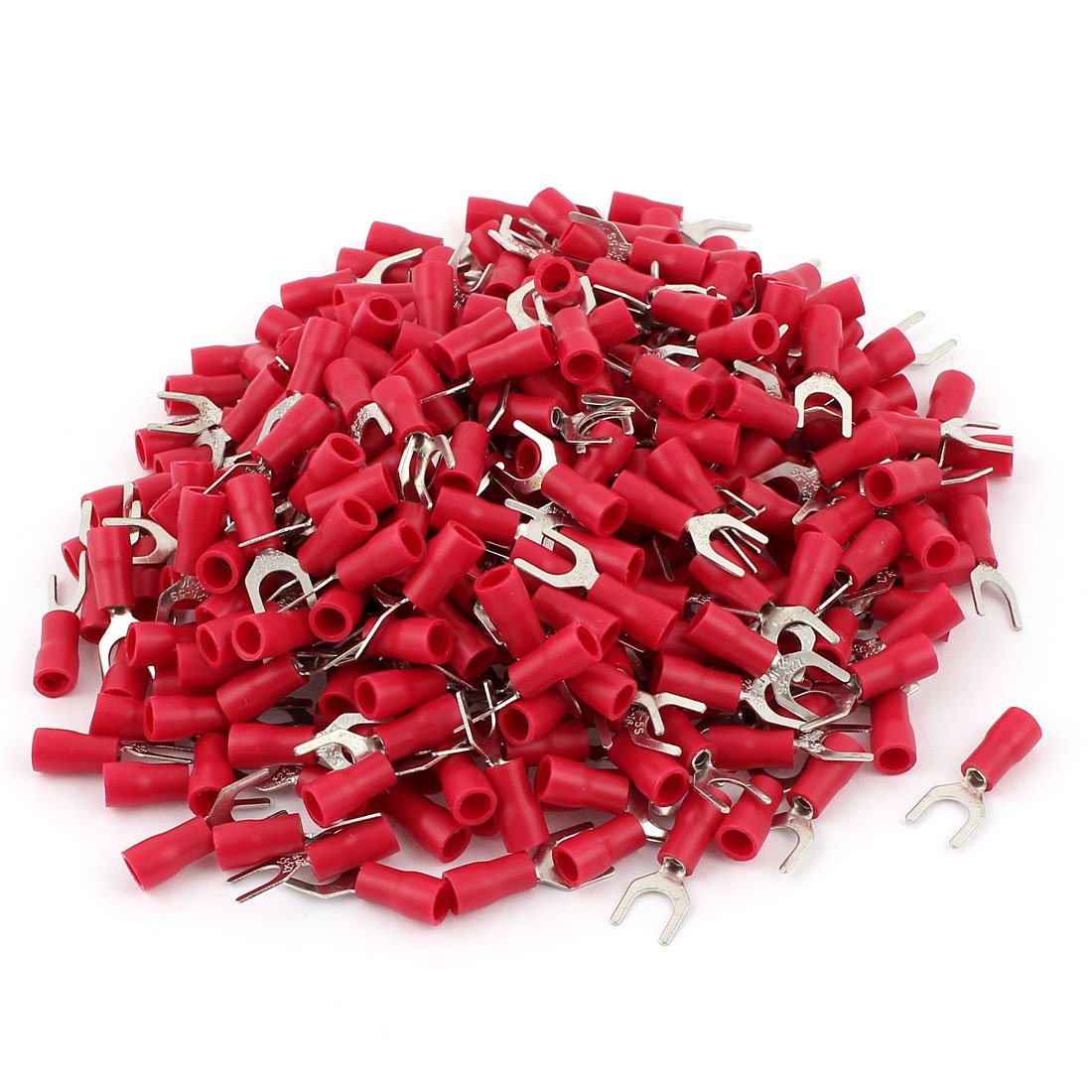

VS1.25-5 Pre Insulated Furcate Terminals for AWG22-16 Wire, Red

Key Features

• Product name insulated terminal, Type SVS 1.25-5, fit wire range 0.5-1.5mm2/A.W.G22-16
• Max. Current 19A, design furcate, material plastic, metal
• Wrap color red, terminal color Silver Tone, tip outer width 8mm/0.3 inch
• Fit for Bolt Diameter meter 5mm/0.2", tube inner D. 4mm/0.16", tube OD 5.5mm/0.22"
• Total Length 20mm/0.8 inch

Product Description

Furcate non-insulated terminal, easy to connect with electrical wire and strengthen its reliability and safety. Good insulation and electric conduction, is an ideal wire connector for the domestic appliance and other equipment's.
