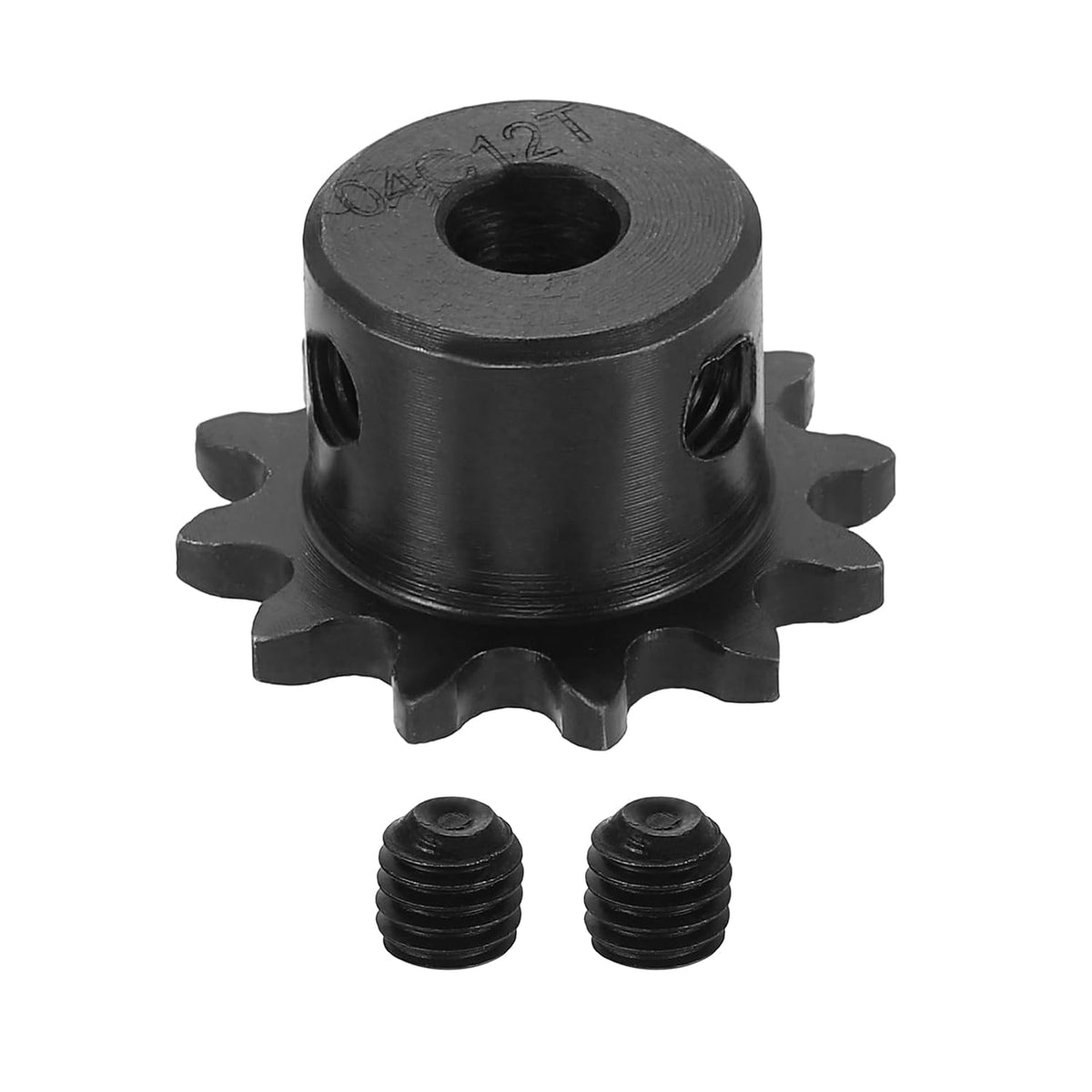

#25 Chain Roller Sprocket 6.35mm Bore 27.5mm OD, 12 Tooth C45 Carbon Steel ANSI #25 Roller Sprocket Round Hole with Set Screws for ISO 04C Chain, Black

Key Features

• Model #25 Roller Chain Sprocket B Type 12 Tooth, 6.35mm Bore, 6.35mm (1/4") Pitch, for ISO 04C Chain.
• Material The sprocket is made of C45 carbon steel with a full black oxide coating, which is rust-proof. The tooth part uses high-temperature quenching heat treatment, high hardness, wear resistance, a long service life, and is easy to use
• Design Each roller sprocket is equipped with strong teeth to lock the chain well. The round hole has set screws and forms a 90-degree angle with the set screw after installation, which can fix the shaft and prevent it from slipping
• Installation Chain Sprockets are normally mounted in a fixed position on a fixed shaft. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. It is suggested that chain sprockets have at least three teeth in mesh with the chain
• Wide Application Sprockets can be used in various industrial areas, especially in power transmission industrial machinery, such as milling machines, drilling machines, drilling rigs, or other mechanical transmission occasions

Product Description

Model: #25 Roller Chain Sprocket B Type 12 Tooth, 6.35mm Bore, 6.35mm (1/4") Pitch, for ISO 04C Chain. Material: The sprocket is made of C45 carbon steel with a full black oxide coating, which is rust-proof. The tooth part uses high-temperature quenching heat treatment, high hardness, wear resistance, a long service life, and is easy to use Design: Each roller sprocket is equipped with strong teeth to lock the chain well. The round hole has set screws and forms a 90-degree angle with the set screw after installation, which can fix the shaft and prevent it from slipping Installation: Chain Sprockets are normally mounted in a fixed position on a fixed shaft. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. It is suggested that chain sprockets have at least three teeth in mesh with the chain Wide Application: Sprockets can be used in various industrial areas, especially in power transmission industrial machinery, such as milling machines, drilling machines, drilling rigs, or other mechanical transmission occasions ›
