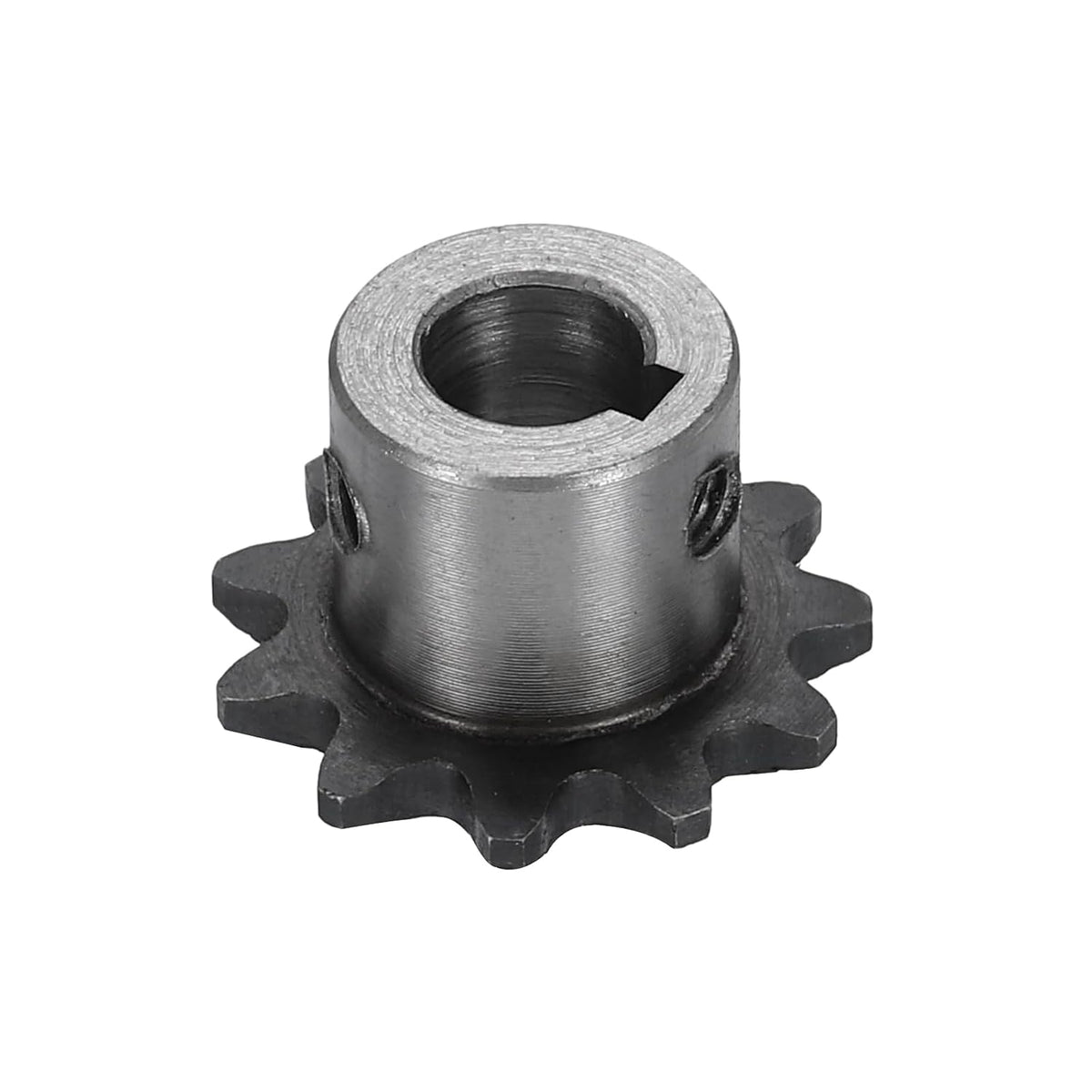

#25 Chain Roller Sprocket 8mm Bore 25.5mm OD, 11 Tooth C45 Carbon Steel ANSI #25 Roller Sprocket Round Hole Without Surface Finished with 3x1.4mm Keyway for ISO 04C Chain

Key Features

• Model #25 Roller Chain Sprocket B Type 11 Tooth, 8mm Bore, 6.35mm (1/4") Pitch, 3x1.4mm(0.12"x0.06") Keyway, for ISO 04C Chain.
• Material The sprocket is made of C45 carbon steel, which is rust-proof. The tooth part uses high-temperature quenching heat treatment, high hardness, wear resistance, a long service life, and is easy to use
• Design Each roller sprocket is equipped with strong teeth to lock the chain well. There are round holes for installing set screws that form a 90-degree angle with the set screw after installation, which can fix the shaft and prevent it from slipping. （Set screws are not included in the package）
• Installation Chain Sprockets are normally mounted in a fixed position on a fixed shaft. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. It is suggested that chain sprockets have at least three teeth in mesh with the chain
• Wide Application Sprockets can be used in various industrial areas, especially in power transmission industrial machinery, such as milling machines, drilling machines, drilling rigs, or other mechanical transmission occasions

Product Description

Model: #25 Roller Chain Sprocket B Type 11 Tooth, 8mm Bore, 6.35mm (1/4") Pitch, 3x1.4mm(0.12"x0.06") Keyway, for ISO 04C Chain. Material: The sprocket is made of C45 carbon steel, which is rust-proof. The tooth part uses high-temperature quenching heat treatment, high hardness, wear resistance, a long service life, and is easy to use Design: Each roller sprocket is equipped with strong teeth to lock the chain well. There are round holes for installing set screws that form a 90-degree angle with the set screw after installation, which can fix the shaft and prevent it from slipping. （Set screws are not included in the package） Installation: Chain Sprockets are normally mounted in a fixed position on a fixed shaft. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. It is suggested that chain sprockets have at least three teeth in mesh with the chain Wide Application: Sprockets can be used in various industrial areas, especially in power transmission industrial machinery, such as milling machines, drilling machines, drilling rigs, or other mechanical transmission occasions ›
