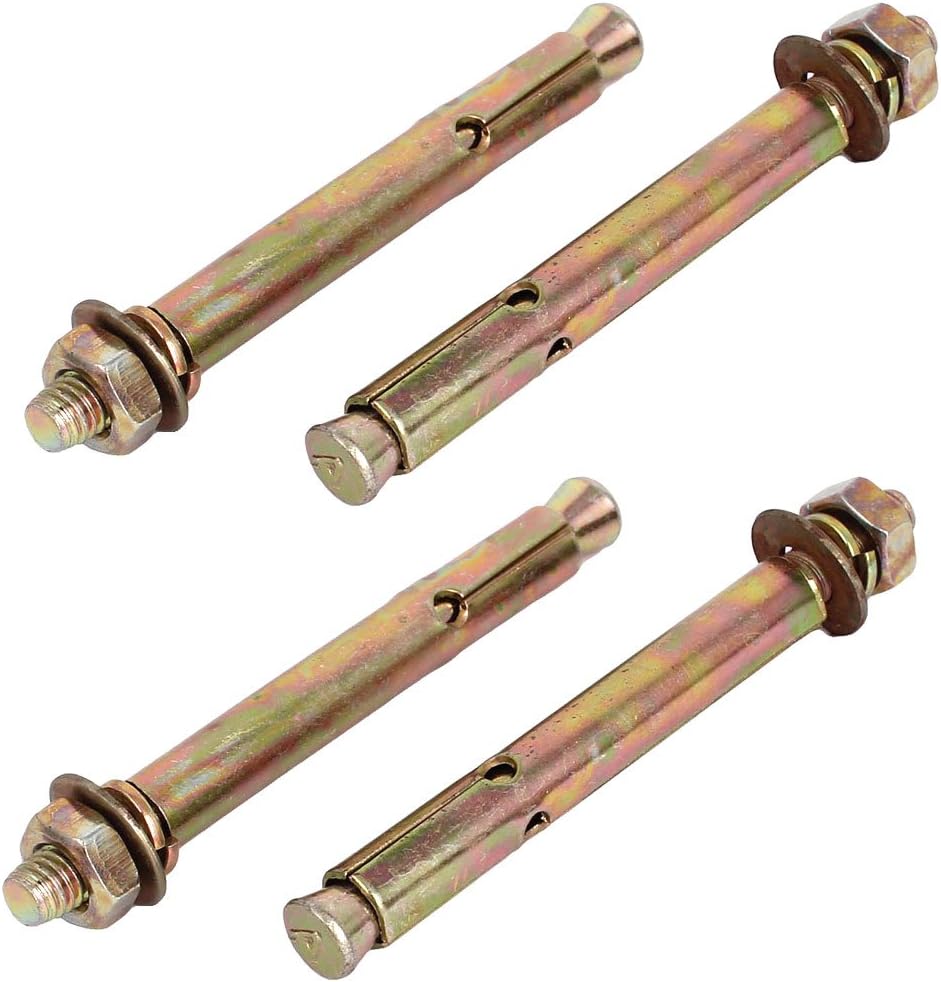

Stainless Steel Sleeve Expansion Screws Bolts M8x100mm 4 Pcs

Key Features

• Product Name Expansion Bolt;Material Stainless Steel;Color Bronze Tone
• Type Hex Nut;Thread Diameter 8mm/ M8
• Total Length 100mm/ 4";Sleeve Length 75mm/ 2.95"
• Sleeve Diameter 10mm/ 0.4";Drill Punch Diameter 10mm/0.4"
• Weight 213g;Package Content 4 x Expansion Bolt

Product Description

M8x70mm Expansion bolt with flat washer and hex nut.Applications: be widely used in fence, burglarproof doors and window, canopy, air conditioning rack fixation, home decoration, engineering, etc.The working principle of expansion screw: Put the expansion screw into the ground or the hole on the wall and then tighten the nuts of the expansion bolt with wrench. The bolt goes outside while the metal sheath does not move. Thus the bigger head of the bolt will expand the metal sheath, making it fill the whole hole. Now, the expansion screw can not be pulled out.Installation methods:Select a chopping bit with the same diameter as expansion screw casing, and install it on the electric drill for punching. The depth of the hole should be equal to the length of the bolt. Then insert the expansion bolt set into the hole. Remember: Do not screw off the nut and prevent the bolt from falling into the hole when the drill is too deep.Tighten the nut for 2 to 3 buckles and unscrew the nut when expansion bolt si very tight without any looseness. Then the fixed items are mounted with perforated fixed part and installed aiming at bolt. The gasket or spring washer outside is used to screw the nut tightly.
