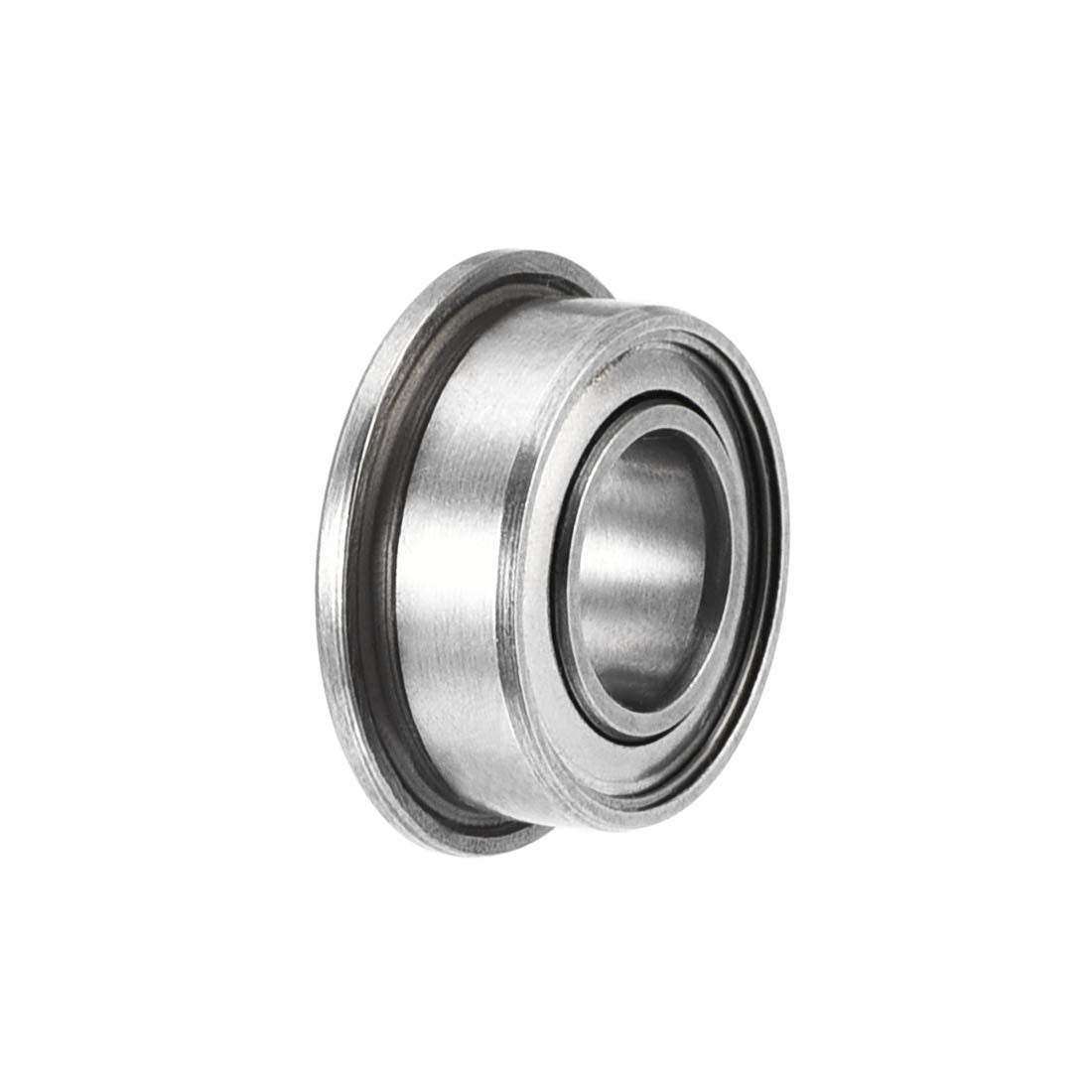

SMF105ZZ Flange Ball Bearing 5x10x4mm Double Shielded 440c Sta

Key Features

• SMF105ZZ(I.D.=5mm, O.D.=10mm, Thickness=4mm, Flange Dia.11.6mm)
• SMF105ZZ bearings are shielded on both sides to keep lubricant in
• 440c Stainless Steel long-life bearings, smooth and low noise
• ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
• Number of Pack 1 pcs

Product Description

NOTE：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistanceSuitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.Selection Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model: SMF105ZZShielded Type: Double Metal ShieldedInner Race/Outer Race Material: 440c Stainless SteelCage Material: Stamping SteelInner Diameter (d): 5mmOuter Diameter (D): 10mmThickness (B): 4mmFlange Dia.: 11.6mmFlange Thickness: 0.8mmAccuracy Class: P0Noise Level: Z1Number of Pack: 1Pcs
