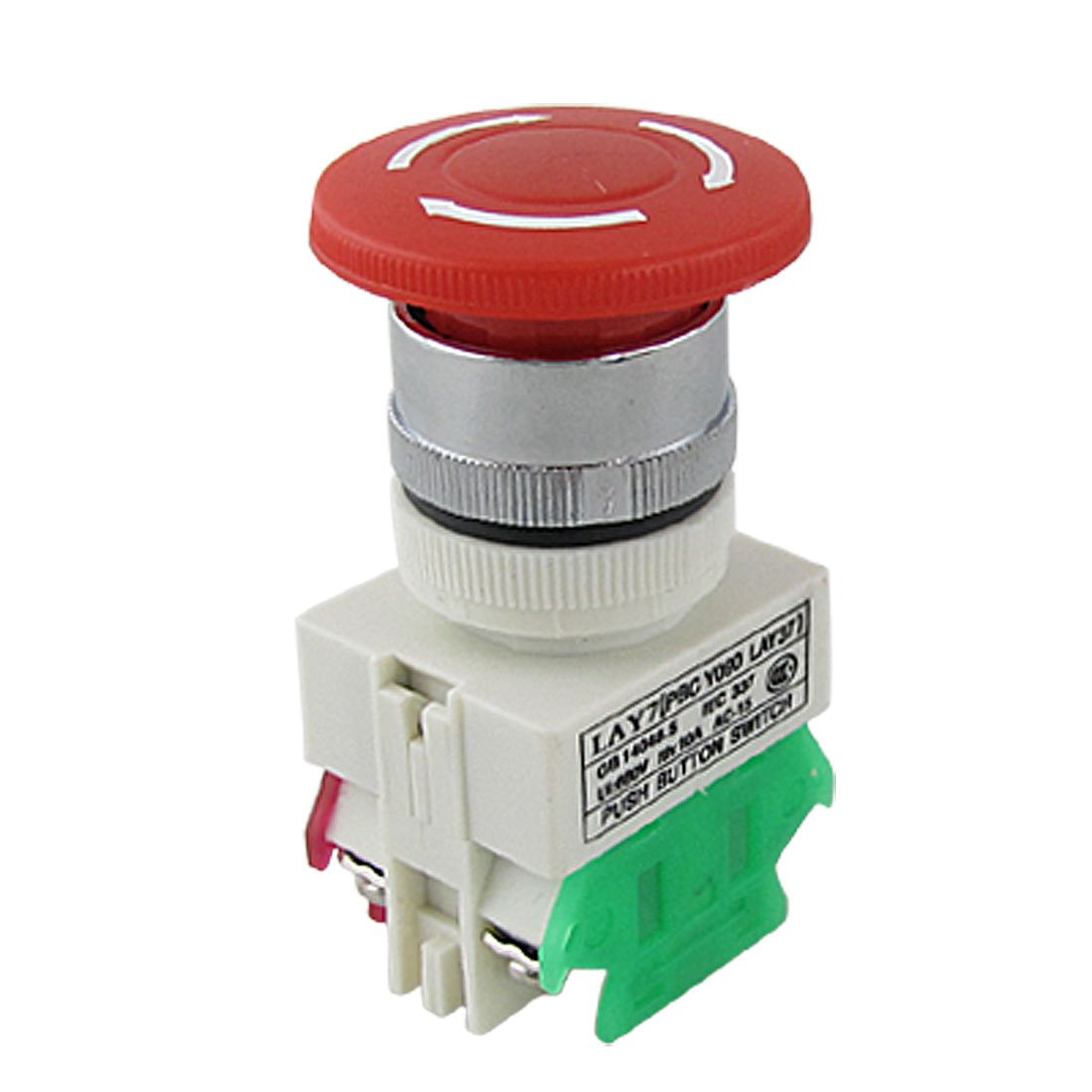

Self Locking Rotary Stop Emergency Push Button Switch

Key Features

• Product name push button switch; material plastic, metal; action Type rotary self locking Type
• Contact Type 1 No (normally open) + 1 NC (normally closed);itch 10A;ui 660V
• Terminal Number 4;mount Hole diameter 2.2cm / 0.87"(7/8");fit panel thickness(adjustable) max 0.6cm / 0.24"
• Button diameter (approx.) 4 cm / 1.6";total Size (approx.) 6.6 x 3.7 x 3 cm / 2.6" x 1.5" x 1.2" (l*w*t);button color red
• Net weight 44G;package content 1 x push button switch

Product Description

Button latches when pressed, twist to release. The switch is Structured compactly and operated quickly and gently. For emergency stop in industry with the conspicuous red mushroom cap.
