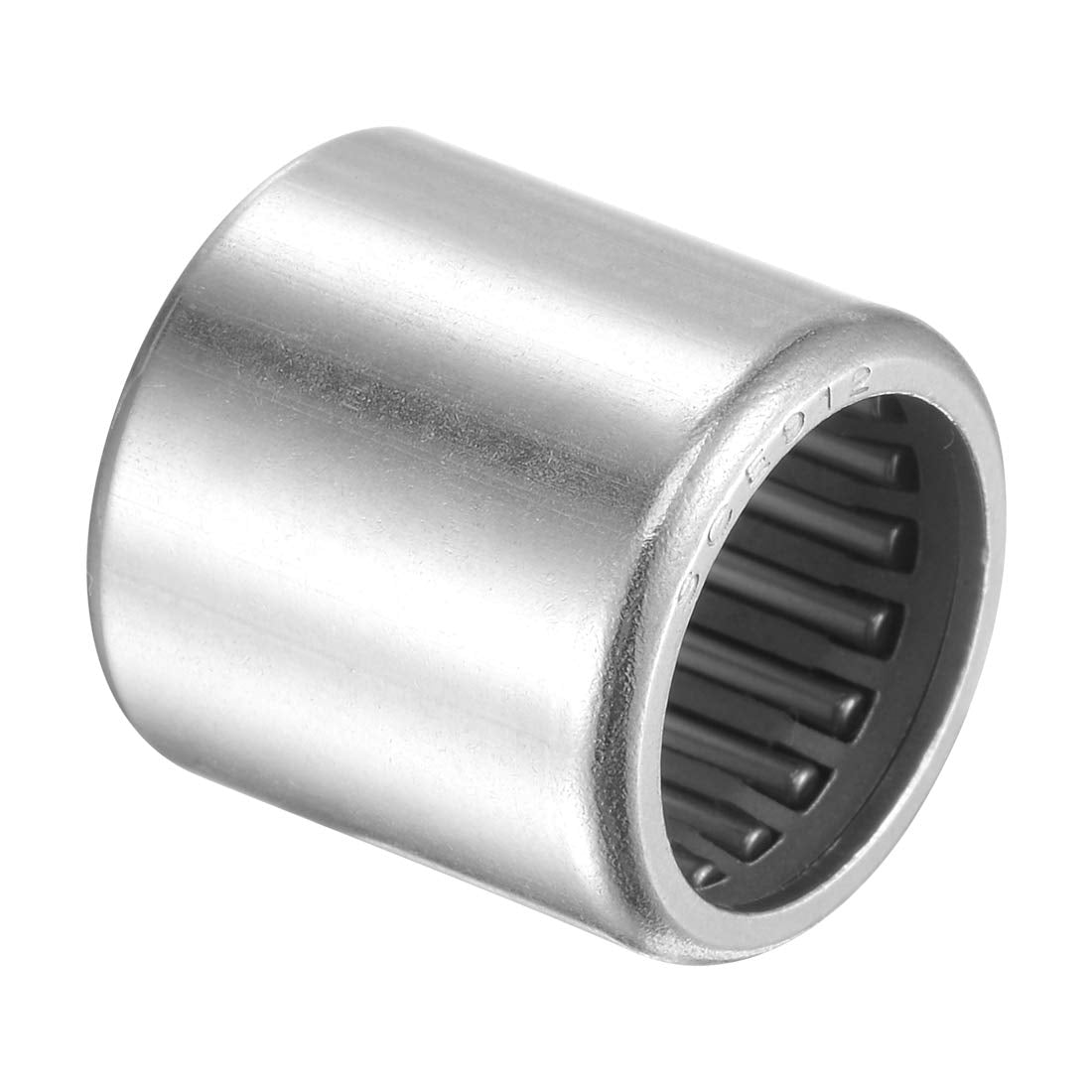

SCE912 Needle Roller Bearings 9/16-inch Bore 3/4-inch OD 3/4-i

Key Features

• [SIZE] - Model SCE912 (I.D. (Fw)= 9/16", O.D. (D)= 3/4", Width (C)= 3/4")
• [MATERIAL] - Steel Drawn Cup, Steel Cage, Chrome Steel Needle Rollers
• [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] - Dynamic Load Rating 10700N, Static Load Rating 16400N, Limit Speed 17600RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Product Description

Specification:Model: SCE912Drawn Cup Material: SteelCage Material: SteelNeedle Roller Material: Chromium Steel (GCr15)Accuracy: P0Bore Diameter (Fw): 9/16"Outside Diameter (D): 3/4"Width: 3/4"Limit Speed: 17600RPMDynamic Load Rating: 10700NStatic Load Rating: 16400NConstruction : Single RowNumber of Pack: 1 Pcs

Description

-They are compact bearings with high load carrying capacity and stiffness.-Suitable for high dynamic loads or radial-limited installation. They are mounted in housings with a tight interference fit.-Used in a variety of applications such as agricultural and construction equipment, pumps and compressors, and two-stroke engines.

Note

Use a press or special tool (not a hammer) for installation, as runout may cause local deformation or brittle breakage.
