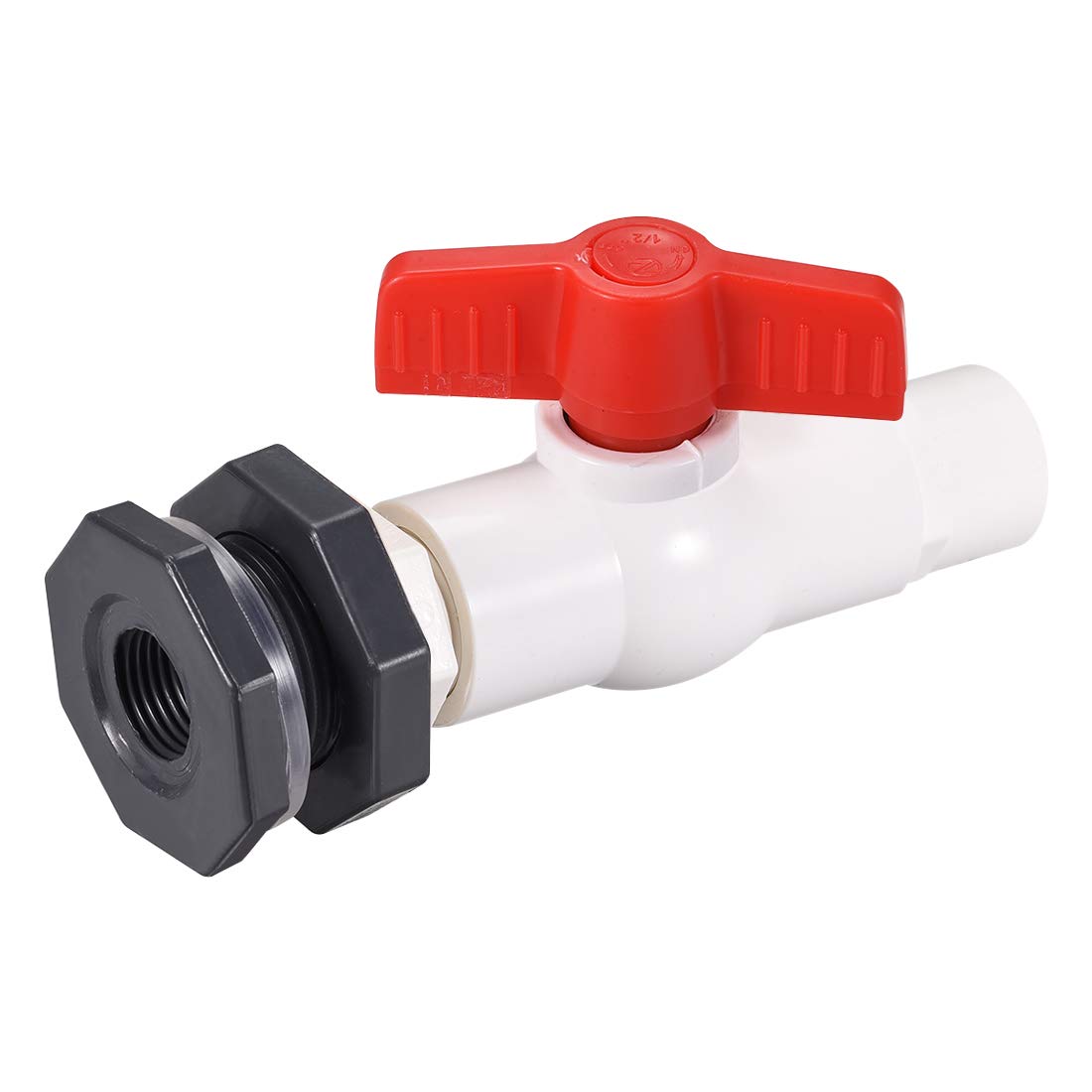

PVC Ball Valve Connector Spigot Kit G1/2, with Bulkhead Fitting Adapter, Grey White Red for Water Tank

Key Features

• [Material] Made of PVC, acid resistance, corrosion resistant.
• [Widely application] Suitable for water bucket, fishbowl, water waste treatment, electroplating factory and other places.
• [Easy to install] Drill a hole in 35mm diameter to install the bulkhead fitting adapter with 4mm durable silicone seal gasket.
• [Specification] The Size of the valve is G1/2. The PVC external adapter can be used directly or glued with a 20mm diameter PVC pipe.
• [Package Content] This kit includes valve, bulkhead fitting adapter, valve PVC external adapter and PVC Union. It's more convenient to buy four accessories at once.

Product Description

Specification:Material: PVC, ABSColor: White, Grey, RedThread Size: G1/2Total Length: 135mm / 5.31 inchValve Inner Diameter: 20mm / 0.79 inchValve PVC External Adapter Outer Diameter: 20mm / 0.79 inchBulkhead Fitting Adapter:Outer Diameter: 34.6m / 1.32 inchBulkhead Available Thickness: 10mm / 0.39 inchSilicon Seal Gasket Thickness: 4mm / 0.16 inch

Features

PVC material is corrosion resistant.Widely used in water tank, fishbowl, chemical plant pipeline installation, etc.Need to drill a 35mm diameter hole to install the bulkhead fitting adapter.

Note

The locking nut of the bulkhead fitting adapter is reversed threaded.

Package Content

1 x G1/2 Valve1 x Bulkhead Fitting Adapter1 x Valve PVC External Adapter1 x PVC Union
