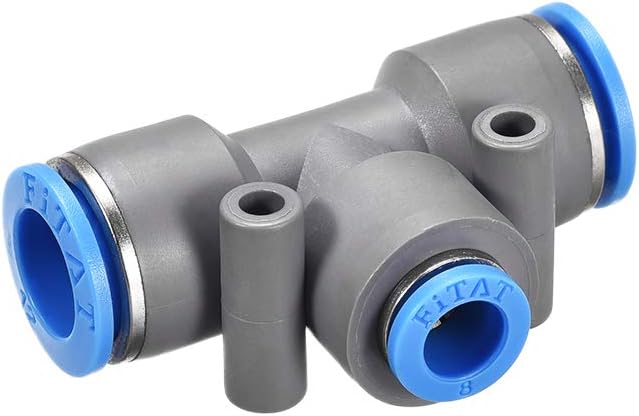

Push to Connect Fittings T Type Tee Tube Connect 12-8mm OD Grey Push Lock

Key Features

• Tube Size (OD) 12mm - 8mm
• Push-to-connect tube connection on Three end. A good release cap can withstand greater and stronger pressure without tripping.
• The Push-to-connect end can be rotated 360 degrees even after installation, which is convenient to use and has good sealing performance.
• Applications Mainly used for air compression systems, vacuum systems, pneumatic systems.
• Note Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.

Product Description

Features

Color : Grey, BlueMaterial : Plastic, Nickel-plated BrassType: T Type Tee ConnectorTube Size (OD) : 15/32" - 5/16" (12mm - 8mm)Operating Pressure : 0-1MPaOperating temperature：-10 - 60 Degree CelsiusDimension : 58mm x 40mm x 20mm / 2.28-inch x 1.57-inch x 0.79-inch(L x W x H ) Package Contents:1 x Fitting

Descriptions

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.2.A good release cap can withstand greater and stronger pressure without tripping.3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed. Mounted:1.Cut the pipe flat, no slope2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
