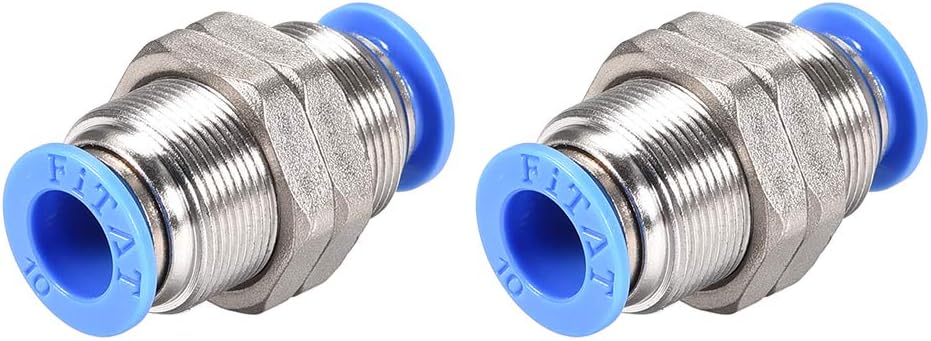

Pneumatic Push to Quick Air Connect Fittings Bulkhead Union 10mm Tube OD 2Pcs

Key Features

• Thread Size M20; Tube Size 10mm Tube OD X 10mm Tube OD
• Operating Pressure 0-9MPa ; Operating temperature：0 - 60 Degree Celsius
• TUBE FITTINGS Push-to-connect tube connection on two end. A good release cap can withstand greater and stronger pressure without tripping.
• ADVANTAGE Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• APPLICATION Designed for using to connect with polyethylene, nylon and PU tubing. Widely used for agricultural irrigation, industrial machinery, water pumps, air pumps, etc.

Product Description

Product

Features

Color : Silver Tone, BlueMaterial : Plastic, MetalThread Size : M20Tube Size (OD) : 10mm / 3/8"Operating Pressure : 0-9MPaOperating temperature：0 - 60 Degree CelsiusDimension : 41mm x 24mm / 1.61-inch x 0.94-inch (L x W )

Package Content

2Pcs x Push to Connect Fittings

Description

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.2.Push-to-connect tube connection on two ends.3.A good release cap can withstand greater and stronger pressure without tripping.4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.5.Elliptical release ring help to connect tube easily by manual, no special tools required.6.Outside (and Inside where applicable) hexagonal wrench tightening. Mounted:1.Cut the pipe flat, no slope2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Specifications
