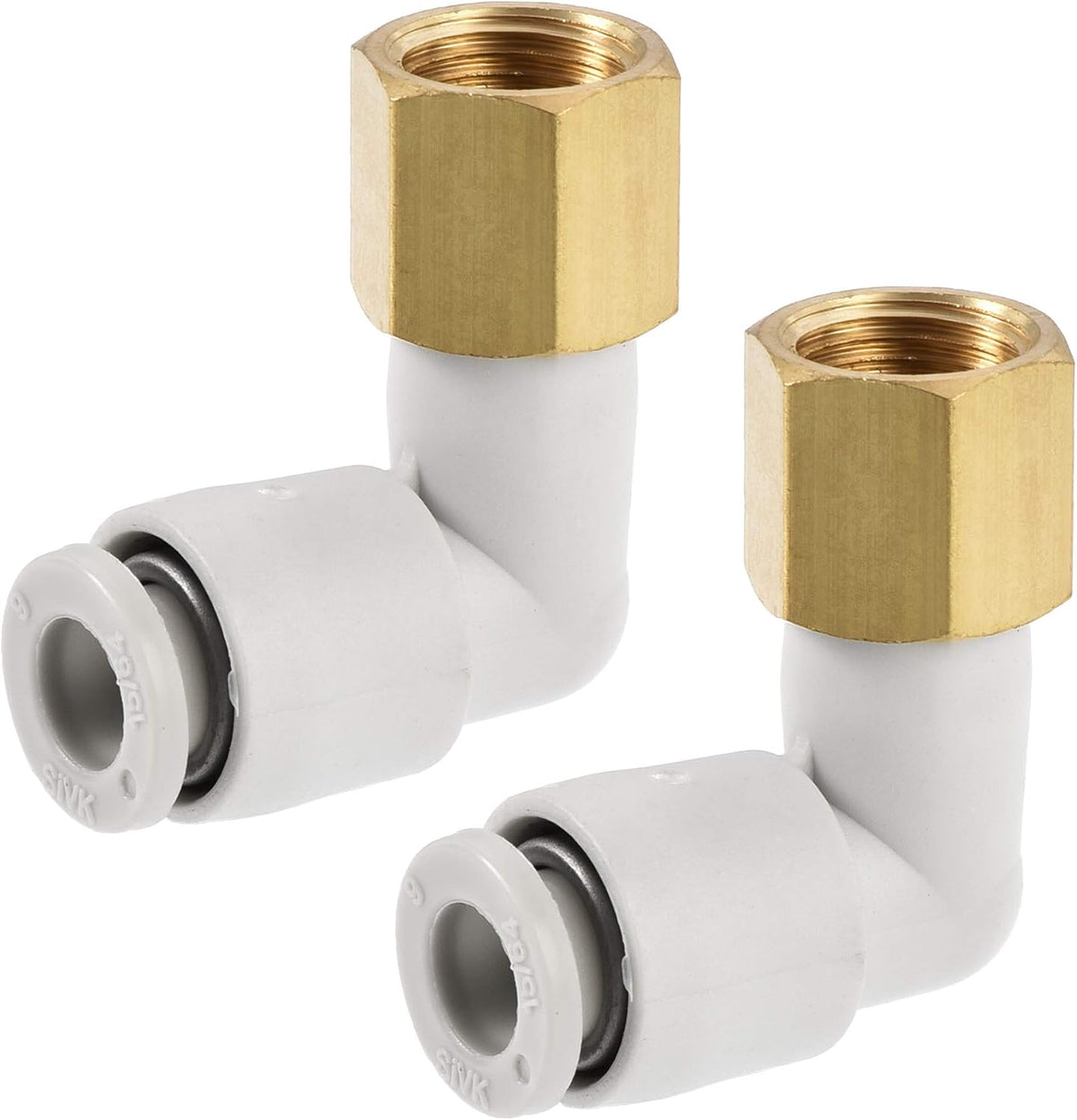

Pneumatic Push to Connect Tube Fittings Elbow 6mm Tube OD x 1/8PT Female 2Pcs

Key Features

• 【UNIVERSAL DESIGN】- Tube and Thread Size 6mm Tube OD x 1/8PT Female
• 【Operating Pressure】- 0-1MPa ; Operating temperature：0 - 60 Degree Celsius
• 【GOOD DESIGN】- Push-to-connect tube connection on one end and female threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
• 【ADVANTAGE】- Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• 【APPLICATION】-Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.

Product Description

Product

Features

Color : Golden Tone, WhiteMaterial : Brass, PlasticThread Size : 1/8 PTTube Size (OD) : 6mm / 1/4"Type: Elbow Female Thread ConnectorOperating Pressure : 0-1MPaOperating temperature：0 - 60 Degree CelsiusDimension : 29mm x 26mm x 11.5mm / 1.14" x 1.02" x 0.45" (LxWxH)

Package Content

2Pcs x Push to Connect Fittings

Description

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.2.Push-to-connect tube connection on one end and female PT threads on the other end.3.A good release cap can withstand greater and stronger pressure without tripping.4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.5.Elliptical release ring help to connect tube easily by manual, no special tools required.6.Outside (and Inside where applicable) hexagonal wrench tightening. Mounted:1.Cut the pipe flat, no slope2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
