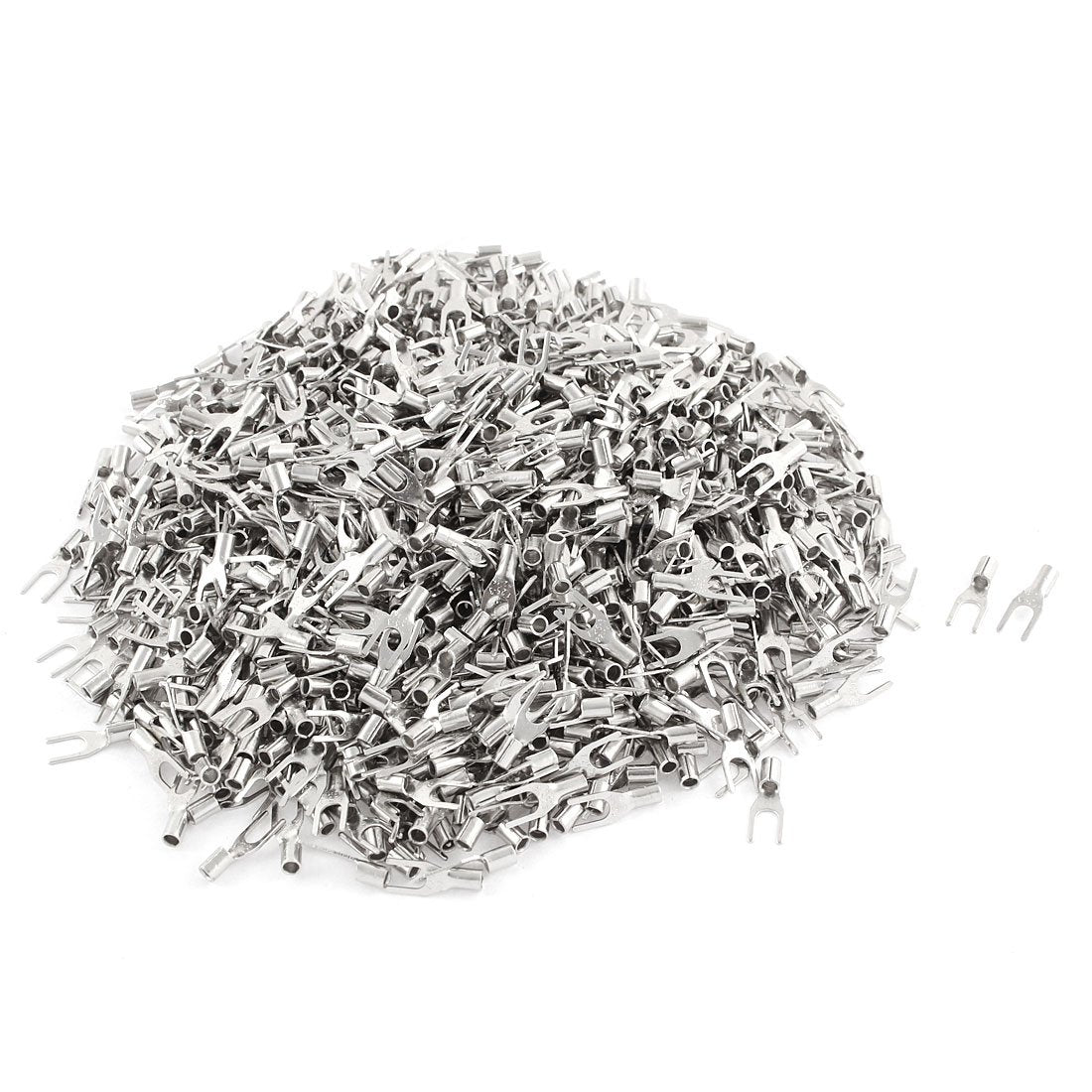

Non-Insulated Fork AWG 22-16 Cable Terminal Wire Connectors with 1000 Piece

Key Features

• Product name non insulated fork terminal, model SNB1.25-3.2, design fork Type
• Material metal, color Silver Tone, fit cable Size 0.5-1.5Mm2(A.W.G 22-16)
• Tip width 3.2mm/ 0.25", tube Hole Size 2 x 3 mm / 0.08" x 0.12"(Inside Diameter*outside Diameter), tube Length 4.5mm/ 0.18"
• Total Length 13.5mm/ 0.53&#39, &#39,, max. Current 19A
• Weight 238G, package content 1000(-2 percent ) x non insulated fork terminal

Product Description

Insulated female Spade terminal connector for AWG 22-16 wire.
