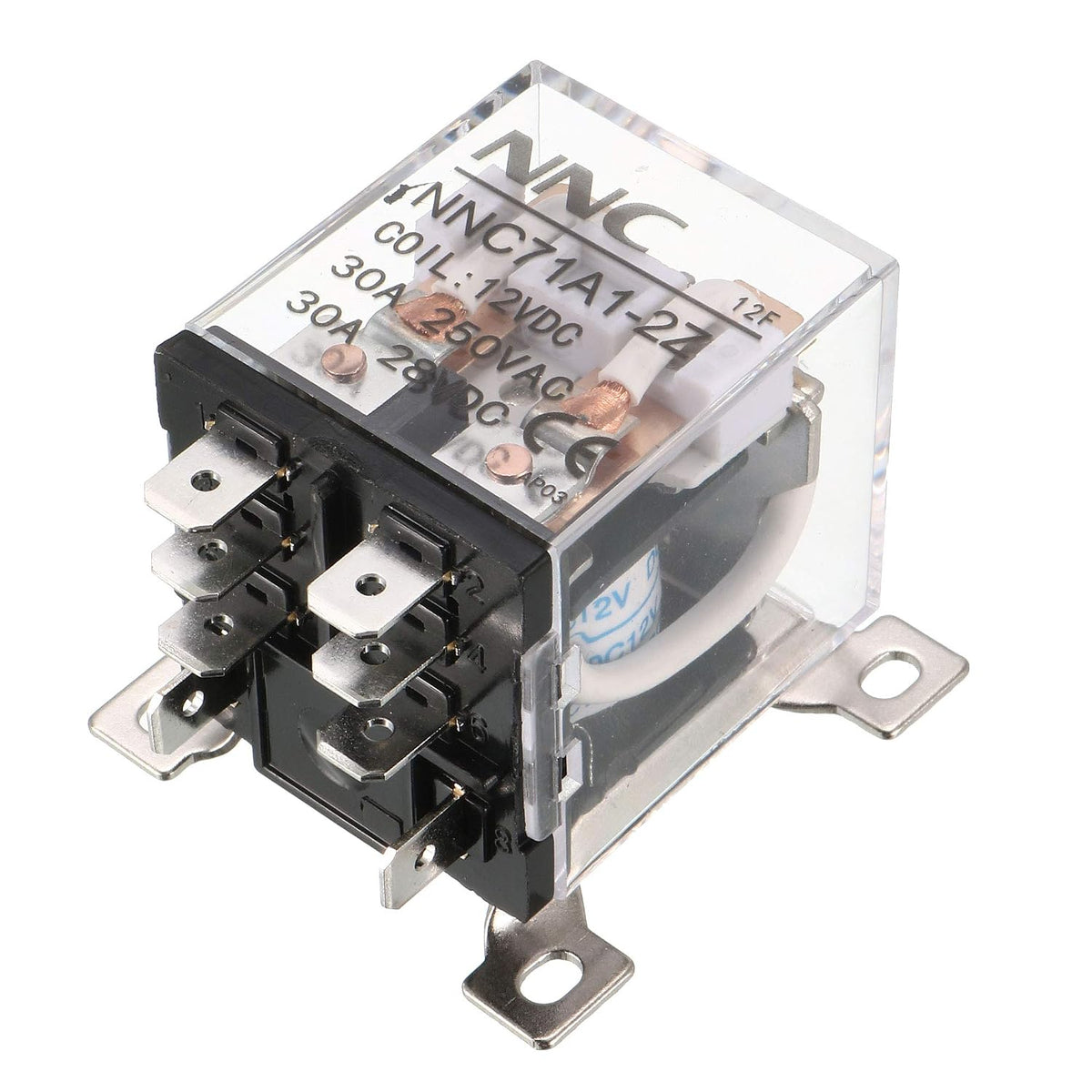

JQX-12F 2Z DC 12V 30A DPDT General Purpose Power Relay 8 Pin

Key Features

• Product Name Power Relay;Model JQX-12F 2Z;Contact DPDT
• Pin Number 8;Coil Voltage DC 12V;Contact 30A 250V AC / 28V DC
• Body Size(not included pin) 3.5 x 3.3 x 4cm / 1.4" x 1.3" x 1.6" (L * W * T);Total Height 4.8cm / 1.6";Installing Hole Size 0.48 x 0.35cm / 0.19"x 0.14"(L*W)
• Installing Hole Distance(center) 3.85 x 3.78cm / 1.52" x 1.49"(L*W);Material Plastic, Metal;Color See the Picture
• Weight 93g;Package Content 1 power Relay

Product Description

Features

8 pins DPDT, with coil voltage DC 12V, contact capacity AC 30A 250V and DC 30A 28V. The JQX-12F 2Z General Purpose Relay can adjust automatically, protect and transform the electric circuit. Widely used in the remote control, communication, automatic control system, electronic equipment, etc.
