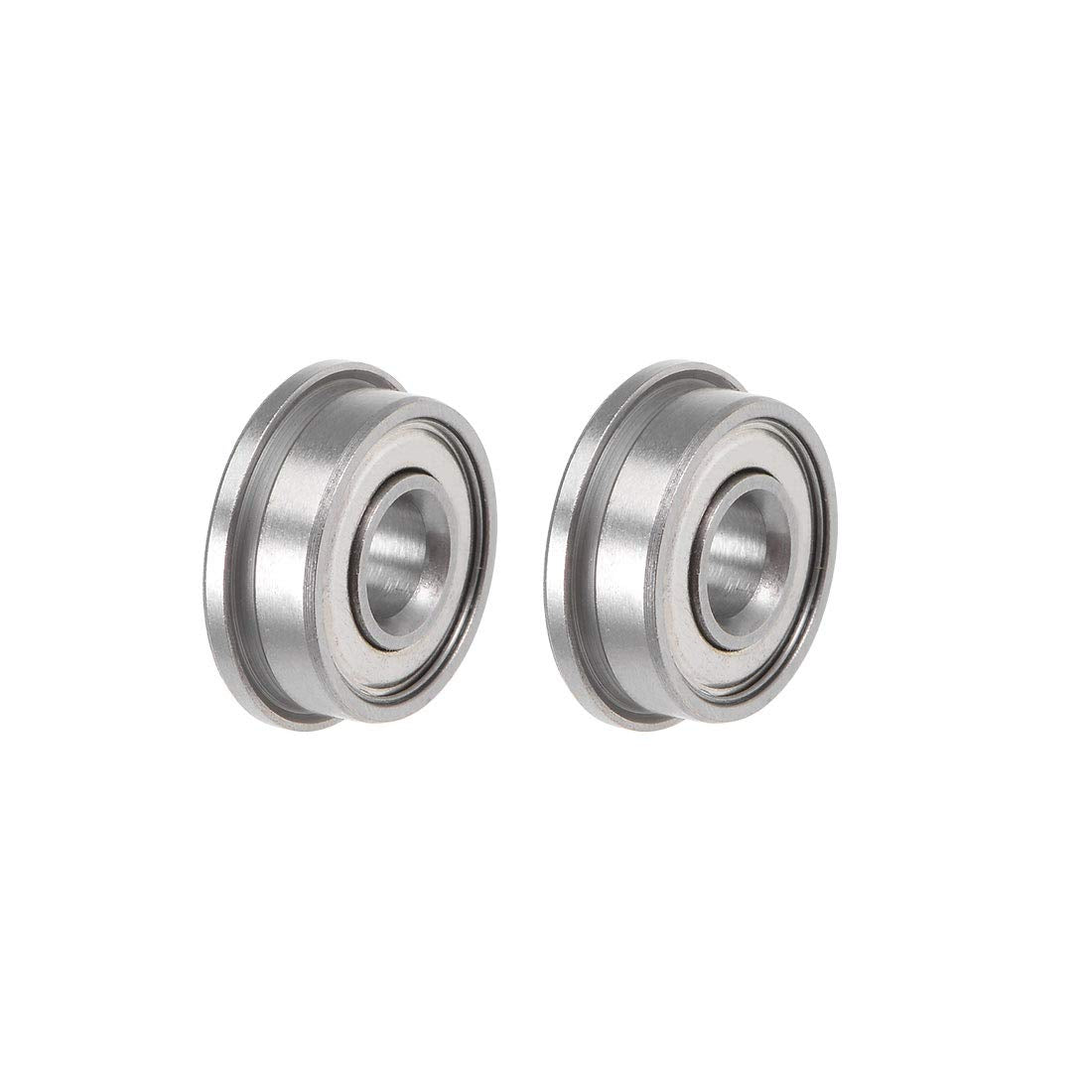

F694ZZ Flanged Ball Bearing 4x11x4mm Shielded Chrome Steel Flange Rip Bearings 2pcs

Key Features

• [Size] - F694ZZ ABEC1 bearing (I.D.=4mm, O.D.=11mm, Thickness=4mm, Flange Dia 12.5mm).
• [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
• [Load & Speed] - Dynamic load rating of 814N and static load rating of 280N. The limiting speed is 48000 RPM under grease lubricating.
• [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
• [Application] - Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.

Product Description

Note：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistanceSuitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.Selection Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model: F694ZZShielded Type: Double ShieldedInner Race/Outer Race Material: Chrome Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 4mmOuter Diameter (D): 11mmThickness (B): 4mmFlange Dia.: 12.5mmFlange Thickness: 1mmDynamic Load Rating (Cr): 0.96kNStatic Load Rating (Cor): 0.345kNAccuracy Class: P0 (ABEC1)Noise Level: Z1Number of Pack: 2 Pcs
