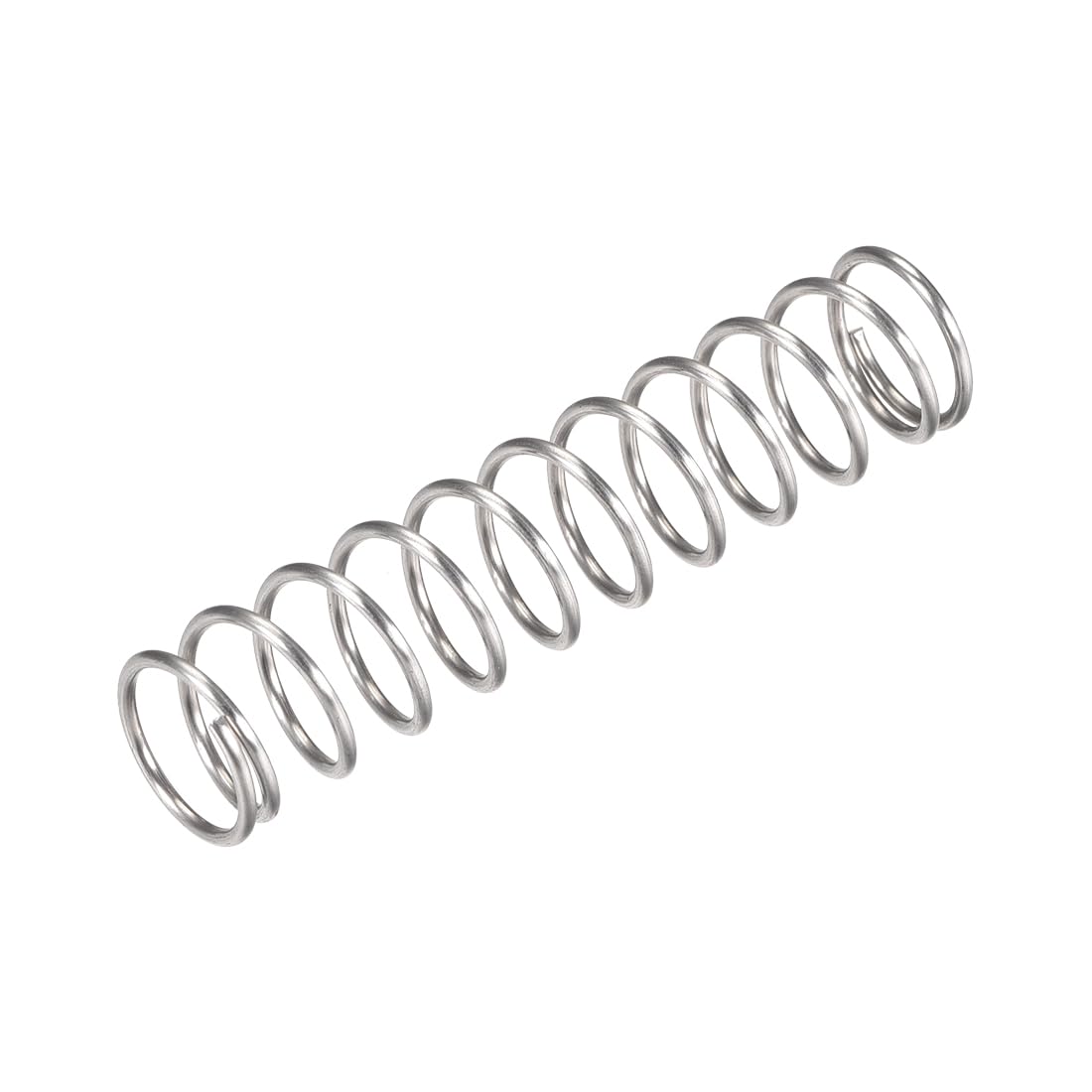

Compression Spring,304 Stainless Steel,18mm OD,1.6mm Wire Size,40mm Compressed Length,80mm Free Length,66.4N Load Capacity,Silver Tone,10pcs

Key Features

• Product 18mm/0.7inch OD, 1.6mm/0.06inch Wire Diameter,80mm/3.12inch Total Height.
• Specifications 40mm/1.56inch Compressed Length,66.4N Load Capacity, 1.66 N/mm Spring Rate.
• Material 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.
• Feature Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling.
• Application Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Product Description

Product: 18mm/0.7inch OD, 1.6mm/0.06inch Wire Diameter,80mm/3.12inch Total Height.

Specifications

40mm/1.56inch Compressed Length,66.4N Load Capacity, 1.66 N/mm Spring Rate. Material: 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness. Feature: Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling. Application: Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required. ›
