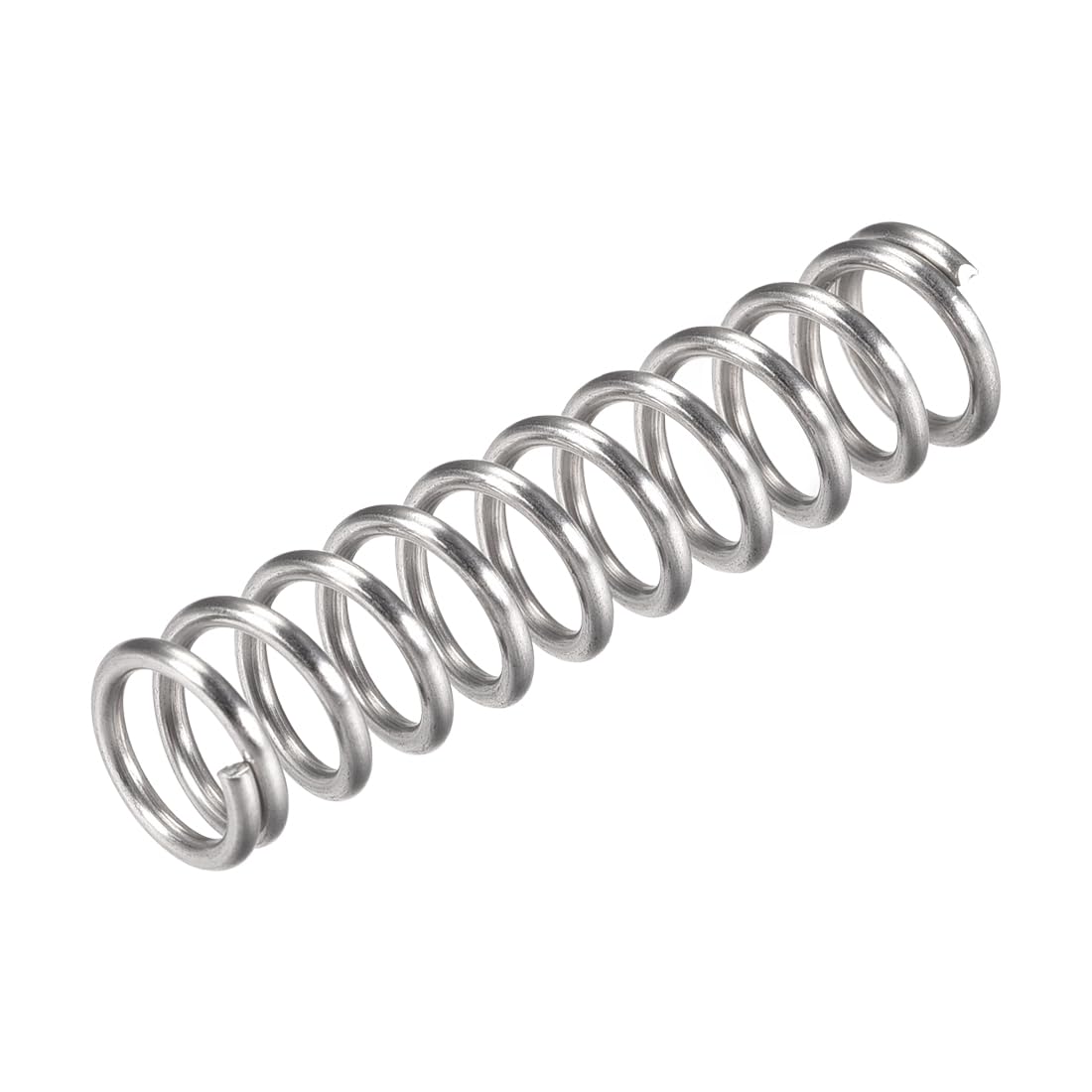

Compression Spring,304 Stainless Steel,12mm OD,1.6mm Wire Size,27.5mm Compressed Length,50mm Free Length,63.2N Load Capacity,Silver Tone,10pcs

Key Features

• Product 12mm/0.47inch OD, 1.6mm/0.06inch Wire Diameter,50mm/1.95inch Total Height.
• Specifications 27.5mm/1.07inch Compressed Length,63.2N Load Capacity, 4.68 N/mm Spring Rate.
• Material 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.
• Feature Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling.
• Application Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Product Description

Product: 12mm/0.47inch OD, 1.6mm/0.06inch Wire Diameter,50mm/1.95inch Total Height.

Specifications

27.5mm/1.07inch Compressed Length,63.2N Load Capacity, 4.68 N/mm Spring Rate. Material: 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness. Feature: Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling. Application: Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required. ›
