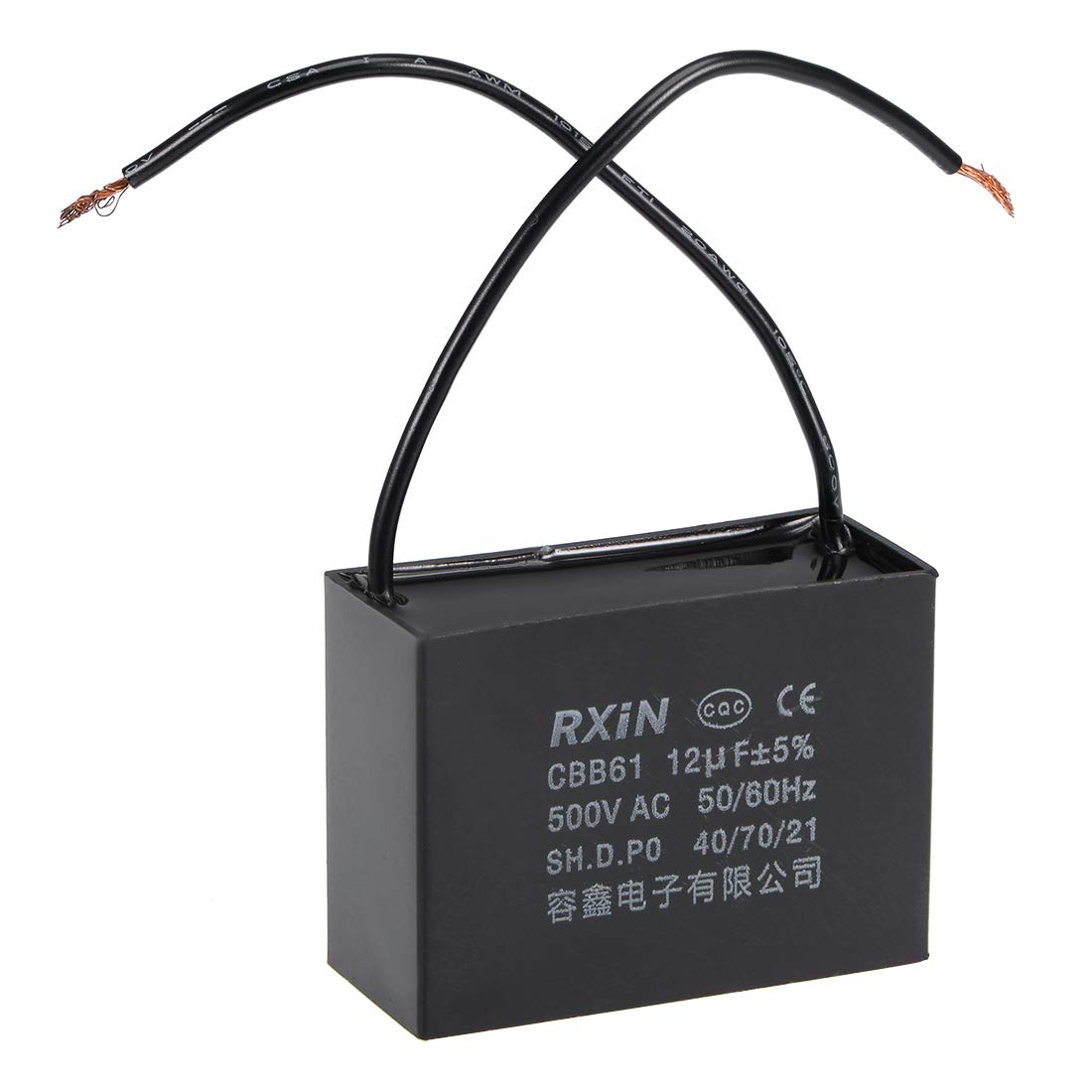

Ceiling Fan Capacitor CBB61 12uF 500V AC 2 Wires Metalized Polypropylene Film Capacitors 58x25x42mm for Water Pump Motor Generator

Key Features

• [Material] - Made of metallized polypropylene film sheet with plastic shell
• [Specification] -Rated Capacity 12uF; Tolerance ±5%; Rated Voltage 500V AC; Cover Size 58x25x42mm / 2.3x1x1.7inch; Rated Frequency 50/60Hz; Temperature Range 40/70/21
• [Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
• [Application] - The CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc
• [Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one

Product Description

Features

This CBB61 run capacitor has low loss, excellent electrical performance and long service life.The CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc.

Note

If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.

Specifications

Model: CBB61Case Material: ABSDielectric: PolypropyleneRated Voltage: 500V ACRated Frequency: 50/60HzRated Capacity: 12uF Tolerance: ±5%Lead End: 2 WiresSize: 58x42x25mm (2.28" x 1.65" x 1")Climatic Category: 40/70/21Operating Temperature Range: -40℃-70℃

Package Includes

1 x Fan Capacitors
