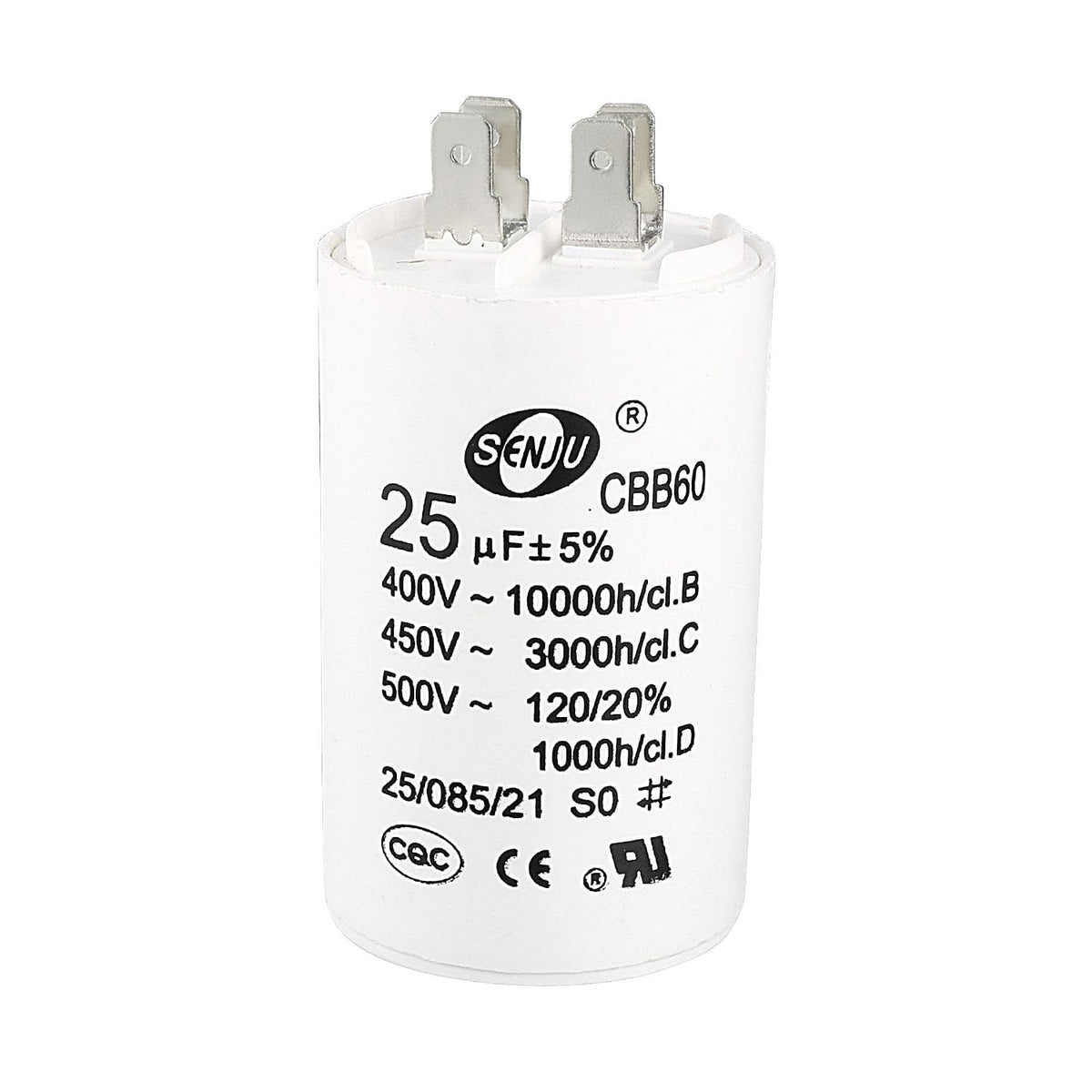

CBB60 Run Capacitor 25uF 450V AC Double Insert 50/60Hz Cylinder 73x44mm White for Air Compressor Water Pump Motor

Key Features

• [Specification] - Rated Capacity 25uF; Tolerance ±5%; Rated Voltage 450V AC; Body Size 73x44mm / 2.9x1.7 inch(L*D); Rated Frequency 50/60Hz
• [Characteristic] - This CBB60 run capacitor has characteristics of small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life
• [Working Environment] - This CBB60 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system
• [Application] - The start capacitor is widely used for air compressors, water pumps, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, drills, splitters, saws, grinders, etc
• [Note] - 1. Before purchasing this product, please refer to the electrical specification of the original capacitor to select the appropriate capacitor; 2. This capacitor has no positive and negative poles, it can be wired at will. If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one

Product Description

About this item [Specification] - Rated Capacity: 25uF; Tolerance: ±5%; Rated Voltage: 450V AC; Body Size: 73x44mm / 2.9x1.7 inch(L*D); Rated Frequency: 50/60Hz [Characteristic] - This CBB60 run capacitor has characteristics of small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life [Working Environment] - This CBB60 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system [Application] - The start capacitor is widely used for air compressors, water pumps, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, drills, splitters, saws, grinders, etc [Note] - 1. Before purchasing this product, please refer to the electrical specification of the original capacitor to select the appropriate capacitor; 2. This capacitor has no positive and negative poles, it can be wired at will. If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one ›
