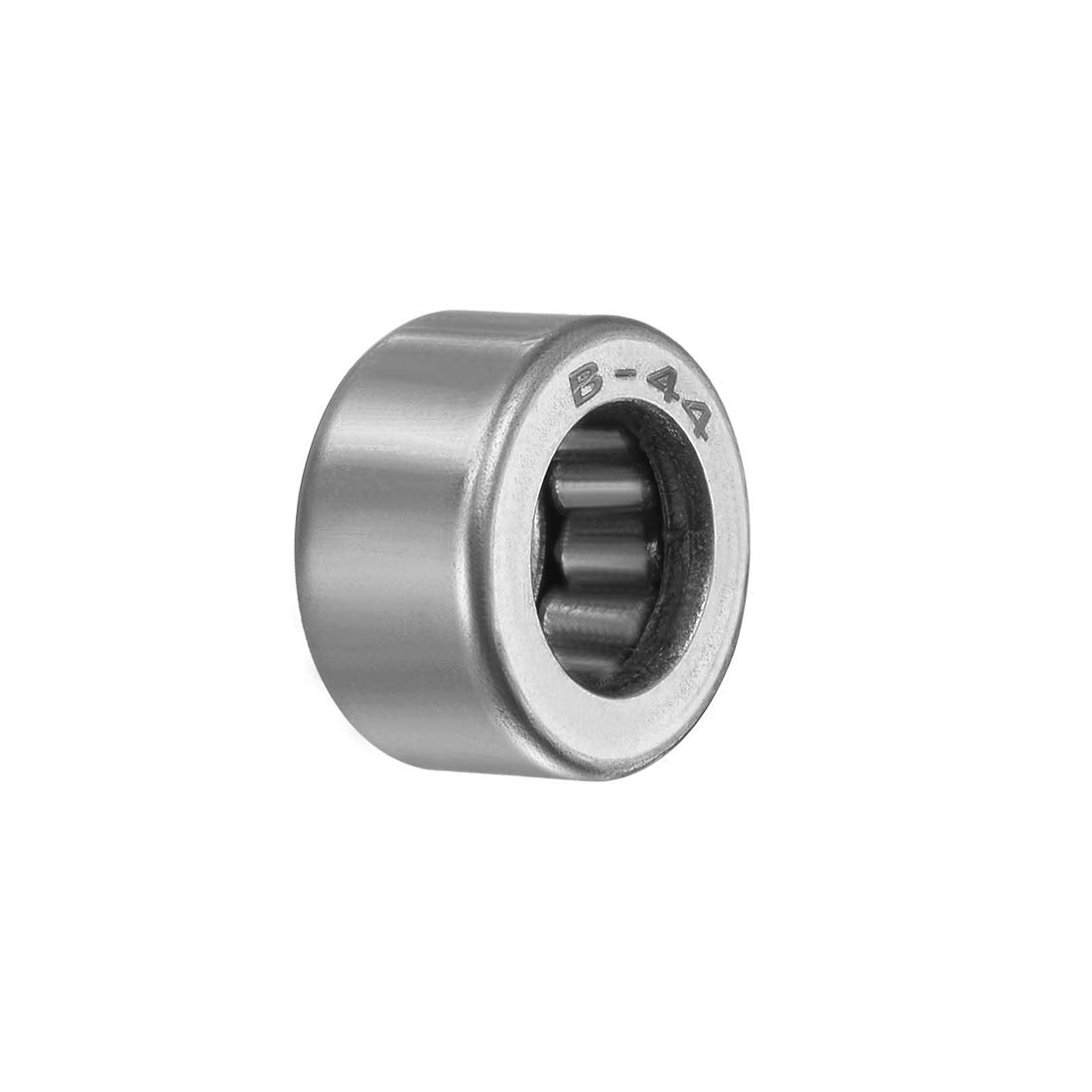

B44 Needle Roller Bearings, Full Complement Drawn Cup, Open, 1/4-inch I.D. 7/16-inch OD 1/4-inch Width 531N Static Load 566N Dynamic Load 10000Rpm Limiting Speed

Key Features

• Model B44 (I.D. (Fw)=1/4", O.D. (D)=7/16", Width (C)=1/4")
• ST14 steel drawn cup, GCr15 needle rollers full complement bearing
• Good heat tolerance, high load carrying capacity and stiffness
• Low cross section, enable downsizing and suit for use in restricted mounting spaces
• Pre-Lubricated. Good running properties

Product Description

Specification:Model: B44Drawn Cup Material: ST14 SteelNeedle Roller Material: Chromium Steel (GCr15)Accuracy: P0Bore Diameter (Fw): 1/4" / 6.35mmOutside Diameter (D): 7/16" / 11.11mmWidth: 1/4" / 6.35mmDynamic Load Rating: 566NStatic Load Rating: 531NLimiting Speed: 10000RpmNumber of Pack: 1 Pcs

Description

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.-

NOTE

Install with press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture.
