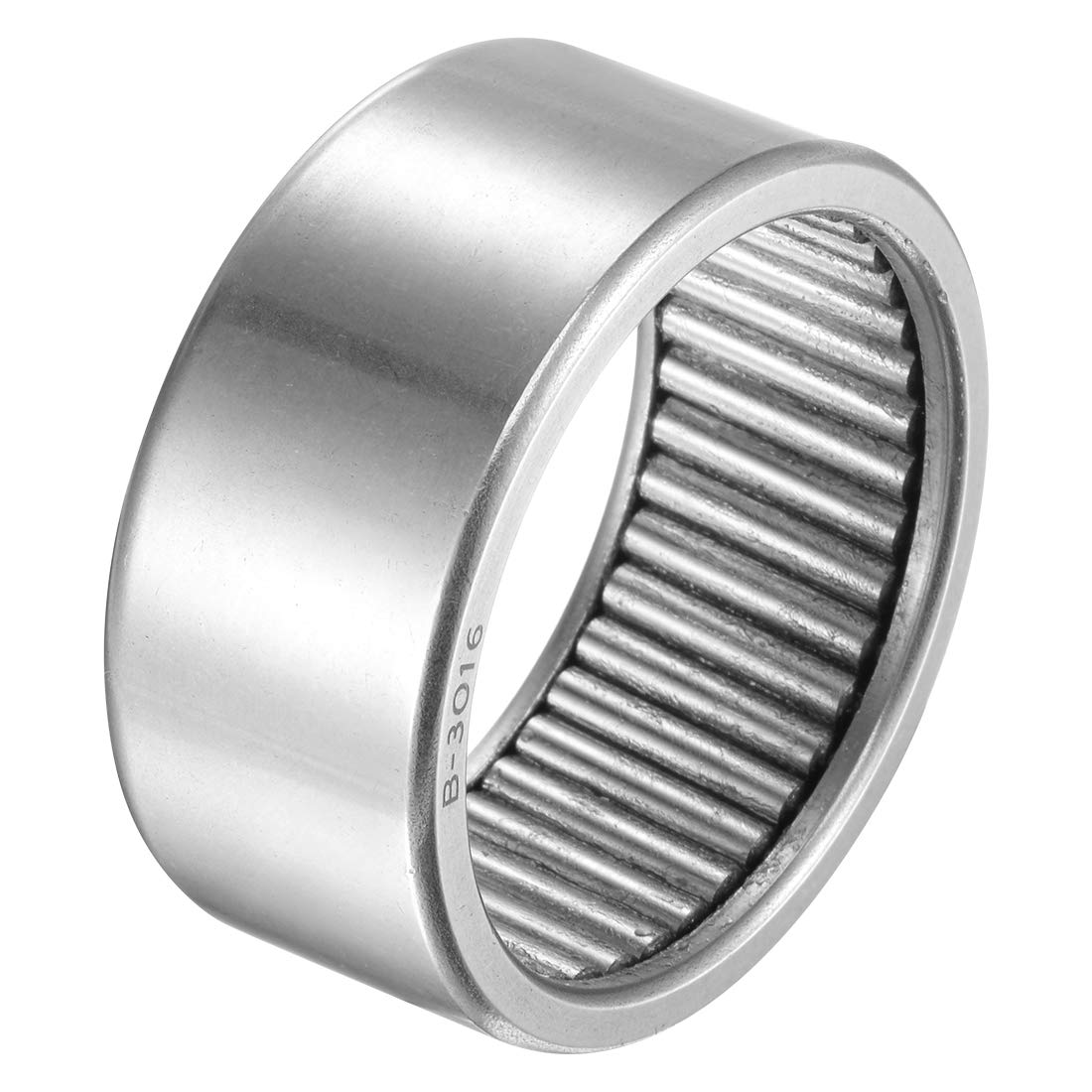

B3016 Needle Roller Bearings 1-7/8" Bore 2-1/4" OD 1" Width Chrome Steel Open End Full Complement Drawn Cup Bearing

Key Features

• [SIZE] - Model B-3016 (I.D. (Fw)= 1-7/8", O.D. (D)= 2-1/4", Width (C)= 1")
• [MATERIAL] - Steel Full Complement Drawn Cup, without Cage, Chrome Steel Needle Rollers
• [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] - Dynamic Load Rating 12400N, Static Load Rating 28600N, Limit Speed 3500RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Product Description

About this item [SIZE] - Model: B-3016 (I.D. (Fw)= 1-7/8", O.D. (D)= 2-1/4", Width (C)= 1") [MATERIAL] - Steel Full Complement Drawn Cup, without Cage, Chrome Steel Needle Rollers [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity [CAPABILITY] - Dynamic Load Rating: 12400N, Static Load Rating: 28600N, Limit Speed: 3500RPM [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway ›
