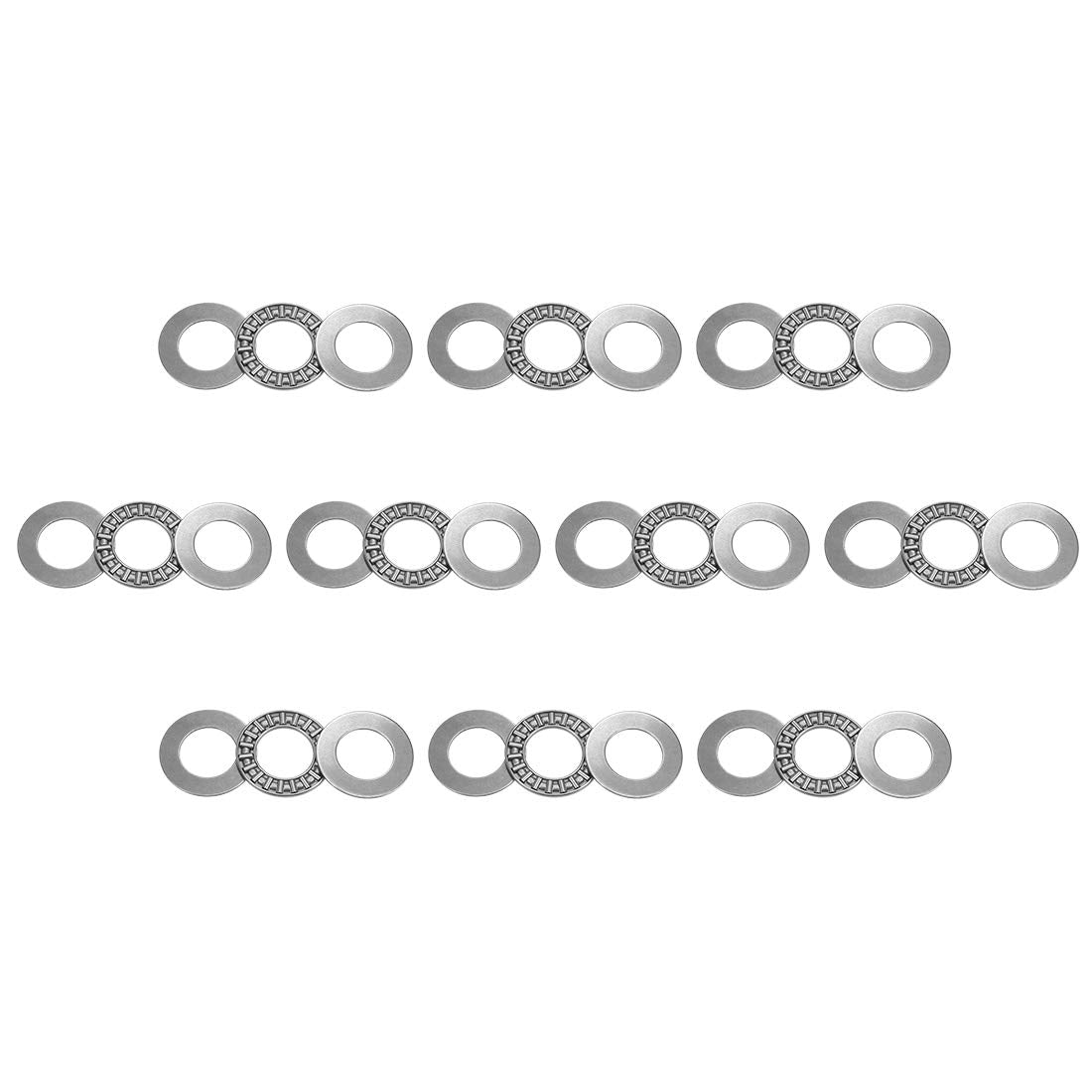

AXK1730 Thrust Needle Roller Bearings with Washers 17mm Bore 30mm OD 2mm Width 10pcs

Key Features

• [MODLE] - Bearing Model AXK1730 (I.D.=17mm, O.D.=30mm, Thickness=2mm); Washer Model AS1730
• [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• [CAPABILITY] - 38.6kN Static Load Capacity, 11.8kN Dynamic Load Capacity, 10000RPM Maximum Rotational Speed

Product Description

Description

Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing Modle: AXK1730Bearing Washer Modle: AS1730Needle Roller Meterial: Chromium Steel (GCr15)Cage Meterial: ST13 SteelBearing Washer Meterial: 65Mn Spring SteelBore Diameter (d): 17mmOutside Diameter (D): 30mmBearing Thickness (T1): 2mmWasher Thickness (T2): 1mm (Approx.)Dynamic Load Capacity (Cr): 11.8kNStatic Load Capacity (Cor): 38.6kNLimiting Speed (Oil): 10000RPMPackage Contents:10 x Bearings20 x Bearing Washers
