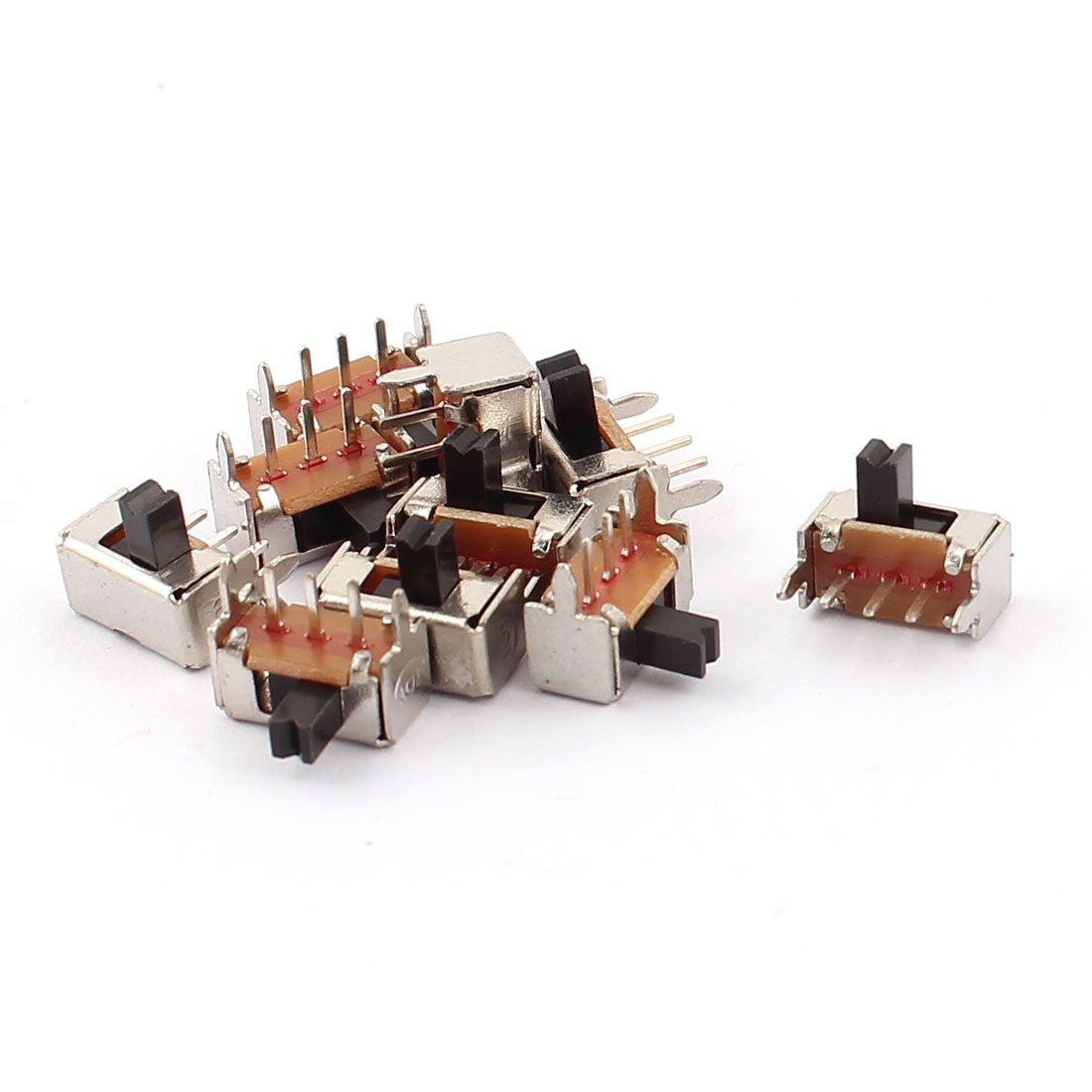

a15080400ux1036 10 Pcs on/Off 2 Position 3 Poles Spdt Right Angle Panel Pcb Slide Switch, 0.28000000000000003" width, 0.34" Length

Key Features

• Product Name Slide Switch;Model SK12D07V-G3;Action Type SPDT;Contact Type ON/ON, 2 Positions
• Poles Quantity 3;Working Power 0.5A 50V DC;Contact Resistance 30mOhm Max;Insulation Resistance 100mOhm Min at 500V DC
• Withstand Voltage AC 500V for 1 min;Pole Size(Each One) 3 x 0.5mm/ 0.12" x 0.02" ( L * W);Pole Pitch 2mm / 0.079";Main Body Size(not include Pole & Knob) 8.7 x 4.6 x 4.4mm / 0.34" x 0.18" x 0.17"(L*W*H)
• Switch Total Size 8.7 x 7.2 x 7.5mm/ 0.34" x 0.28" x 0.29" (L * W* H);Knob Size 2 x 2 x 3mm/ 0.08" x 0.08" x 0.12" (L * W * H);Material(External) Plastic, Metal
• Main Color Silver Tone, Black;Weight 7g;Package Content 10 x Slide Switch

Product Description

Product Type is 10 PCS on/off 2 position 3 poles SPDT right angle panel PCB slide switch, made in China.

Specifications
