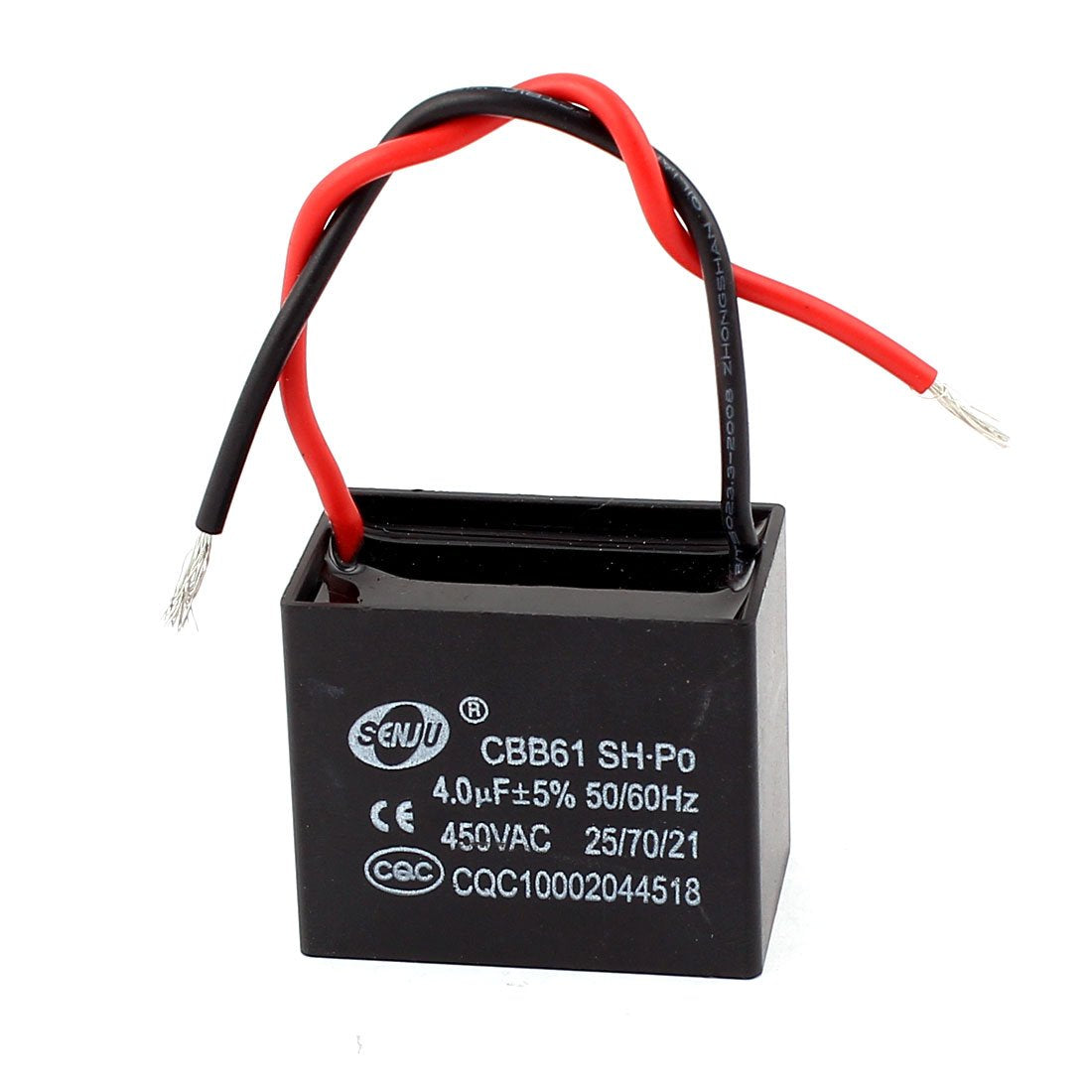

a15052300ux0380 AC 450V 4uF 5% Two Wires Polypropylene Film Ceiling Fan Motor Capacitor

Key Features

• Product name motor capacitor; model Cbb61; for air Conditioner, ceiling fan
• Capacitance 4uF; Tolerance +/-5 percent ; rated Voltage AC 450V
• Temperature coefficient 25/70/21; frequency 50/60Hz; wire Length 10cm/4 inch
• Body Size 3. 8 x 3. 2 x 2. 3cm/1. 5" x 1. 26" x 0. 9"(L*w*h); mount Hole DIA 5mm/0. 2"; main material polypropylene film
• Color black; weight 34G; package content 1 x motor capacitor

Product Description

AC 450V 4Uf, two wires , rectangular design. It is covered with polypropylene film dielectric, flame retardant plastic case and epoxy resin end seal. Applied to the starting and better working of motor in 50Hz/60Hz frequency AC power system. Widely used in ceiling fan, Centrifugal fan, fan blower, air Conditioner fan etc.

Specifications
