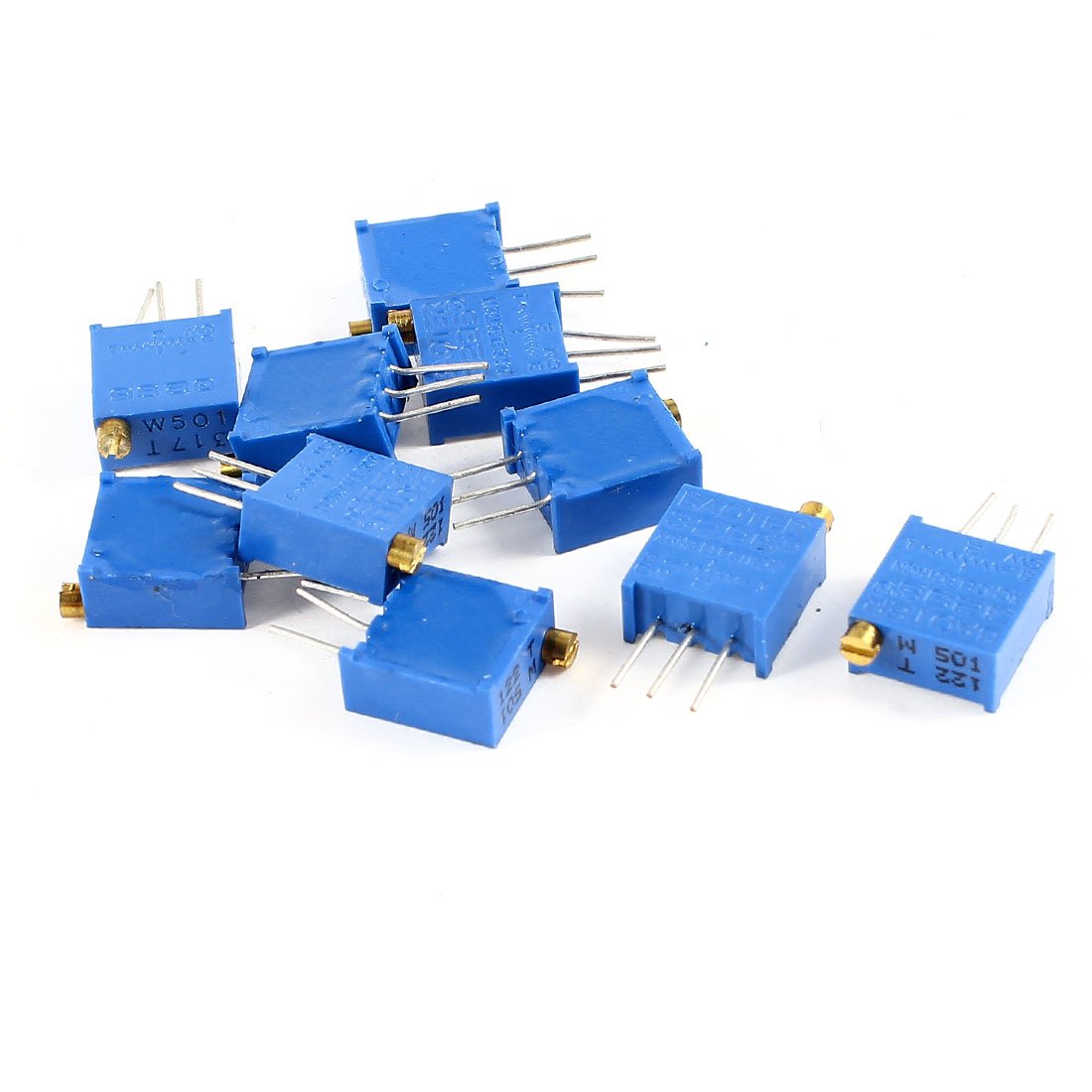

a14052600ux0968 10 Piece 500 Ohm 3296W 3 Pins Trim Pot Trimmer Potentiometer, 3296W-501

Key Features

• Product Name Trimming Potentiometer;Type 3296W-501;Resistance 500 ohm;Tolerance +10%
• Absolute Minimum Resistance < =1%;Contact Resistance Variation < =3%;Insulation Resistance > = 1G ohm at AC 100V;Withstand Voltage AC 640V
• Power Rating ,315 volts mas 0.5W at 70C, 0W at 125C;Temperature Range -55C to +125C;Temperature Coefficient +250%ppm/C;Temperature Variation 55C, 30min, +125C
• Vibration 10~500Hz, 0.75mm,6h;Collision 390m/s², 4000cycles;Total Size 9.5 x 5 x 17.5mm/0.37" x 0.2" x 0.69"(L*W*H)
• Color Blue;Weight 5g;Package Content 10 x Trimming Potentiometer

Product Description

A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob. Cermet resistive material trimming potentiometer for device interior or printed circuit boards which adjustable the resistance less. Through hole dip mounting Type. Single turn design cermet potentiometer, square linear

Specifications
