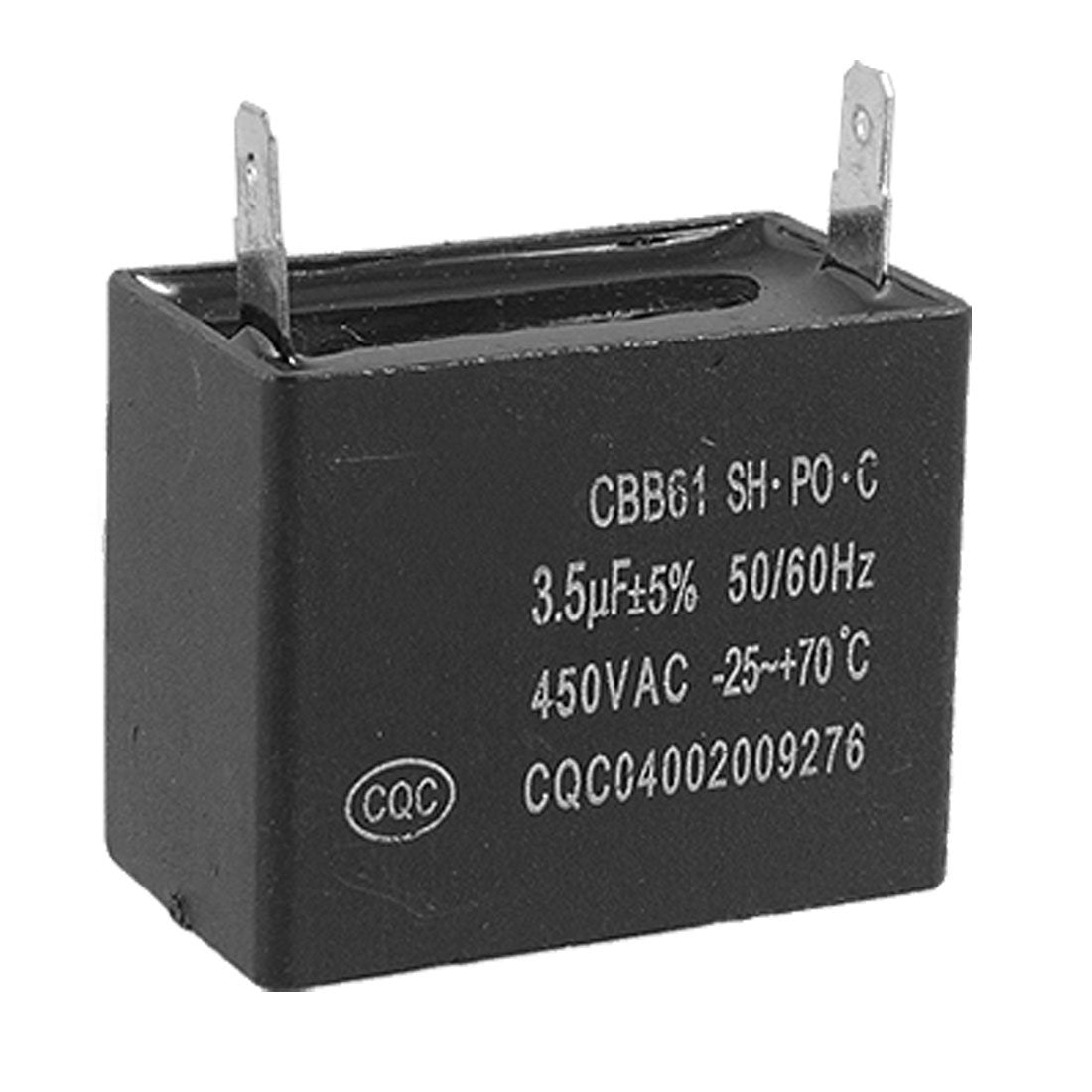

a11111800ux0153 CBB61 3.5uF 5% 450V AC Polypropylene Film Motor Running Capacitor

Key Features

• Product name motor capacitor; housing material plastic; dielectric material metallized polypropylene film
• Model Cbb61; Capacitance 3. 5uF; Tolerance +/-5 percent
• Rated Voltage 450Vac; frequency 50/60Hz; temperature -25~70 Celsius degree
• Pin spacing(approx. ) 3. 4cm/1. 3"; Overall Size 4 x 3. 3 x 4. 1cm/1. 6" x 1. 3" x 1. 6" (l*w*h); color black
• Weight 35G; package content 1 x motor capacitor

Product Description

Two soldering terminals, rectangular design, Lug mounting. It is wound with polypropylene film dielectric, plastic case and epoxy resin end seal. Applied to better working of motor in 50Hz/60Hz frequency AC power system. Widely used in ceiling fan, Centrifugal fan, fan blower, air Conditioner fan etc.
