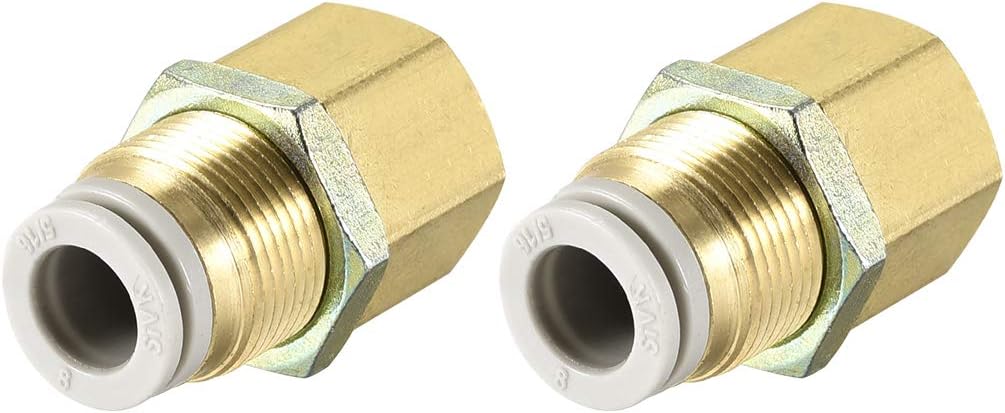

8mm Tube to 1/4PT Female Thread Bulkhead Push to Connect Fitting Copper 2Pcs

Key Features

• [SIZE] Female Thread 1/4PT; Fit for Tube OD 8mm; Style Bulkhead Union.
• [FEATURE] Push to connect, after installation, the direction of the tube can be changed freely.
• [EASY to FASTEN] Outside (and Inside where applicable) hexagonal wrench tightening.
• [APPLICATION] Mainly used for air compression systems, vacuum systems, pneumatic systems.
• [NOTE] Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.

Product Description

Feature:1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.2.Push-to-connect tube connection on one end and male threads on the other end.3.A good release cap can withstand greater and stronger pressure without tripping.4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.5.Elliptical release ring help to connect tube easily by manual, no special tools required.6.Outside (and Inside where applicable) hexagonal wrench tightening.Mounted:1.Cut the pipe flat, no slope2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.Specification:Style: Bulkhead UnionMaterial: Plastic, CopperColor: Golden ToneThread Size: 1/4PTTube Size (OD): 8mmOverall Size : 19 x 31mm / 0.75" x 1.22" (D*H)

Package Content

2Pcs x Quick Fittings
