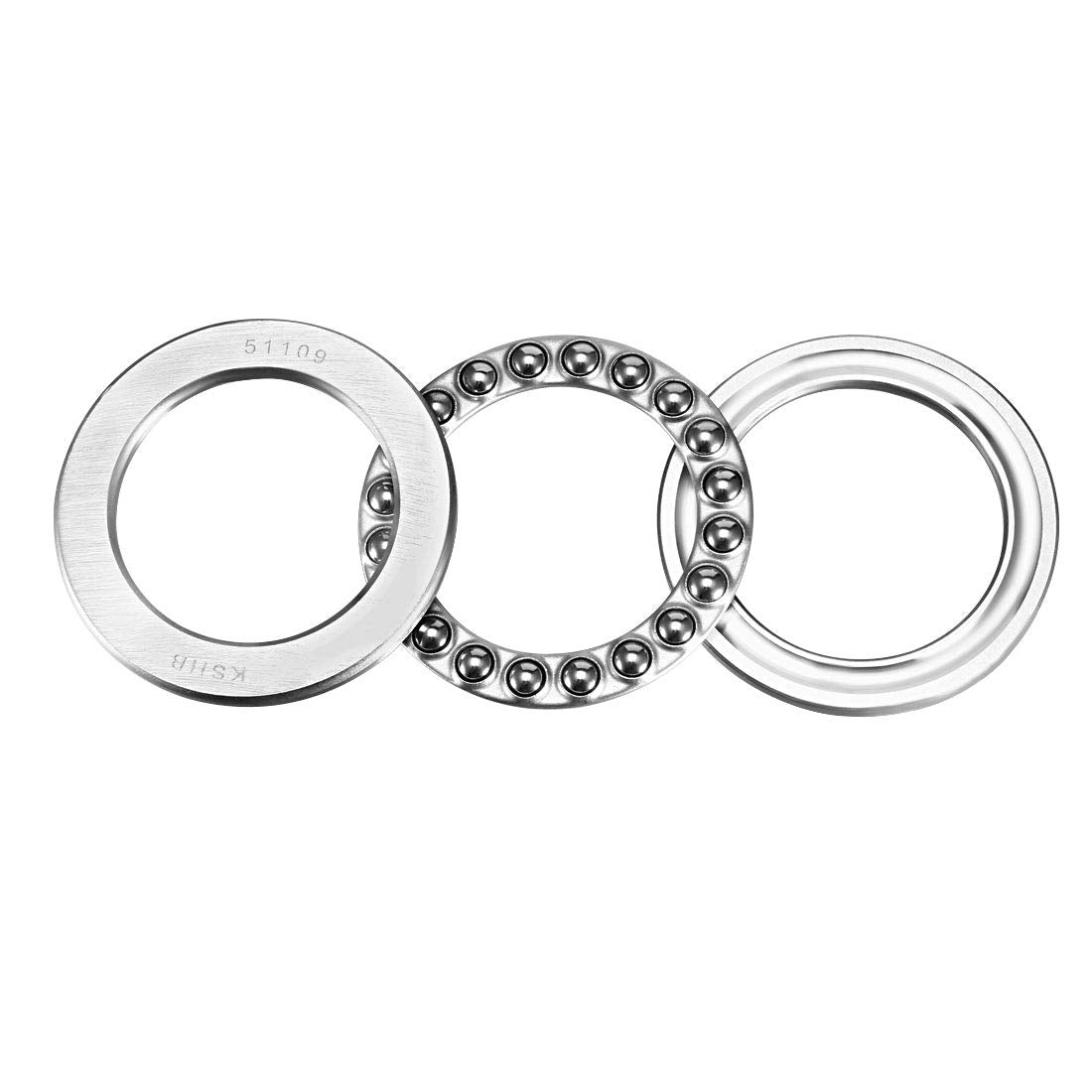

51109 Thrust Ball Bearings 45mm x 65mm x 14mm Chrome Steel ABEC3 Single Row Roller

Key Features

• [SIZE] - Bore Diameter=45mm, Outer Diameter=65mm, Thickness=14mm
• [MATERIAL] - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Steel cage
• [CAPABILITY] - Dynamic Load Rating (Cr) 27.8kN; Static Load Rating (Cor) 69.1kN; Limiting Speed (Grease) 3200rpm, designed for low speed operation and axial loads only
• [APPLICATION] - Can be used for oven turntable, jack, pump, rotating applications, machine tools, automobiles, ect.
• [FEATURES] - The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time

Product Description

Description

Provide P5 Tolerance Single Direction Thrust Ball Bearings of all series. The separable components of thrust ball bearings are interchangeable. Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly. They are designed to accommodate locate a shaft axially, in one direction only. Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance. Specification: Model: 51109 Shaft/Housing Washer Material: Chromium Steel (GCr15) Bearing Ball Material: Chromium Steel (GCr15) Cage Material: Stamping Steel Bore Diameter: 45 mm Outer Diameter: 65 mm Thickness (B): 14 mm Dynamic Load Rating (Cr): 27.8kN Static Load Rating (Cor): 69.1kN Limiting Speed (Grease): 3200rpm Limiting Speed (Oil): 5000rpm Accuracy Class: P5 Number of Pack: 1 Pcs
