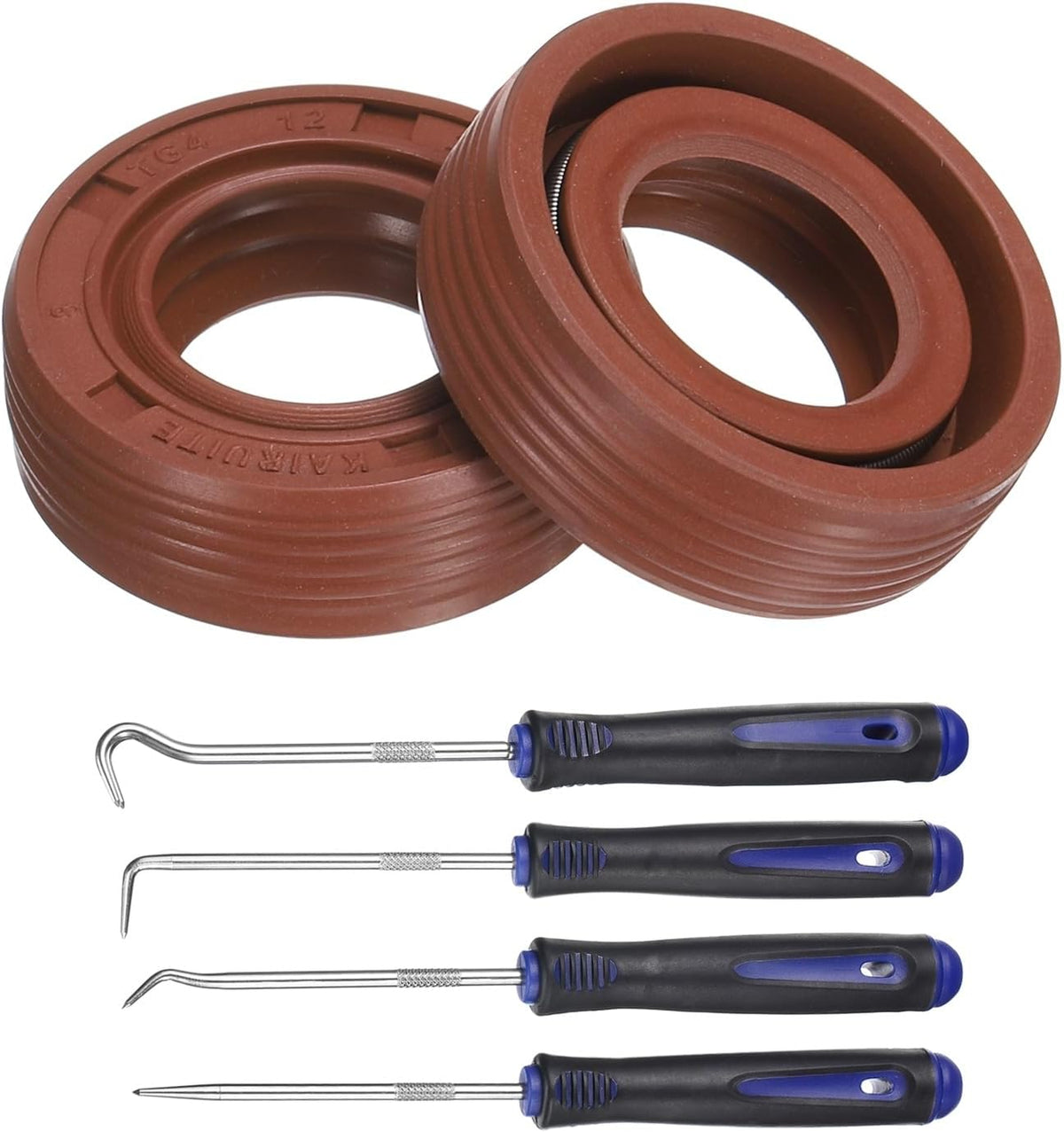

2Pcs Oil Seal, 12x22x7mm TC Fluorine Rubber Double Lip Cover with Hook Kit and Spring for Mechanical Automobile Bearing Shaft, Brown

Key Features

• Size & Package Operating Temperature -25 to 280 degrees Celsius; Working Pressure ＜0.03 MPa; Linear Speed ＜10m/s; Inner Diameter 12mm/0.47 inch; Outer Diameter 22mm/0.87 inch; Thickness 7mm/0.28 inch; Package 2Pcs x Oil Seal, 1Set x Hook Kit(1 x straight hook,1 x 90° angle hook, 1 x 45° angle hook, 1 x bend hook)
• Material The surface of the oil seal is made of fluorine rubber, and the interior is a metal frame, with good mechanical properties and corrosion resistance. It has good tolerance to a variety of petroleum, grease, water, hydraulic oil, and mineral oil, acid resistance, and a long service life
• Design TC type oil seals adopt a double lip design and are equipped with clamping springs. They have good sealing performance and can prevent dust from entering the machine and prevent lubricating oil or other liquids from leaking
• How to Use First, clean the installation surface, then add an appropriate amount of lubricating oil to the installation surface, install the oil seal, and tighten it with the lip of the oil seal facing the direction of the rotating shaft. The product is equipped with an oil seal hook set for replacing old oil seals. Please confirm the required oil seal size before purchasing.
• Wide Application Widely used in bearing parts of industry, automobiles, ships, motorcycles, such as crankshafts, camshafts, differentials, shock absorber, engines, axles, front and rear wheels, or other objects that require bearing seals

Product Description

Size & Package: Operating Temperature: -25 to 280 degrees Celsius; Working Pressure: ＜0.03 MPa; Linear Speed: ＜10m/s; Inner Diameter: 12mm/0.47 inch; Outer Diameter: 22mm/0.87 inch; Thickness: 7mm/0.28 inch; Package: 2Pcs x Oil Seal, 1Set x Hook Kit(1 x straight hook,1 x 90° angle hook, 1 x 45° angle hook, 1 x bend hook) Material: The surface of the oil seal is made of fluorine rubber, and the interior is a metal frame, with good mechanical properties and corrosion resistance. It has good tolerance to a variety of petroleum, grease, water, hydraulic oil, and mineral oil, acid resistance, and a long service life Design: TC type oil seals adopt a double lip design and are equipped with clamping springs. They have good sealing performance and can prevent dust from entering the machine and prevent lubricating oil or other liquids from leaking

How to Use

First, clean the installation surface, then add an appropriate amount of lubricating oil to the installation surface, install the oil seal, and tighten it with the lip of the oil seal facing the direction of the rotating shaft. The product is equipped with an oil seal hook set for replacing old oil seals. Please confirm the required oil seal size before purchasing. Wide Application: Widely used in bearing parts of industry, automobiles, ships, motorcycles, such as crankshafts, camshafts, differentials, shock absorber, engines, axles, front and rear wheels, or other objects that require bearing seals ›

Specifications
