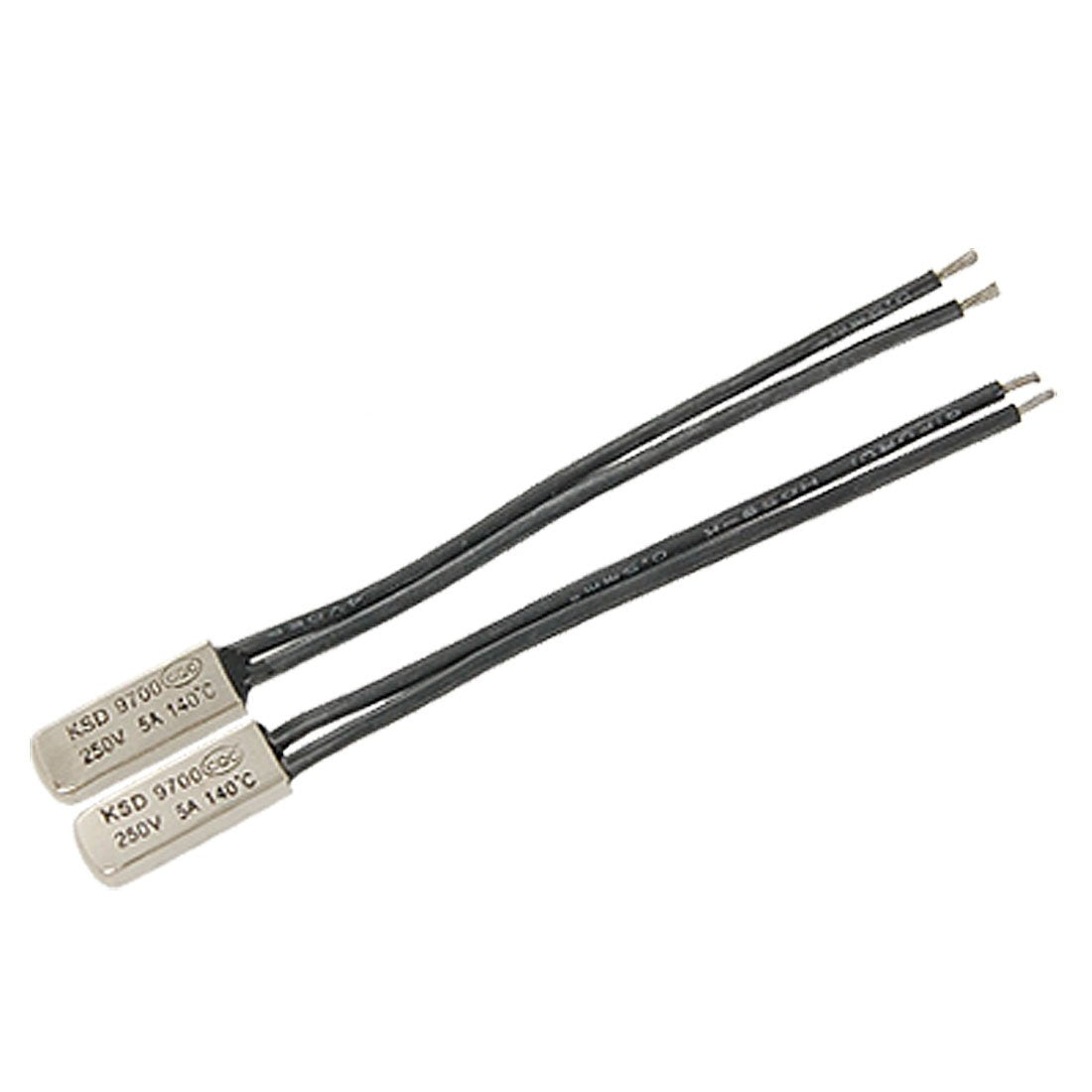

250V 5A KSD9700 Bimetal Thermostat Temperature Switch, 140C, N.C

Key Features

• Product name temperature control switch; material plastic, metal; Type NC
• Contact capacity 250V 5A; max rated disconnection temperature 140 degree
• Active temperature 140 â± 5 degree; reset temperature 105 â± 12 degree; color black, Silver Tone
• Contact stick Length 70mm/2.9"; head Size 20 x 7 x 3mm/0.8" x 0.3" x 0.1"(L*w*t)
• Weight 8G; package content 2 x temperature control switch

Product Description

Ksd9700 product is a kind of thermostat which adopt the Bimetal disc as the temperature sensing element. The Bimetal disc is in free state and the contacts are closed when the electrical appliance is working in normal condition. When the ambient temperature raises to the preset operating temperature, the contacts open as the Bimetal disc deforms to jump when being heated, then the circuit is cut off to control the temperature. Then the contacts will close automatically to cut on the circuit when the electrical appliance is cooled down to the reset temperature. Widely used in home appliance; motor and electrical equipment, such as air Conditioner motor, transformer, thermal appliances, etc.
