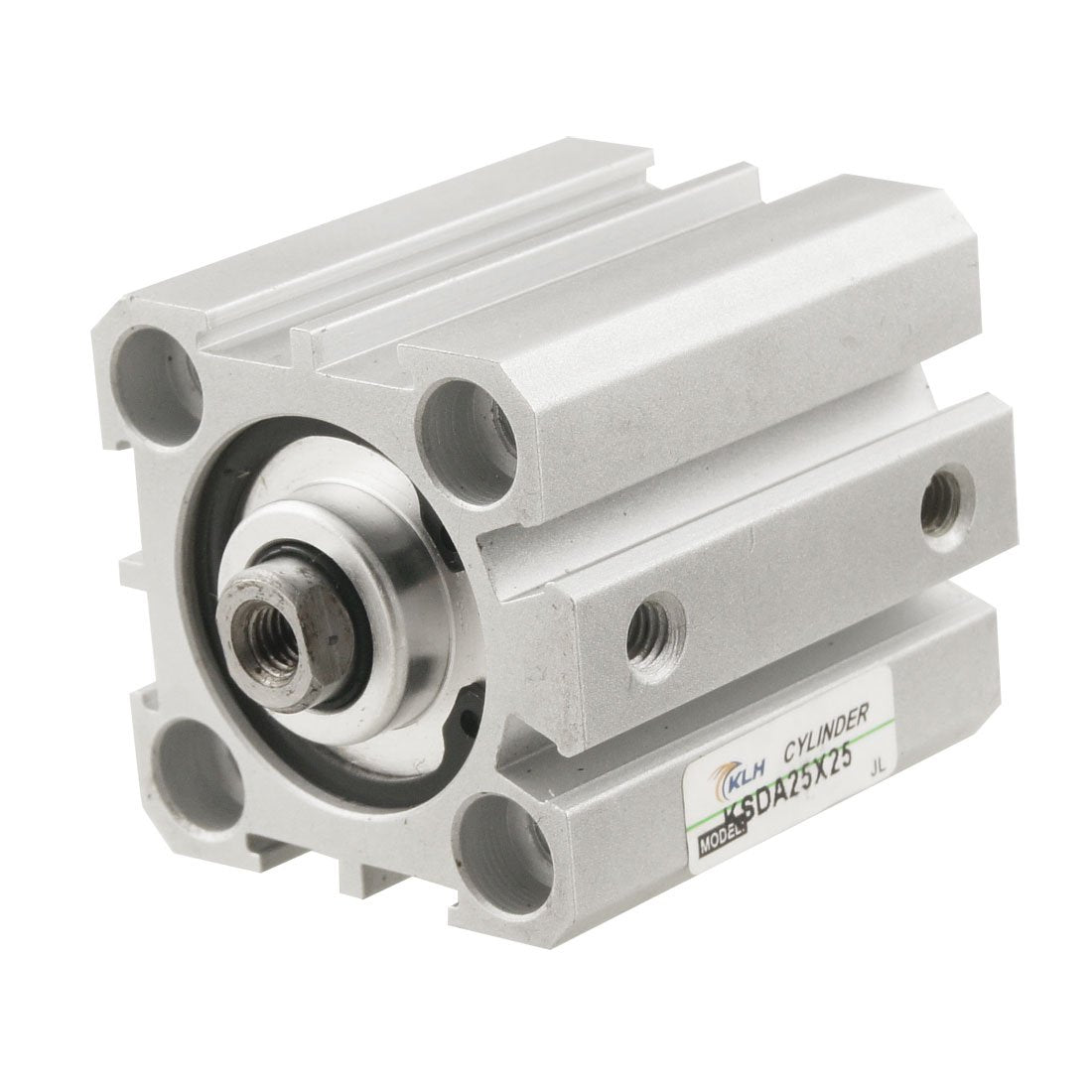

SDA25x25 25mm Bore 25mm Stroke Double Acting Miniature Air Cylinder

Key Features

• Product Name Air Cylinder;Model SDA25x25;Action Type Double Action
• Bore 25mm / 0.98";Stroke 25mm / 0.98";Max Presssure 1.0Mpa / 10.2Kg/cm2 / 145PSI
• Rod Diameter 10mm / 0.39"';Rod Thread Diameter 5mm / 0.19";Air Hole Diameter 4.5mm / 0.17"
• Mounting Hole Diameter 5mm / 0.19";Mounting Hole Distance(center to center) 28 x 28mm / 1.1" x 1.1" (L * W);Overall Size(Approx) 40 x 40 x 46mm / 1.5"x 1.5"x 1.8"(L*W*H)
• Material Aluminum Alloy;Weight 142g;Package Content 1 x Air Cylinder

Product Description

25mm bore and 25mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.

Specifications
