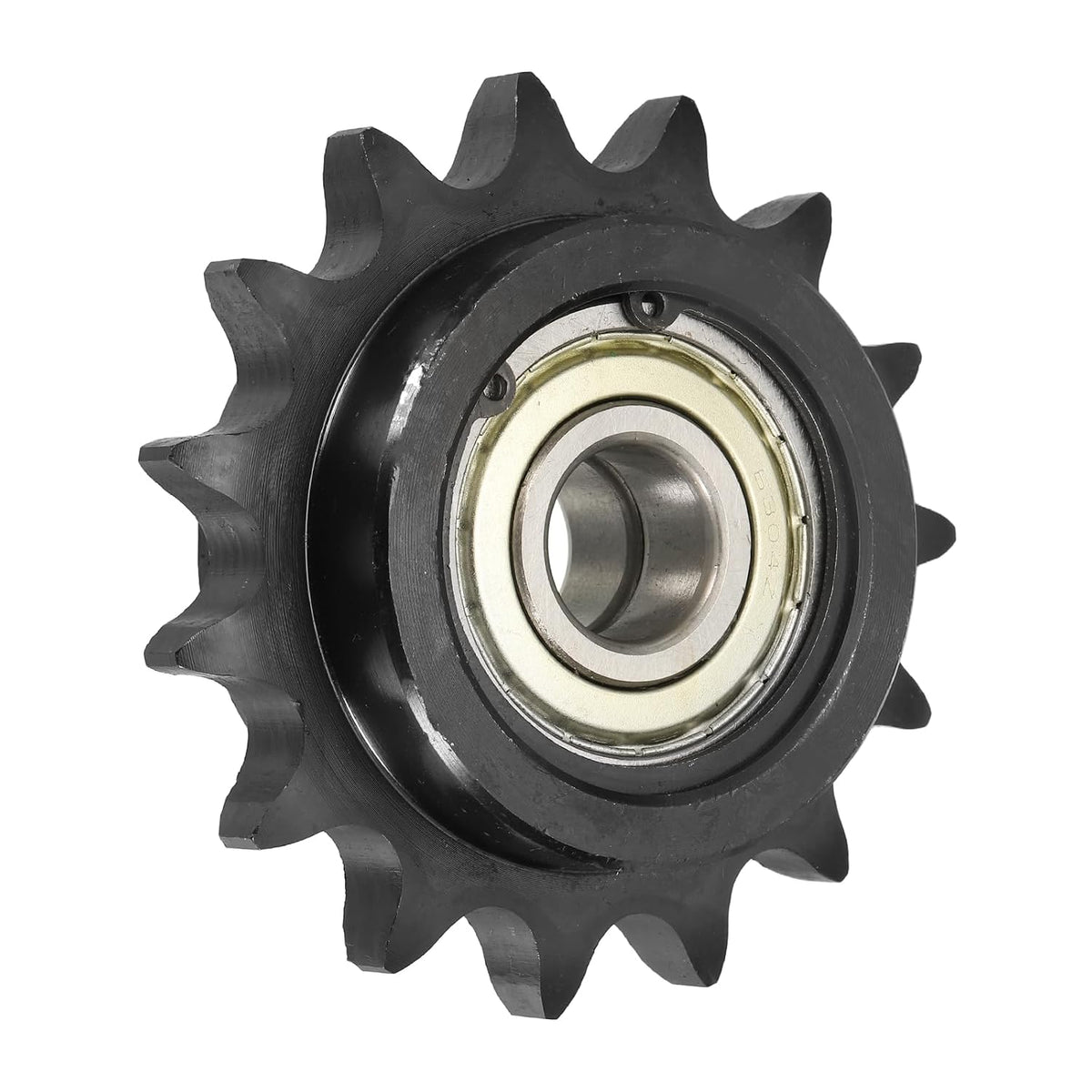

#60 Roller Chain Idler Sprocket, Type C 20mm Bore 3/4" Pitch 15 Tooth Tensioner with Double Bearing, Black Oxide Finished 1045 Steel for ANSI #60 (DIN/ISO 12A) Chains

Key Features

• Compatible Chain ANSI #60 (DIN/ISO 12A); Number of Teeth 15; Bearing Model 6304; Bearing Quantity Double Bearing; Outside Diameter 99mm / 3.9"; Bore Diameter 20mm / 0.79"; Pitch 19.05mm / 3/4"; Raised Hub Height 26mm / 1.02"; Tooth Thickness 12mm / 0.47"; Roller Diameter 11.91mm / 0.469"; Total Width 38mm / 1.5"; Package Content 1 x Idler Sprocket
• Robust Material The roller chain idler sprocket is made of 1045 steel, heat-treated for high hardness and wear resistance. The blackened surface treatment provides rust and corrosion resistance, ensuring durability.
• Precision Design The idler sprocket features a boss design to ensure stable installation and chain alignment. Internally, it incorporates sealed bearings for smooth rotation and low resistance. Each roller chain idler has strong teeth that engage with the chain, effectively guiding and tensioning it.
• Easy Installation Before installation, ensure the shaft diameter and chain specifications match, ensuring at least three teeth on the sprocket are engaged with the chain. During use, the idler sprocket's speed should not exceed the permissible speed of the drive sprocket of the same size.
• Wide Applications The C-type idler sprocket is commonly used for chain guidance and tensioning in machinery. Suitable for chain drive systems in go-karts, ATVs, off-road motorcycles, mini bicycles, wood splitters, and other equipment, widely used in milling machines, drilling machine or other machinery transmission occasions.

Product Description

DescriptionRobust Material: The roller chain idler sprocket is made of 1045 steel, heat-treated for high hardness and wear resistance. The blackened surface treatment provides rust and corrosion resistance, ensuring durability.Precision Design: The idler sprocket features a boss design to ensure stable installation and chain alignment. Internally, it incorporates sealed bearings for smooth rotation and low resistance. Each roller chain idler has strong teeth that engage with the chain, effectively guiding and tensioning it.Easy Installation: Before installation, ensure the shaft diameter and chain specifications match, ensuring at least three teeth on the sprocket are engaged with the chain. During use, the idler sprocket's speed should not exceed the permissible speed of the drive sprocket of the same size.Wide Applications: The C-type idler sprocket is commonly used for chain guidance and tensioning in machinery. Suitable for chain drive systems in go-karts, ATVs, off-road motorcycles, mini bicycles, wood splitters, and other equipment, widely used in milling machines, drilling machine or other machinery transmission occasions.

Specifications

Material: 1045 Steel Finish: Black OxideCompatible Chain: ANSI #60 (DIN/ISO 12A)Number of Teeth: 15Bearing Model: 6304Outside Diameter: 99mm / 3.9"Bore Diameter: 20mm / 0.79"Pitch: 19.05mm / 3/4"Raised Hub Height: 26mm / 1.02"Tooth Thickness: 12mm / 0.47"Roller Diameter: 11.91mm / 0.469"Total Width: 38mm / 1.5"Bearing Quantity: Double Bearing

Package Content

1 x Idler Sprocket
