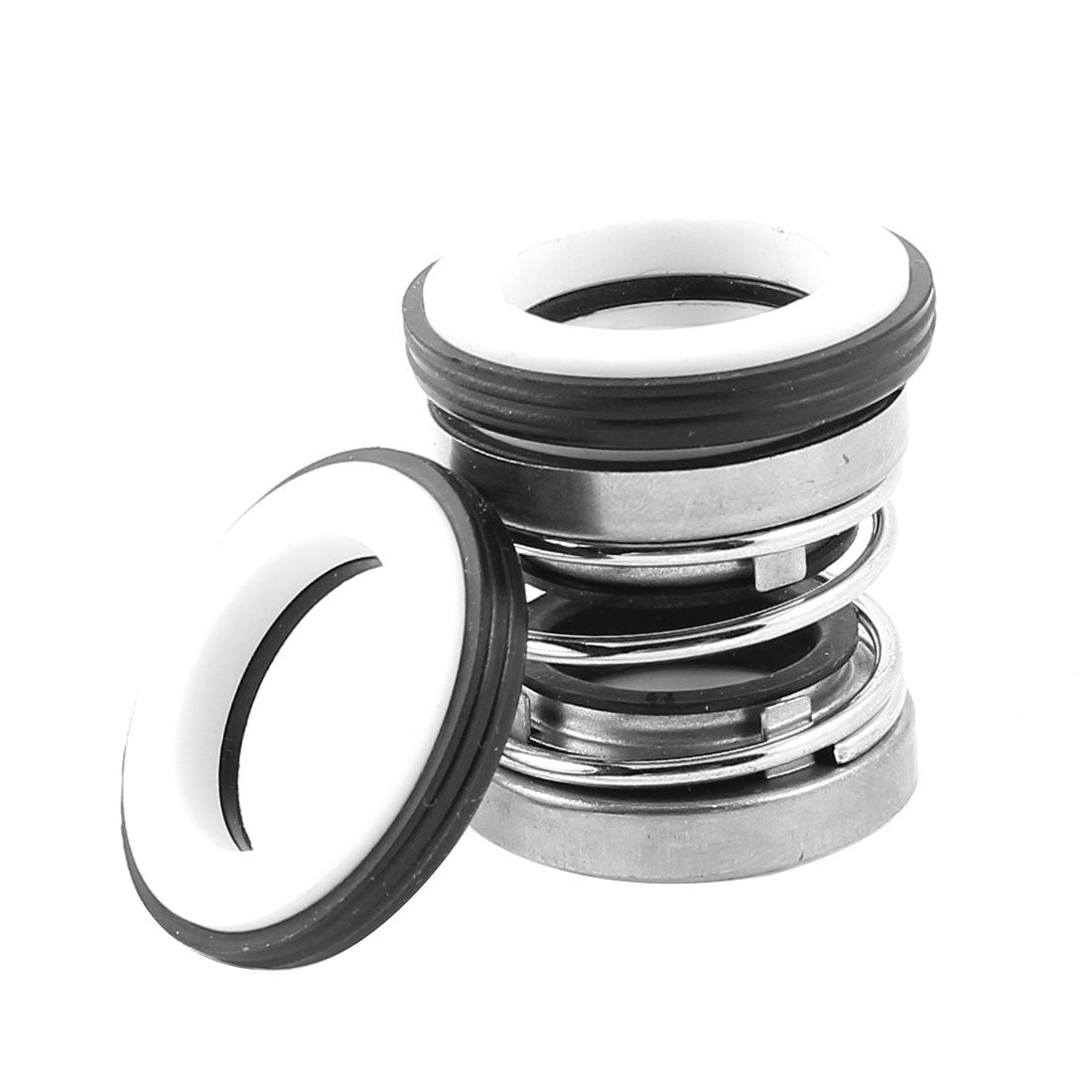

SB-20 Ceramic Rotary Ring Rubber Bellows Pump Mechanical Seal 20mm (2 Sealing Ring)

Key Features

• Product Name Bellow Shaft Seals;Model 202-20;Rotary Ring Size 20 x 33 x 13mm/0.79" x 1.3" x 0.51" (Inner Dia.*Outer Dia.*H)
• Stationary Ring Size 20 x 36 x 6mm/0.79" x 1.42" x 0.24" (Inner Dia.*Outer Dia.*H);Max. Diameter 36mm/1.4";Overall Size 20 x 36 x 46mm/0.79" x 1.42" x 1.8" (Inner Dia.*Outer Dia.*H)
• Stationary Ring Material Ceramic, Rubber;Rotary Ring Material Rubber
• Spring and Punched Parts Material Metal;Color Black, White, Silver Tone
• Net Weight 58g;Package 1 x Bellow Shaft Seals with 2 Sealing Ring

Product Description

Features in single coil and inbuilt spring, this mechanical seal is safety, ease in installation and strong generality.The general purpose of Bellow seals design is for sealing of fluids with easy installation.Generally used in hot & cold-water pumps, Oil pumps, refrigeration compressor & fuel injection pumps.Package : 1 x Bellow Shaft Seals with 2 Sealing Ring

Specifications
