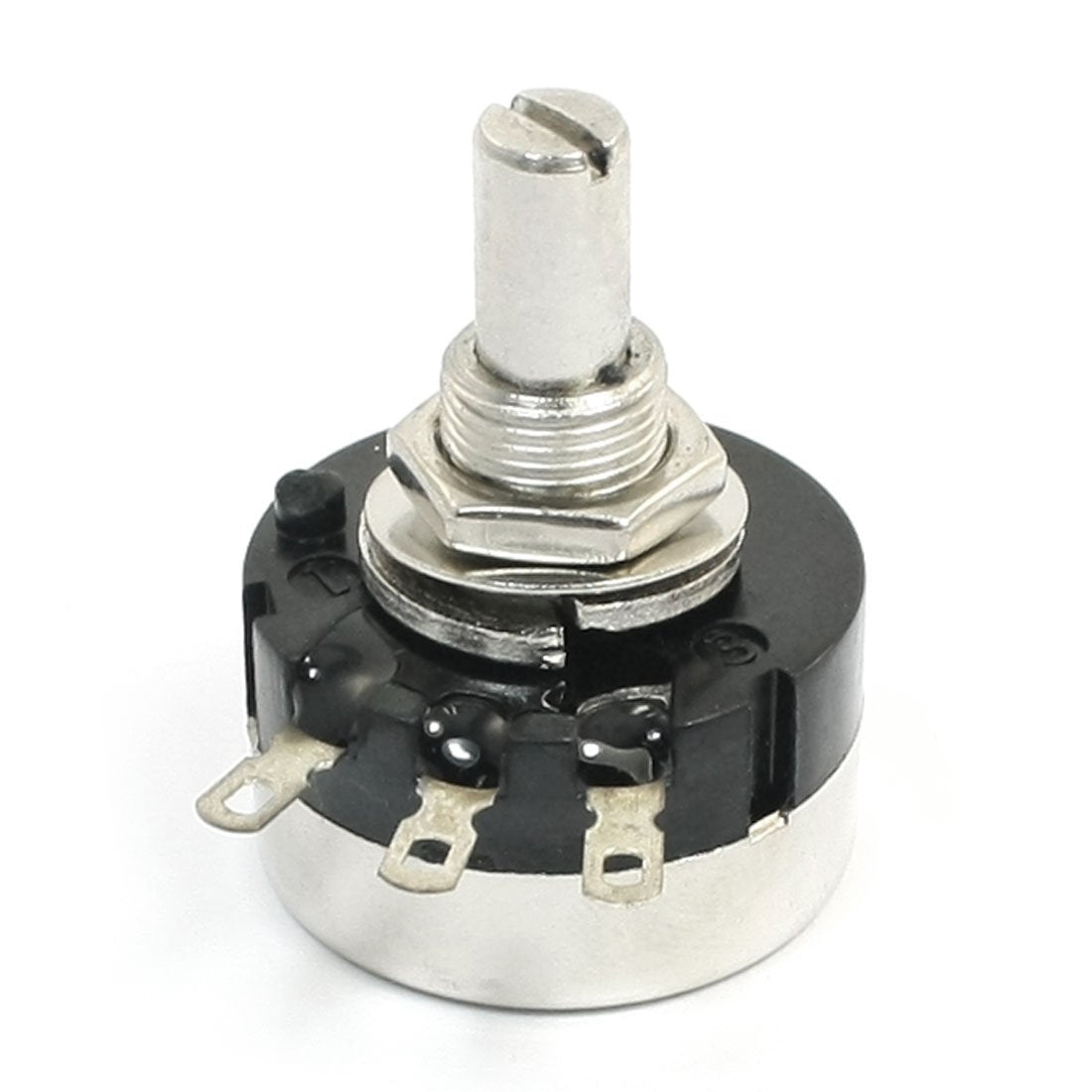

RV24YN20S 20Kohm B20K Resistance 6mm Shaft Single Turn Wirewound Rotary Taper Potentiometer Pot

Key Features

• Product Name Potentiometer;Model RV24YN20S;Technology Carbon Composition;Resistance Value 20K ohm
• Turn Number Single Turn (Type B);Adjustment Type Top Adjustment;Features Round Shaft
• Terminals Number 3;Body Size 24 x 13mm /0.95" x 0.5"(D * H);Screw Thread Dia. 8.6mm / 0.33"
• Shaft Diameter 6mm / 0.24";Shaft Length 10mm / 0.4";Total Length 33mm / 1.3"
• Color Black, Silver Tone;Net Weight 20g;Package Content 1 x Carbon Potentiometer

Product Description

Features

3 terminals, single turn, carbon rotary taper potentiometer. Main used to control electrical devices such as volume controls on audio equipment. Knurled shaft with split design for push-on knob.

Specifications
