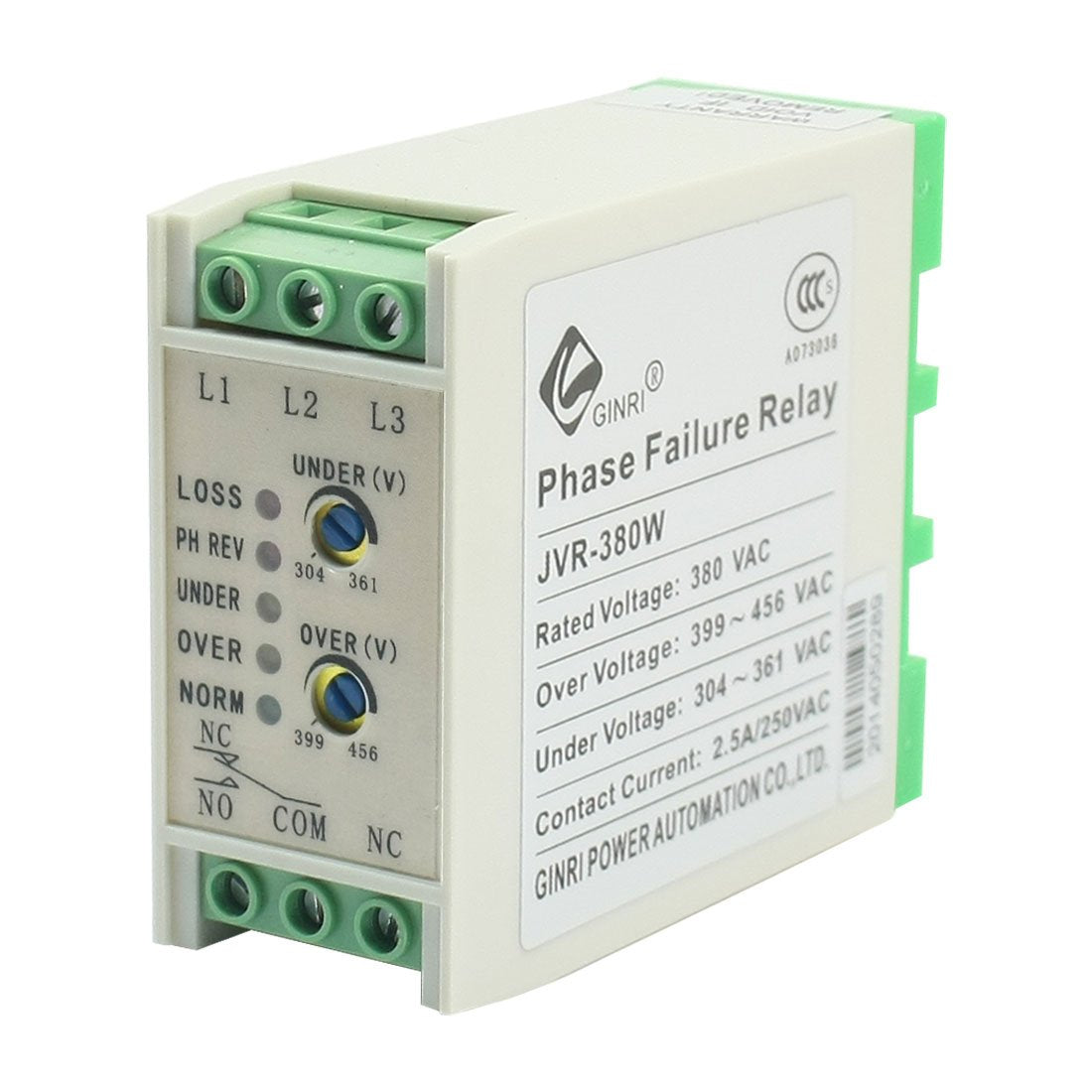

Over/Under Voltage Adjustable Phase Sequence Relay, JVR-380W AC, 380V

Key Features

• Product name Voltage and phase relay; model jvr-380w; Type three-phase, SPDT
• Rated Voltage AC 380V; over Voltage setting AC 399v-456v; under Voltage setting AC 304v-361v
• Contact current 2. 5A, AC 250V; conventional thermal current 5A
• Dimensions 76 x 30 x 68mm/3. 0" x 1. 2" x 2. 7"(L*w*h); color white, Green
• Weight 123G; package content 1 x Voltage and phase relay

Product Description

Features

phase protection; phase sequence protection; under voltage protection; over voltage protection; phase unbalance protection. &let; span style="color:#FF0000; "; warning! this product is generally a three-phase power supply side of the sample, shall not be installed in the inverter current output side.

Specifications
