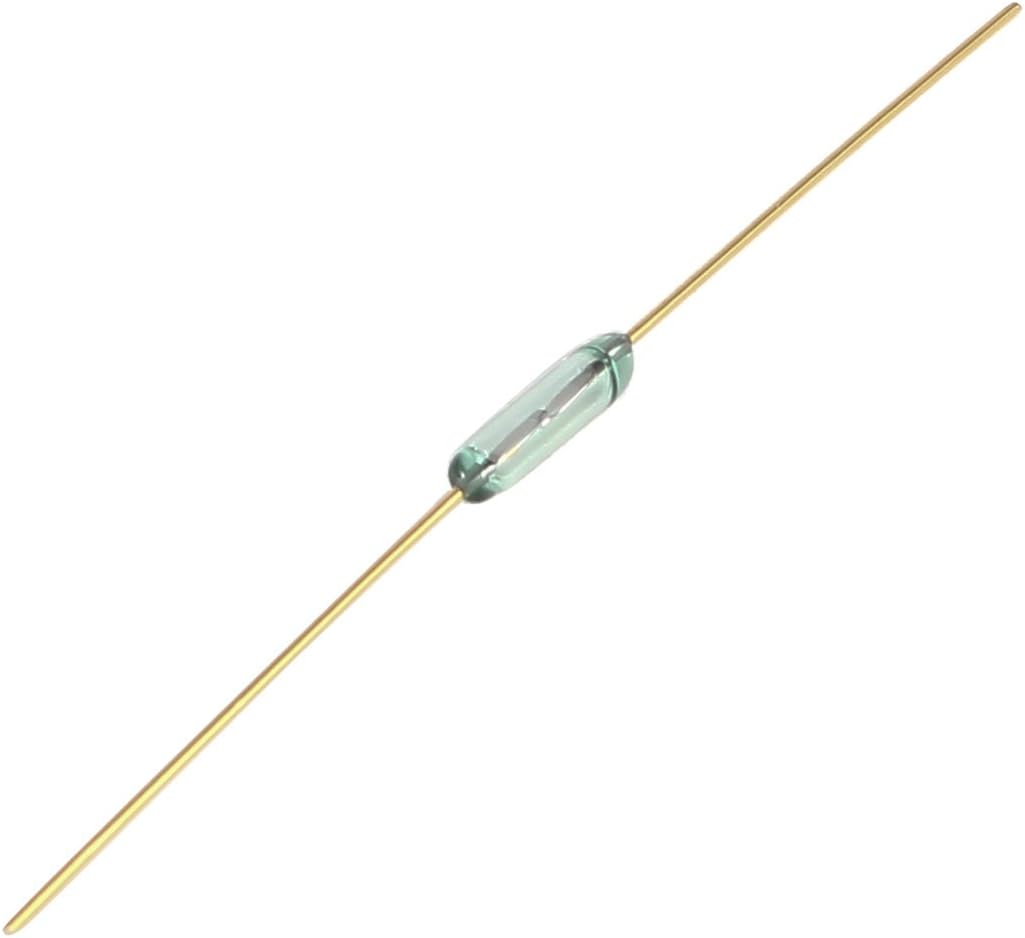

MKA07101 Gold Tone Round Leads Green Glass Tube NO Reed Switch 7mm

Key Features

• Product Name Reed Switch;Model MKA07101;Contact Type NO
• Max. Switching Voltage DC 100V;Max. Carry Current 0.5A;Max. Initial Contact Resistance 0.15Ω
• Min. Insulation Resistance 0.01MΩ;Glass Tube Size (Approx.) 7 x 2 mm/ 0.28" x 0.08" (L*D);Lead Terminal Size(Approx.) 0.35 x 17mm/ 0.014" x 0.67"(D*L)(Each Side)
• Total Length (Approx.) 40mm/ 1.6";Color Gold Tone, Green
• Weight 1g;Package Content 1 x Reed Switch

Product Description

The reed switch contains a pair (or more) of magnetizable, flexible, metal reeds whose end portions are separated by a small gap when the switch is open. The reeds are hermetically sealed in opposite ends of a tubular glass envelope.The reed switch's application is to detect the opening of a door, when used as a proximity switch for a burglar alarm.
