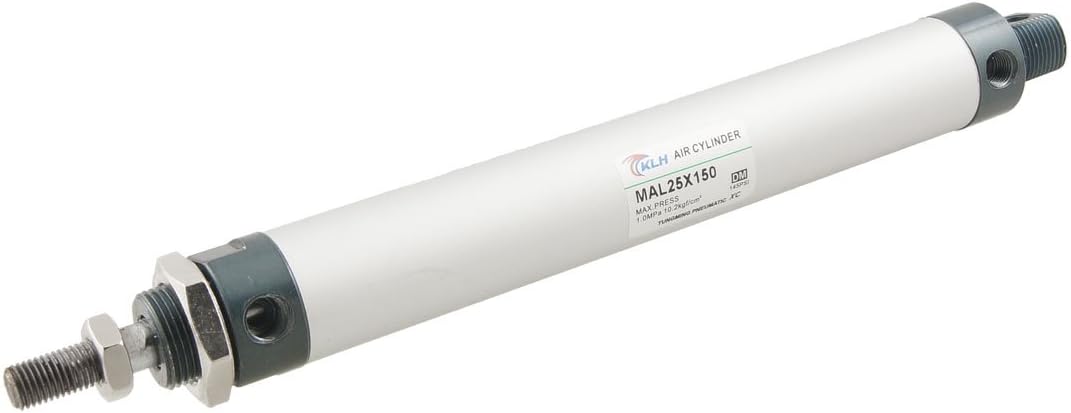

MAL25x150 25mm Bore 150mm Stroke Single Rod Pneumatic Air Cylinder

Brand: LinkMejor

★★★★☆ 55 ratings | 35 answered questions

$28.89

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Product Name Pneumatic Cylinder;Model MAL25x150;Action Type Double Acting;Rod Type Single Rod
Fluid Air;Power Pneumatic;Bore 25mm / 0.98";Stroke 150mm / 5.9"
Max.Pressure 1.0MPa / 10.2Kg/cm2 / 145PSI;Rod Diameter 10mm / 0.39";Rod Thread Diameter 10mm / 0.39";Air Hole Diameter 8.8mm / 0.34"
Blue End Thread Diameter 22mm / 0.86";Blue End Hole Diameter 8mm / 0.31";Size 280 x 30mm/ 11" x 1.1" (L*D);Material Stainless Steel
Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

Product Name : Pneumatic Cylinder;Model : MAL25x150;Action Type : Double Acting;Rod Type : Single Rod Fluid : Air;Power : Pneumatic;Bore : 25mm / 0.98";Stroke : 150mm / 5.9" Max.Pressure : 1.0MPa / 10.2Kg/cm2 / 145PSI;Rod Diameter : 10mm / 0.39";Rod Thread Diameter : 10mm / 0.39";Air Hole Diameter : 8.8mm / 0.34" Blue End Thread Diameter : 22mm / 0.86";Blue End Hole Diameter : 8mm / 0.31";Size : 280 x 30mm/ 11" x 1.1" (L*D);Material : Stainless Steel Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc. ›
