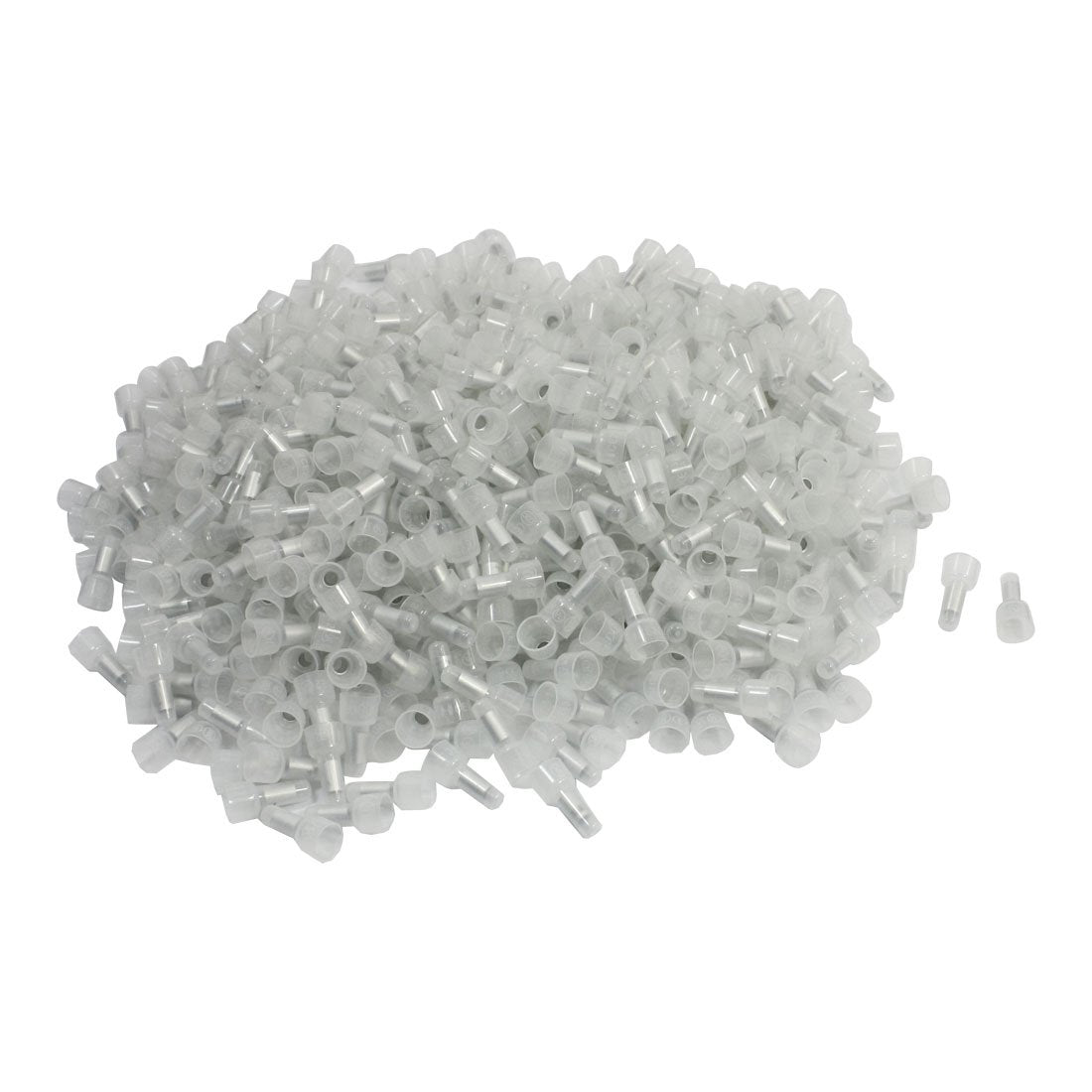

a14050700ux0834 CE2X 22-14AWG Fully Insulated Closed End Wire Connector Cap (Pack of 1000)

Key Features

• Product Name Closed End Wire Connector;Model CE2X;for Wire Size 22-14AWG
• Temperature Rating(Max.) 105 °C(221°F);Voltage Rating(Max.) 300V;Tin-plated Tube Inner Dia 3.1mm/0.12"
• Tin-plated Tube Outer Dia 5mm/ 0.2";Tin-plated Tube Length 12mm/ 0.47";Outlet Dia 8mm/ 0.31"
• Total Size (Each) 9 x 19mm/ 0.35" x 0.75" (D*L);Color White;Material Plastic, Metal
• Weight 263g;Package 1000(± 2%) x Closed End Wire Connector

Product Description

This closed end connectors with internal tin-plated tube to ensure perfect connections between wires.brJust strip of the wire and insert securely inside the connector crimp by crimping tool.br.
