Home ›a12120300ux0413 3 Pole Thermal Overload Relay N...

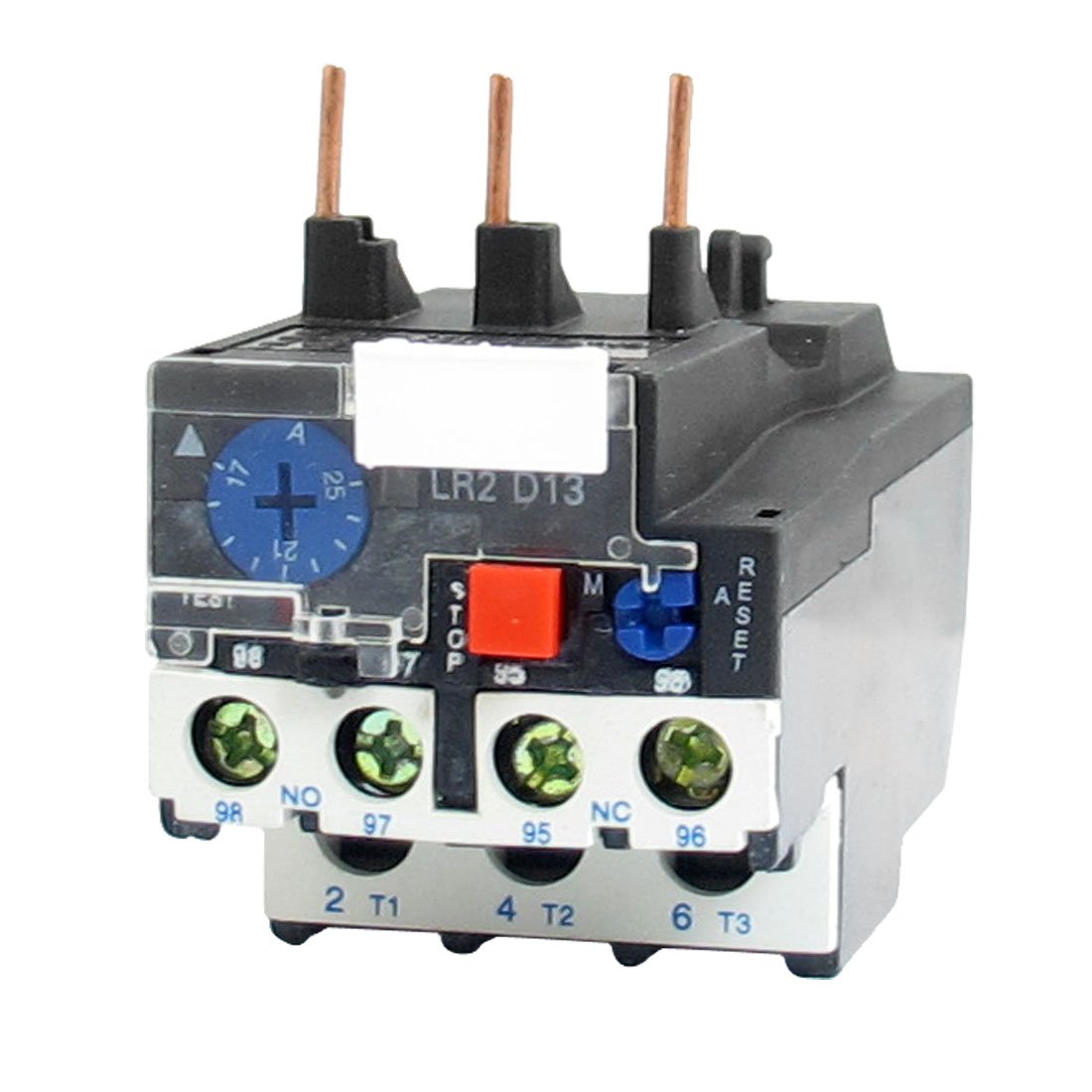

a12120300ux0413 3 Pole Thermal Overload Relay NO NC LR2-13, AC 660V, 17 Amp, 25 Amp, 17-25 Amp

Brand: LinkMejor
★★★★☆ 86 ratings | 16 answered questions
$14.49
✓ In Stock
✓ Secure transaction
🚚 Free delivery available
🔄 30-day returns
📦 Ships from linkmejor.com

Key Features

  • Product Name Thermal Overload Relay;Model LR2-13;NO 98, 97
  • NC 96, 95;Setting Current 17-25A;Ui 660V
  • Ith 5A;Tripping Class 10A;Pole 3 Pole
  • Total Size (Approx.) 47 x 44 x 87mm/ 1.9" x 1.7" x 3.4"(L*W*T);Color As Picture Shown
  • Weight 157g;Package Content 1 x Thermal Overload Relay

Product Description

Thermal overload relay is suitable for overload and phase-failure protection of AC motors with frequency of 50/60 Hz, voltage up to 660V. 3 phase, features phase-failure protection, temperature compensation, stop button, Test button and manual/automatic reset.

Specifications

Item Weight 5.53 Ounces
