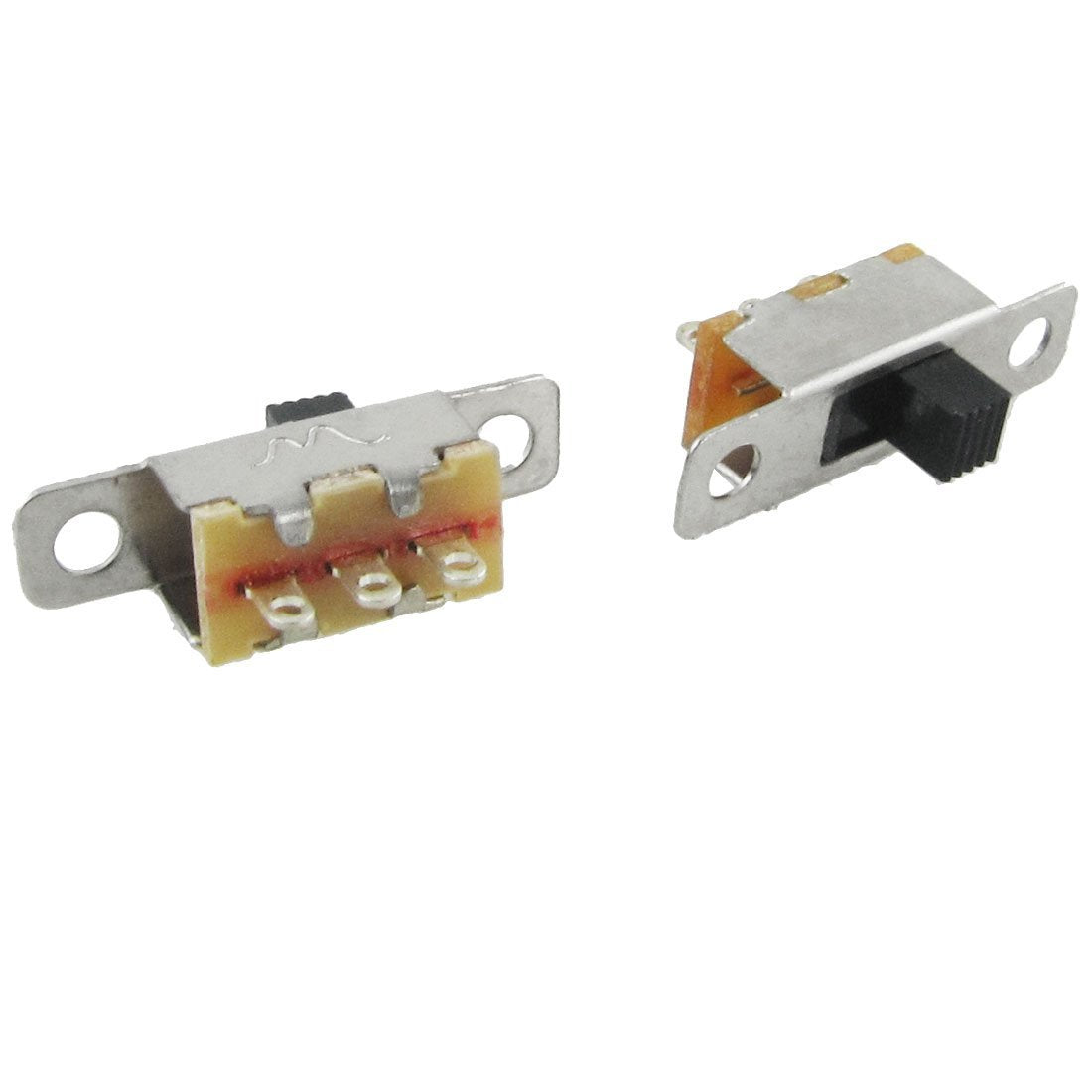

5 Pcs x On-Off 2 Position SPDT 1P2T Panel Mini Slide Switch Solder Lug SS12F15G3

Brand: LinkMejor

★★★★☆ 465 ratings | 45 answered questions

$9.19

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Product Name Vertical Slide Switch;Model No. SS12F15-G3;Position 2;Pins Design 3 Pins ( Single Rows )
Contact Type 1P2T;Rating DC 50V, 0.5A;Contacts Resistance 30Mohm;Insulation Resistance 100Mohm
Minimum Load DC 500V;Dielectric Strengths AC 500V / 1 minute;Life Test 10000 cycles/ minute;Knob Height 3mm / 0.12"
Pitch 3mm / 0.12";Mounting Hole Diameter 2.32mm / 0.09";Overall Size(Approx) 19 x 5 x 10mm / 0.75" x 0.2" x 0.39"(L * W* H);Material Plastic & Metal
Color As picture shown;Weight 5g;Package 5 x Vertical Slide Switch

Product Description

Features

Easy Structure, Mini Body, 3 Terminal, Vertical Handle,1 Pole 2 Throw, Sliding Knob Actuator. Widely used to control operation of many small power electronic projects, including volume and other controls for dimmer controls for lights. etc.Also a great component for DIY.
