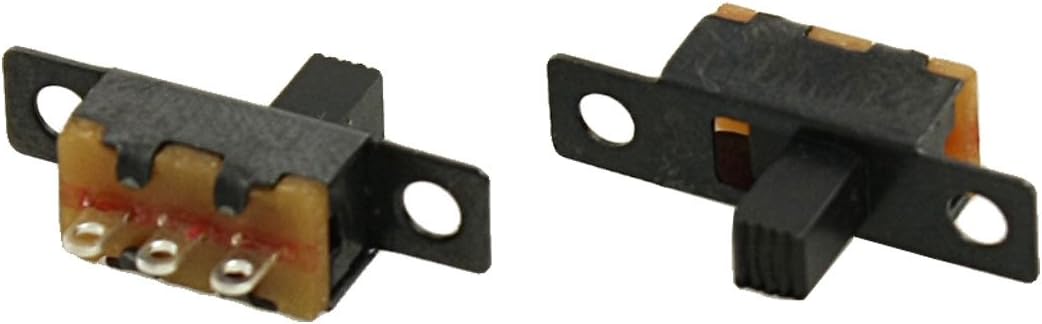

5 Pcs 50V 0.5A 3 Pin 2 Position On/OFF 1P2T SPDT Slide Switch 3 Pin

Key Features

• Product Name Slide Switch;Model No. SS12F15-G5;Type 1P2T;Contact Type 2 Positions, On/Off
• Pins Quantity 3 Pins ( Single Row );Rating DC 50V, 0.5A;Contacts Resistance 30MΩ;Insulation Resistance 100MΩ
• Minimum Load DC 500V;Dielectric Strengths AC 500V / 1 minute;Life Test 10000 cycles/ minute;Overall Size 19.8 x 5.6 x13mm/ 0.78" x 0.22" x 0.51" (L*W*H)
• Pin Size 3 x 1.5mm/ 0.12" x 0.06" (L*W);Pins Pitch 1.4mm/ 0.055";Knob Size 3 x 3 x 5mm/ 0.12" x 0.12" x 0.2" (L*W*H);Mounting Hole Dia 2.2mm/ 0.087"
• Material Plastic, Metal, Electronic Parts;Color Black;Weight 5g;Package 5 x Slide Switch

Product Description

About this item Product Name : Slide Switch;Model No. : SS12F15-G5;Type : 1P2T;Contact Type : 2 Positions, On/Off Pins Quantity : 3 Pins ( Single Row );Rating : DC 50V, 0.5A;Contacts Resistance : 30MΩ;Insulation Resistance : 100MΩ Minimum Load : DC 500V;Dielectric Strengths : AC 500V / 1 minute;Life Test : 10000 cycles/ minute;Overall Size : 19.8 x 5.6 x13mm/ 0.78" x 0.22" x 0.51" (L*W*H) Pin Size : 3 x 1.5mm/ 0.12" x 0.06" (L*W);Pins Pitch : 1.4mm/ 0.055";Knob Size : 3 x 3 x 5mm/ 0.12" x 0.12" x 0.2" (L*W*H);Mounting Hole Dia : 2.2mm/ 0.087" Material : Plastic, Metal, Electronic Parts;Color : Black;Weight : 5g;Package : 5 x Slide Switch ›
