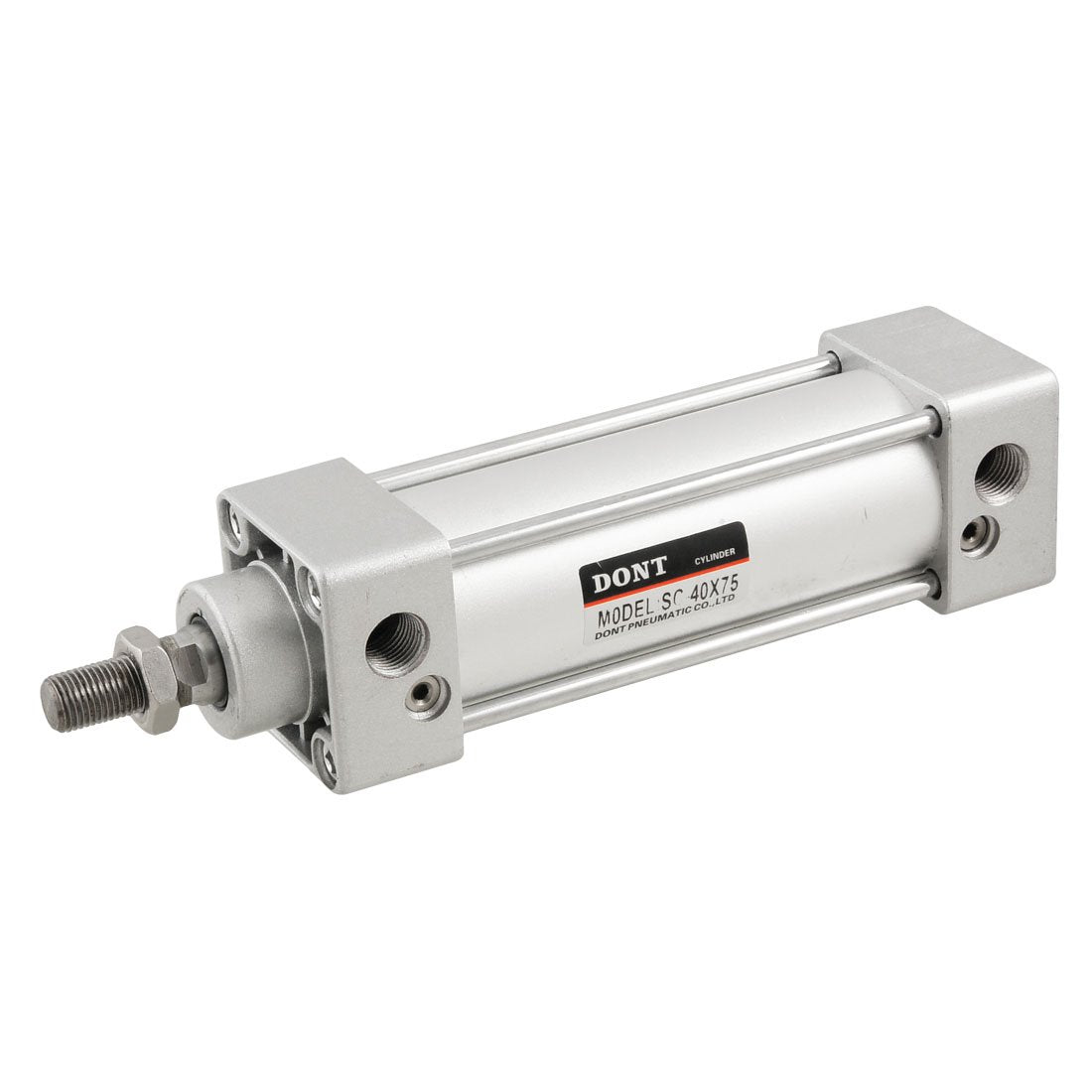

40mm Bore 75mm Stroke Stainless Steel Mini Pneumatic Air Cylinder

Key Features

• Product Name Air Cylinder;Model SC40X75;Action Double Action
• Rod Type Single Rod;Bore 40mm/ 2.4";Stroke 75mm/ 3"
• Piston Rod Diameter 16mm/ 0.63";Thread Diameter 11.7mm/0.46";Thread Hole Diameter(Each) 12mm/0.47"
• Overall Size(Approx) 215 x 50 x 50mm/ 8.5" x 2" x 2" (L*W*H);Material Stainless Steel, Aluminum
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

Double action and single rod design. Aluminum cylinder end cover, stainless steel bucket. Precision stainless steel piston rod for long lifetime. Two screw hole connections to get the air in and out, and a rod connected to the plunger that goes in and out. Even at lower pressures, air cylinders can still move very fast and deliver quite a lot push, so always be very careful around.
