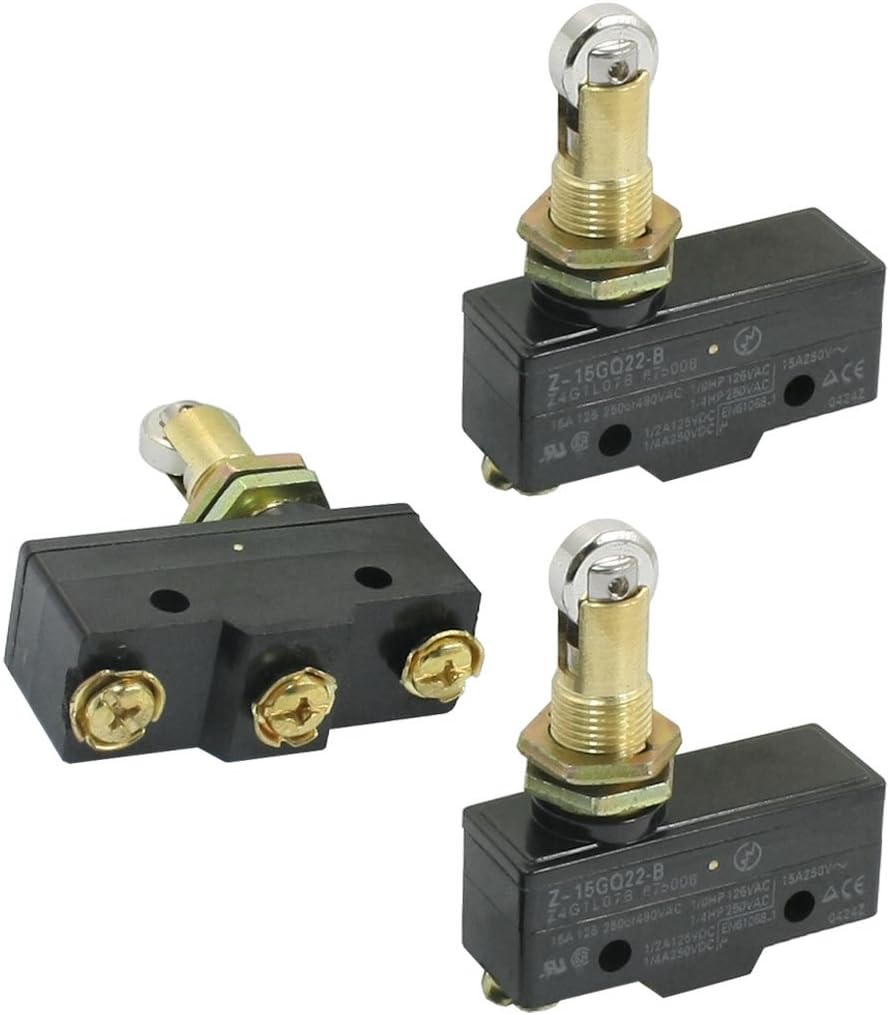

3Pcs Z-15GQ22-B SPSD 1NO 1NC Panel Mount Roller Plunger Limit Switch

Key Features

• Product Name Limit Switch;Model No. Z-15GQ22-B;Mounting Type Panel Mount;Contact Configuration 1NO,1NC(SPDT)
• Terminals 3 Screw Terminal;Actuator Type Parallel Roller Plunger;Voltage, Current AC 125V/ 250V/ 480V 15A;Switch Body Size 5 x 1.8 x 2.3cm / 1.97 x 0.7 x 0.9"(L*W*H)
• Fixing Holes Dia. 4mm/ 0.16";Distance Between Centers of Fixing Holes 2.5cm /1";Roller Actuator Size Height from Body ~3.4cm / 1.34”
• Roller Dia 12.5mm/ 0.49" Roller Dia 12.5mm/ 0.49";Thread Dia 12mm/ 0.47" Thread Dia 12mm/ 0.47";Materials Plastic, Metal, Electric Parts
• Color Black & Brass Tone;Net Weight 152g;Package Content 3 x Limit Switch

Product Description

Features

Parallel Roller Lever Actuator, 1NO+1NC Conatact Congfiguration, 3 Screw Terminals. Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. Designed to control the movement of a mechanical part.
