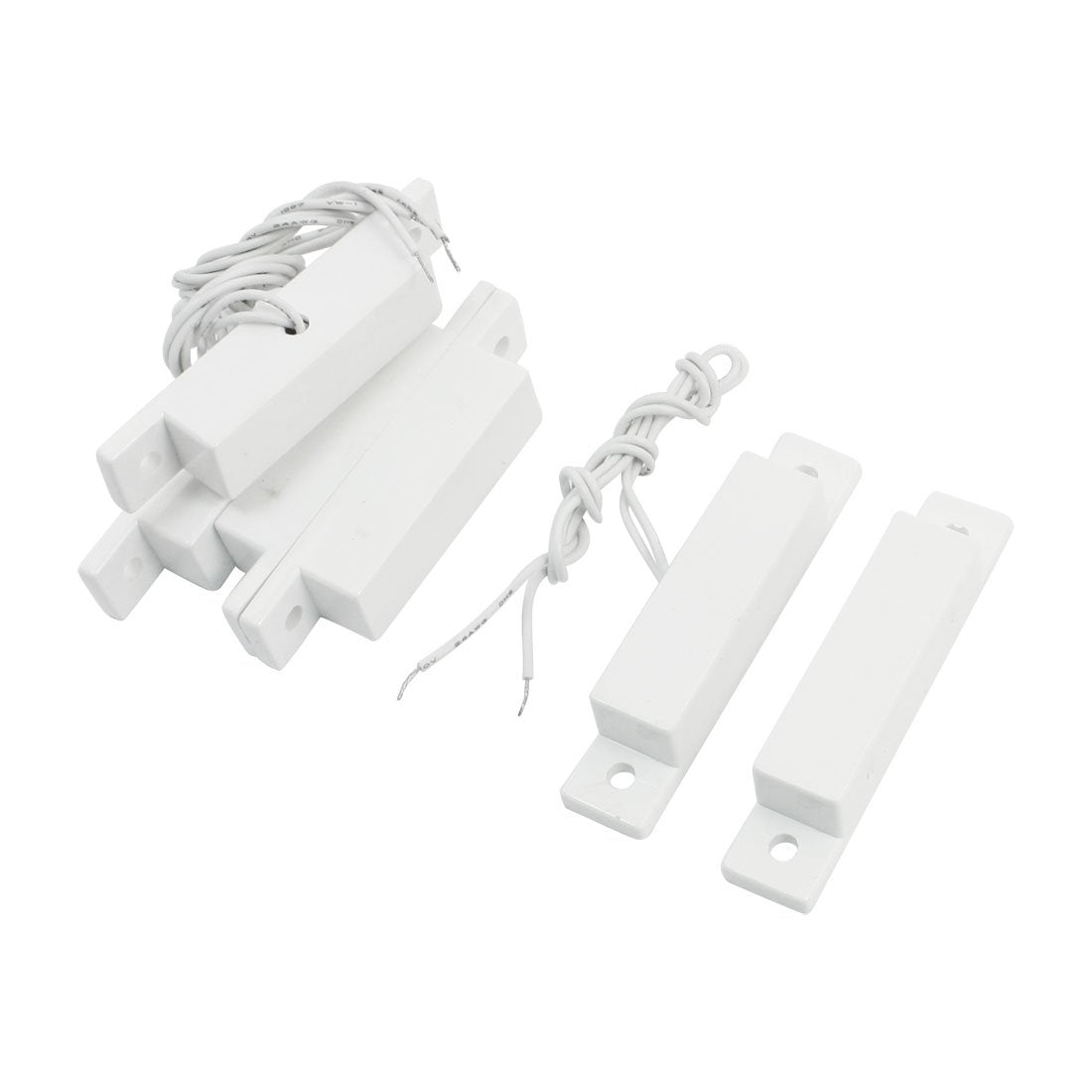

3PCS NC Normally Close 15-25mm Magnetic Door Window Contact Reed Switch

Key Features

• Product Name Magnetic DoorContactReed Switch;Contact Type NC Normally Close;Contact Capacity 0.5A(Maximum Switch Current)
• Voltage DC 100V;Rated Power 10W;Gap 15-25mm
• Each Size(Approx) 64 x 13x 13mm / 2.5" x 0.51" x 0.51"(L*W*H);Mounting Hole Dia. 4mm/ 0.16";Wire Length(Each) 27cm/ 10.6"
• Color White;Housing Material ABS
• Weight 59g;package Content 3PCSx Magnetic DoorContactReed Switch12 x Installation Screws

Product Description

Screw surface mount contact, white ABS housing. 27cm long wire lead that is side mounted. Comes with twelve installation screws.NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). When make order,pls check carefully!
