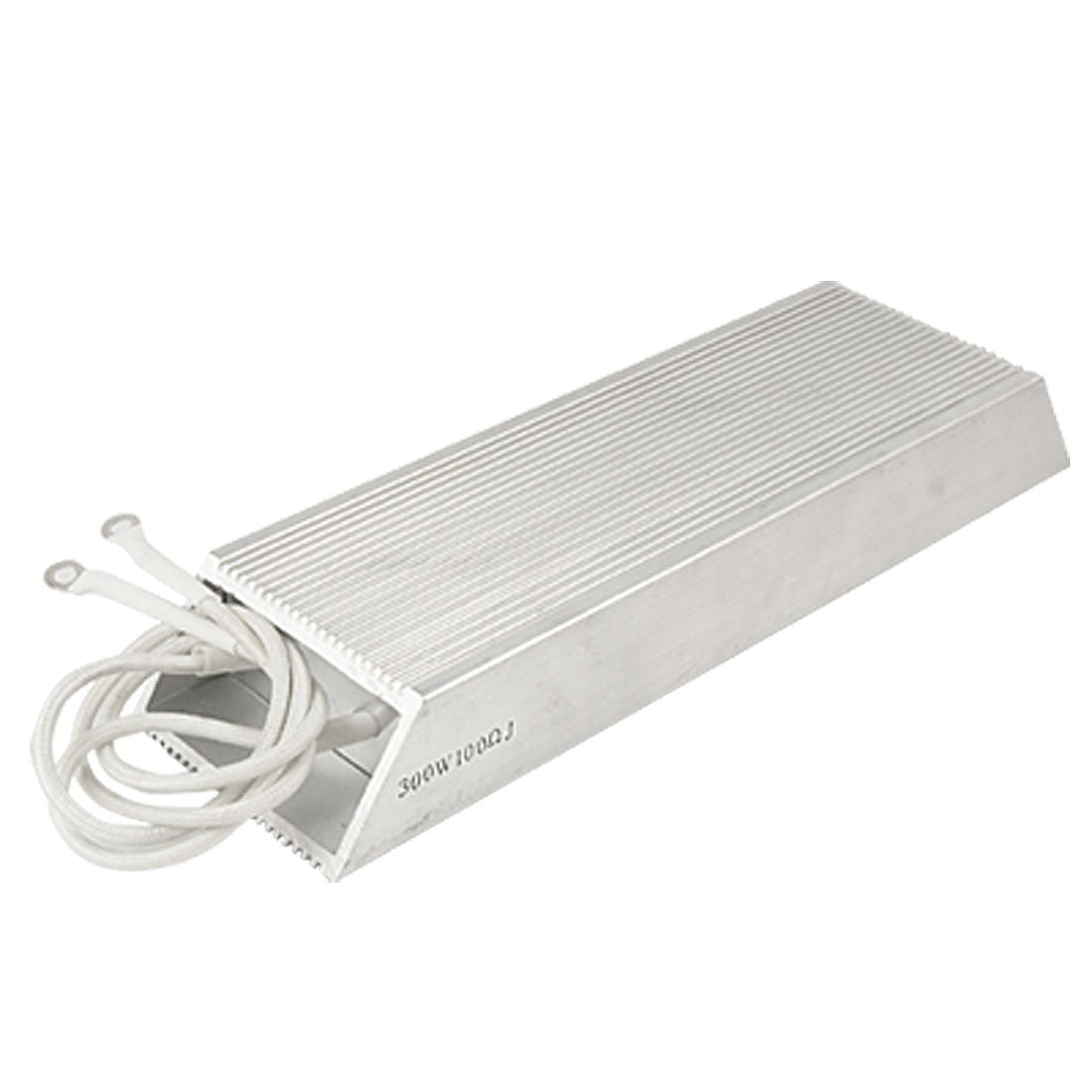

300 Watt Aluminum Housing Wirewound Braking Resistor

Key Features

• Product Name Braking Resistor;Resistance Value 100 Ohm;Rated Power 300W
• Overall Size(Approx) 21.8 x 6 x 3cm / 8.6" x 2.4" x 1.2"(L*W*T);Cable Size 30 x 0.3cm / 11.8" x 0.118"( L*OD)
• Installing Holes Size(Approx) 1.2 x 0.6cm / 0.472" x 0.236"(L*W);Terminals Size(Approx) 0.74 x 0.4cm / 0.291" x 0.157"(OD*Inner D)
• External Material Aluminum;Color Silver Tone
• Net Weight 614g;Package Content 1 x Braking Resistor

Product Description

Widely used in power supply, transducer, elevator and so on. Aluminum Housed surface with good performance in heat , suitable for cooling plate installation, can be used in the atrocious environment. Nylon wrapped wire with Solder Lug Terminals.

Specifications
