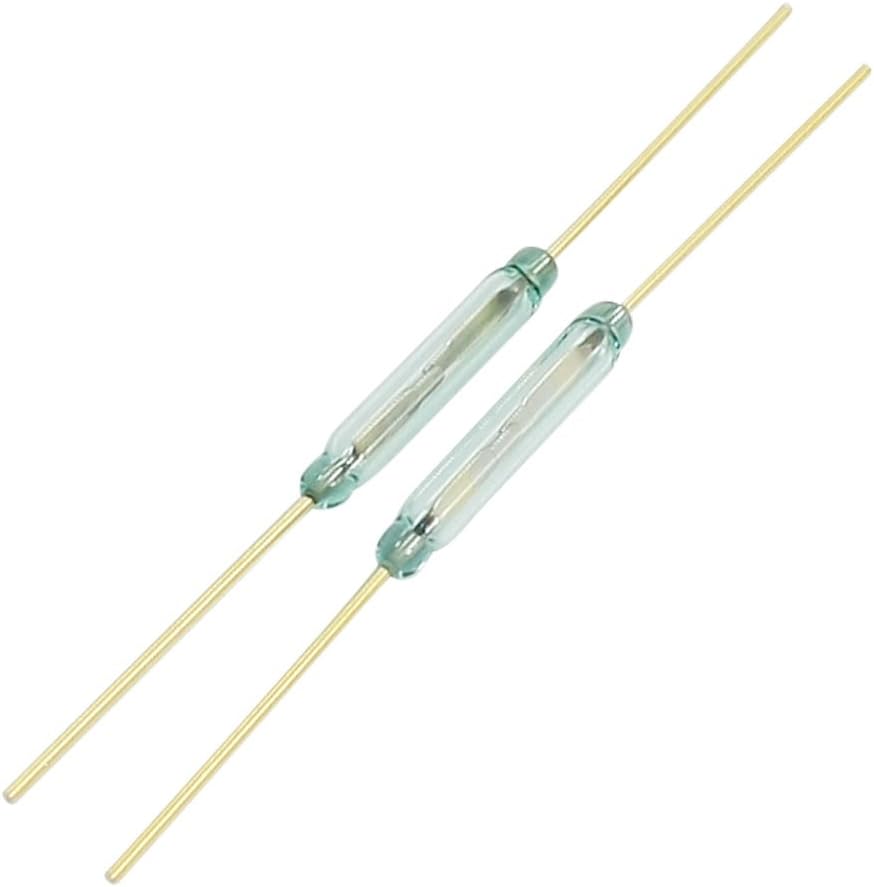

2Pcs Clear Glass Sealed Axial Leading Reed Switch DC100V 0.5A MKA14103

Key Features

• Product Name Reed Switch;Model MKA14103;Contact Type NO(Normal Open);Max. Contact Rating 10W
• Max. Switching Voltage DC 100V;Max. Switching Current 0.5A;Max. Carry Current 1.0A;Min. Breakdown Voltage DC 220V
• Max. Initial Contact Resistance 100mOhm;Min. Insulation Resistance 100Ohm;Max. Release Time 0.4ms;Max.OperateTime 1ms
• Pull in Value 11-15AT;Lead Terminal Size(Each Side) 16 x 0.4mm/ 0.63" x 0.2" x 0.16" (L*W*H);Tube Size (Approx.) 14 x 2mm/ 0.57" x 0.08"(L*D);Total Length (Approx.) 44mm/1.7"
• Material Glass, Metal;Color Gold Tone, Black;Weight 1g;Package Content 2Pcs x Reed Switch

Product Description

Reed switch pipe can be used as a sensor, counter, limit and so on .Also mainly used in door magnetic, magnetic window in the security system .The reed switch application to mobile phone, program-controlled switches, duplicator, washing machines, refrigerators, cameras, kitchen cupboards, magnetic door, magnetic window, electromagnetic relays, electronic weighing apparatus, level meter, gas meter, water meter
