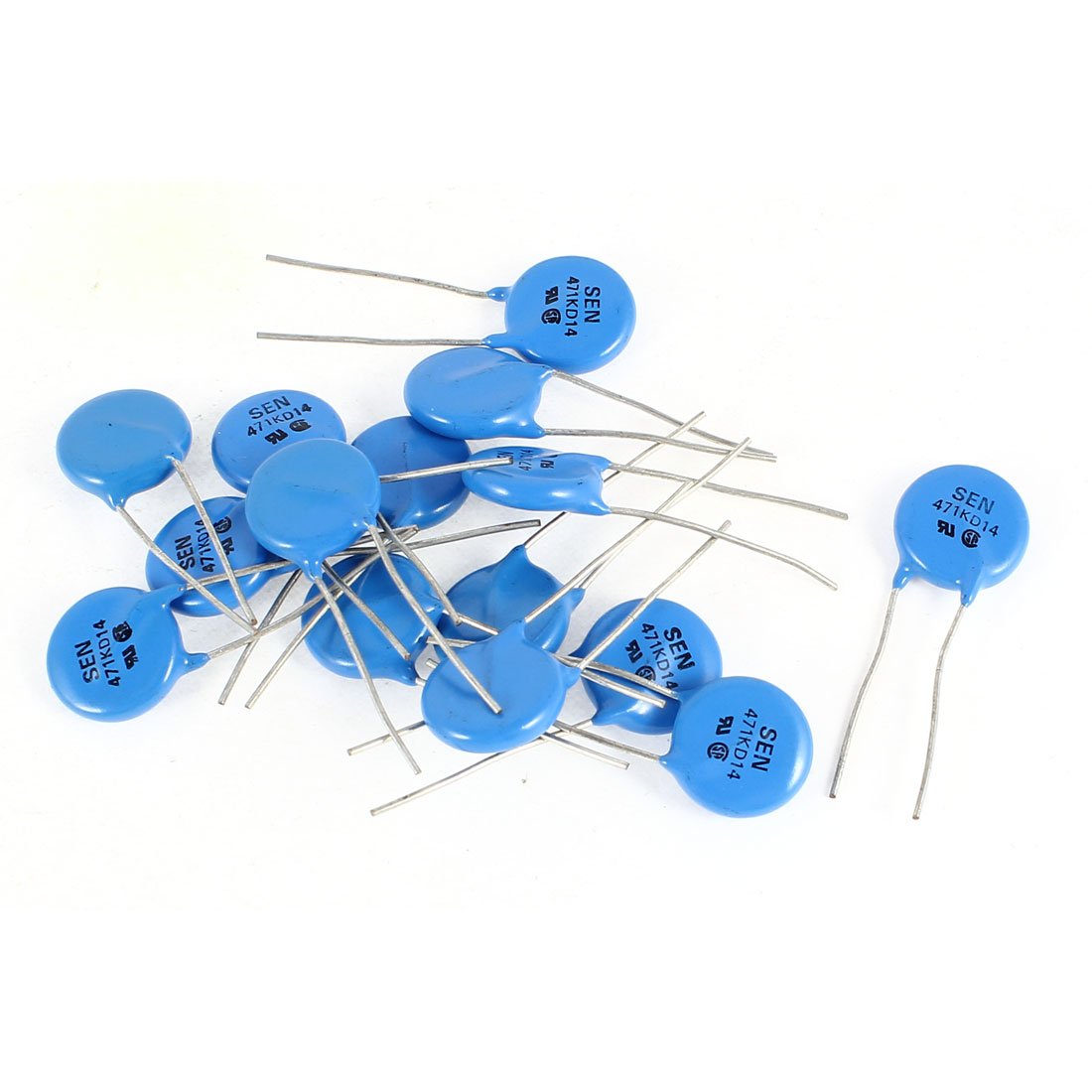

15 Pcs Radial Lead Voltage Dependent Resistors Varistors 471KD14 470V

Key Features

• Prodcut Name Voltage Dependent Resistor;Model 471KD14;Varistor Voltage 470V
• Max. Allowable Voltage(rms) AC 300V;Max. Allowable Voltage(DC) DC 385V
• 8/20us Current 4500A;Max. Power 0.6W
• Body Size 14 x 3mm/0.55" x 0.1"(D*T);Lead Size 1 x 27mm/0.04" x 1.1" (D*L)
• Weight 40g;Package Content 15 x Voltage Dependent Resistor

Product Description

Epoxy coated disc construction with radial leads.The Voltage Dependent Resistor is desinged to prrotect equipments against transient voltage spikes.Connected directly across the power supply rails, when a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state while in standby mode, to a very low level, permitting absorbtion of the unwanted high voltage and protecting voltage sensitive components and circuits from damage.
