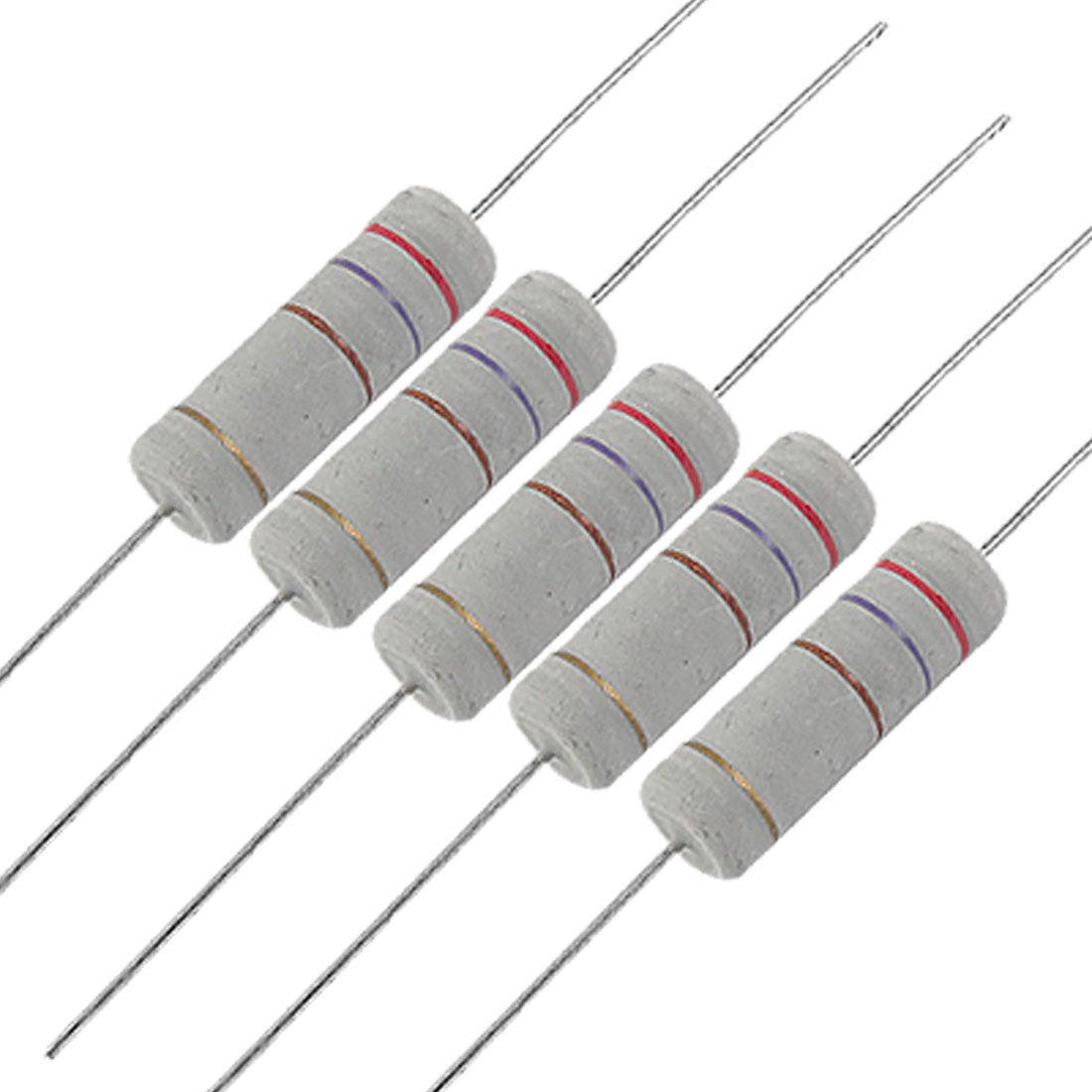

10 x 5W 700V 270ohm Axial Lead Metal Oxide Film Resistors

Key Features

• Product Name Metal Oxide Film Resistor;Features Axial Lead;Power Rating 5W
• Resistance Tolerance ± 5%;Withstand Voltage 700V
• Resistance 270Ω;Lead Size (Each End) 30 x 0.5mm / 1.18" x 0.019" (L*D)
• Body Size 24 x 7.3mm / 0.94" x 0.287" (L*D)
• Weight 37g;Package Content 10 x Metal Film Resistors

Product Description

Features

270 ohm Resistance, 5W Rating Power, 700V Withstand Voltage, +/-5% Resistance Tolerance, 4-Band Color Code, Metal Oxide Film Resistors; Axial lead through hole mounting for easy installation. low noise, stable performance, high frequency and high accuracy; Metal oxide film resistors result in a higher operating temperature and greater stability/ reliability than metal film resistors, and are used in applications with high endurance demands.
