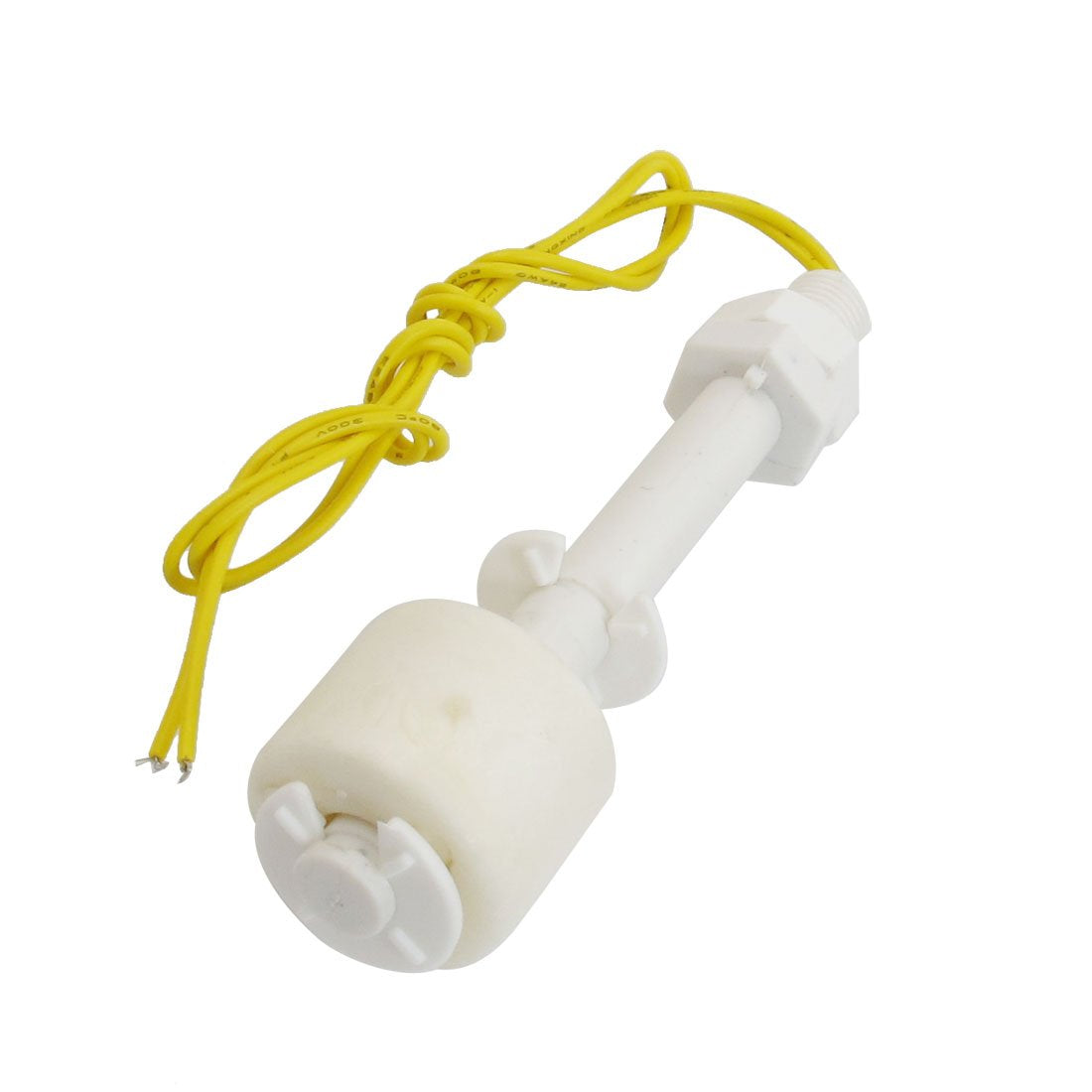

0.35 Amp PP Tank Liquid Water Level Sensor Float Switch

Key Features

• Product Name Water Level Sensor; Model No. ZP3508-P; Contacts NO+NC; Max Contact Rating Max Contact Rating; 10W 10W
• Max Switching Voltage 100V DC; Max Switching Current 0.5A; Max Breakdown Voltage 220V DC; Max Carry Current 1.0A; Max Contact Resistance 100mÎ
• Temperature Rating -10 - +60C / +85C; Float Ball Material PP; Float Body Material PP; Float Ball Size(Approx.) 17 x 19mm / 0.669" x 0.748"(L*D)
• Thread Dia(Approx.) 7.5mm / 0.295"; Hex Nut Size(Approx.) 17.5mm / 0.689"; Bottom Clip Dia(Approx.) 13.4mm / 0.527"; Body Total Length 46.4mm / 1.8"
• Cable Length 36cm / 14.2"; Color White; Net Weight 10g; Package Content 1 x Water Level Sensor

Product Description

About this item Product Name : Water Level Sensor; Model No. : ZP3508-P; Contacts : NO+NC; Max Contact Rating : Max Contact Rating; 10W : 10W Max Switching Voltage : 100V DC; Max Switching Current : 0.5A; Max Breakdown Voltage : 220V DC; Max Carry Current : 1.0A; Max Contact Resistance : 100mÎ Temperature Rating : -10 - +60C / +85C; Float Ball Material : PP; Float Body Material : PP; Float Ball Size(Approx.) : 17 x 19mm / 0.669" x 0.748"(L*D) Thread Dia(Approx.) : 7.5mm / 0.295"; Hex Nut Size(Approx.) : 17.5mm / 0.689"; Bottom Clip Dia(Approx.) : 13.4mm / 0.527"; Body Total Length : 46.4mm / 1.8" Cable Length : 36cm / 14.2"; Color : White; Net Weight : 10g;

Package Content

1 x Water Level Sensor ›
