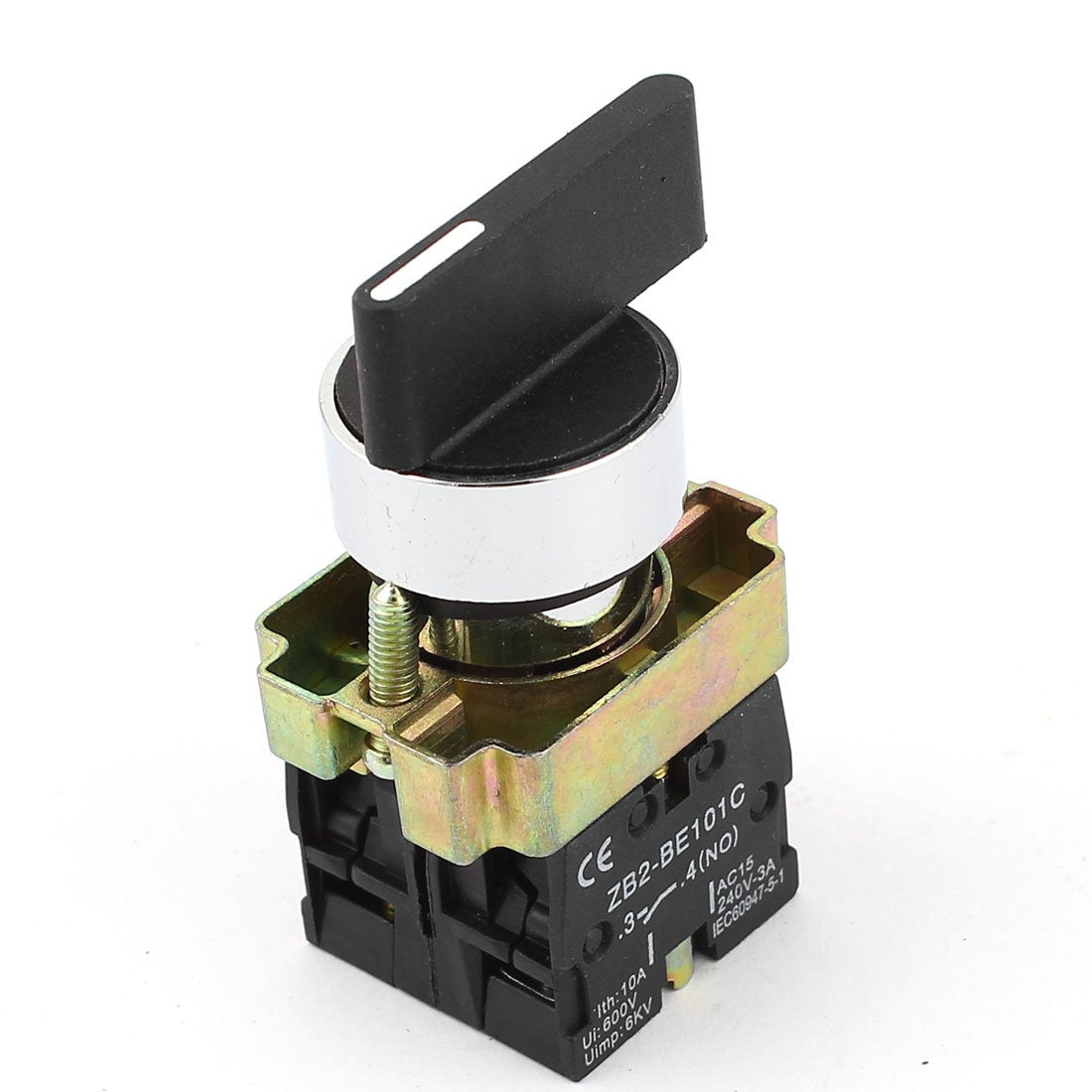

ZB2-BE101C 21 mm DPST 3Position Latching Rotary Select Switch 600V 10A

Key Features

• Product Name Rotary Switch;Mode ZB2-BE101C;Contact Type 2NO(DPST);Action Type Latching Rotary Selector
• Position Number 3 Position;AC-15 AC 240V 3A;Ui & Ith AC 600V 10A
• Uimp 6KV;Terminal Quantity 4;Thread Diameter 21mm / 0.83"
• Fit Panel Max. Thickness 7mm / 0.28";Total Size(Approx) 4 x 3 x 6.9cm / 1.6" x 1.2" x 2.8" (L*W*H);Color Black
• External Material Plastic, Metal;Weight 76g;Package Content 1 x Rotary Switch

Product Description

Features

2no(dust) contact Type, 3 position rotary selector action, 25mm panel cutout diameter. Widely used to control the electromagnetic starter, Contactor, relay and other automatic control electric circuits.

Specifications
