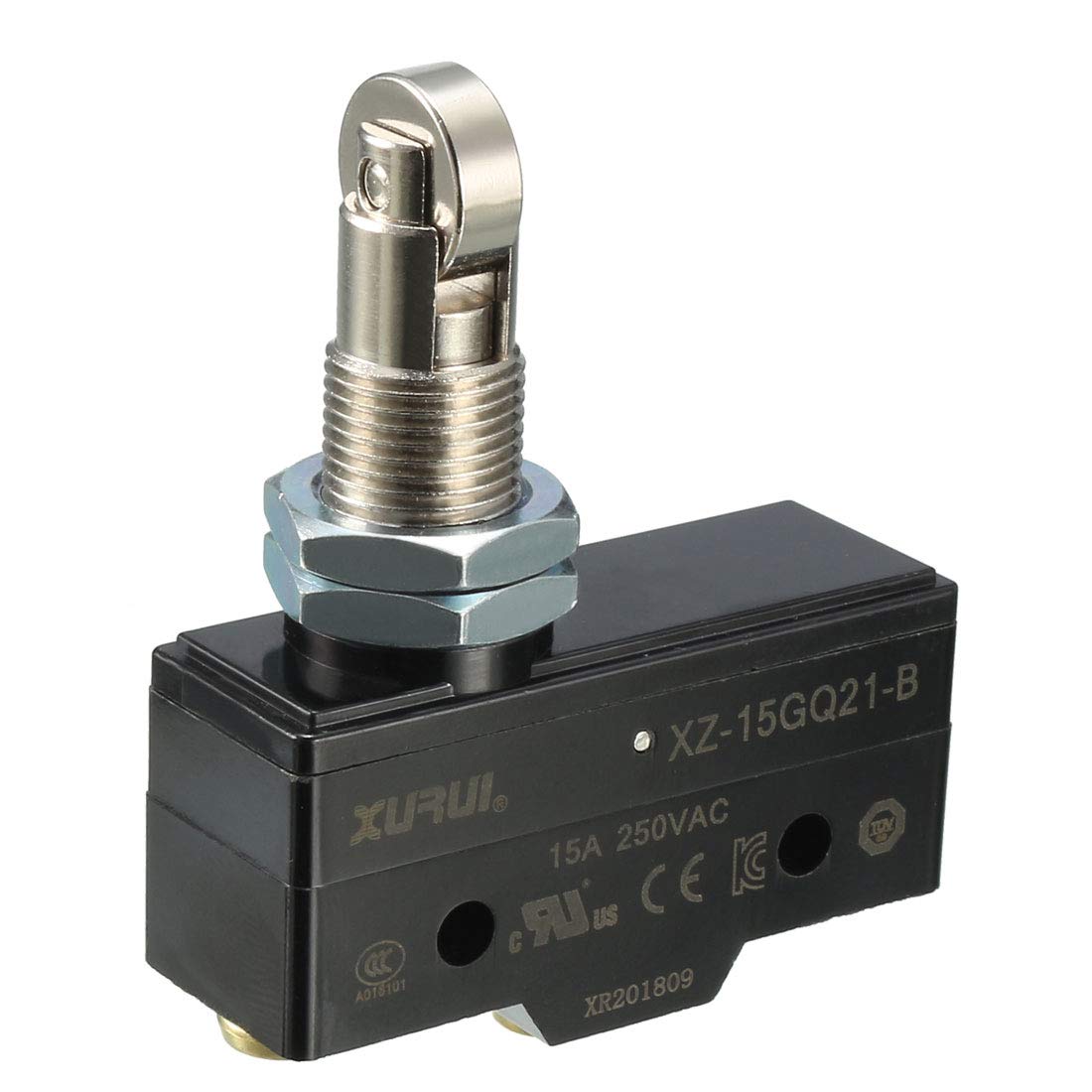

XZ-15GQ21-B SPDT NO+NC Panel Mount Roller Plunger Type Micro Limit Switches with Screw Terminals
Key Features
- Rating 15A 250VAC
- OF max. 350-450g Force min. 114g PT max. 0.5mm OT min. 4.0mm Movement Differential max. 0.1mm Operating Position 32.1+/-1.2mm
- Contact Form SPDT NO+NC
- Operation speed 0.1mm-1m/s
- Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool , etc.
Product Description
FeaturesAdopt phenolic plastic or thermoplastic;Offers long service and operations life.Small contact gap, snap action, high sensitivity and small operating travelWidely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc. SpecificationRating: 15A 250VACOF max. 350-450g Force min. 114gPT max. 0.5mmOT min. 4.0mmMovement Differential max. 0.1mmOperating Position 32.1+/-1.2mmContact Form: SPDT NO+NCTerminal number: 3Operation speed: 0.1mm-1m/sInsulation resistance: 100m Ohm Above DC500VContact resistance: 25m Ohm initial valueLife: 100000 times above(Electrical); 1000000 times above(Mechanical)Protection degree: IP40Operating temperature: -25~+80°CCertification: UL/CE/Overall size: 50x62x17mm/1.97x2.44x0.67inch(L*W*H)Total weight: 58g Package Content1 x Micro Switch
Specifications
| Product Dimensions | 3.15 x 1.97 x 1.57 inches |
